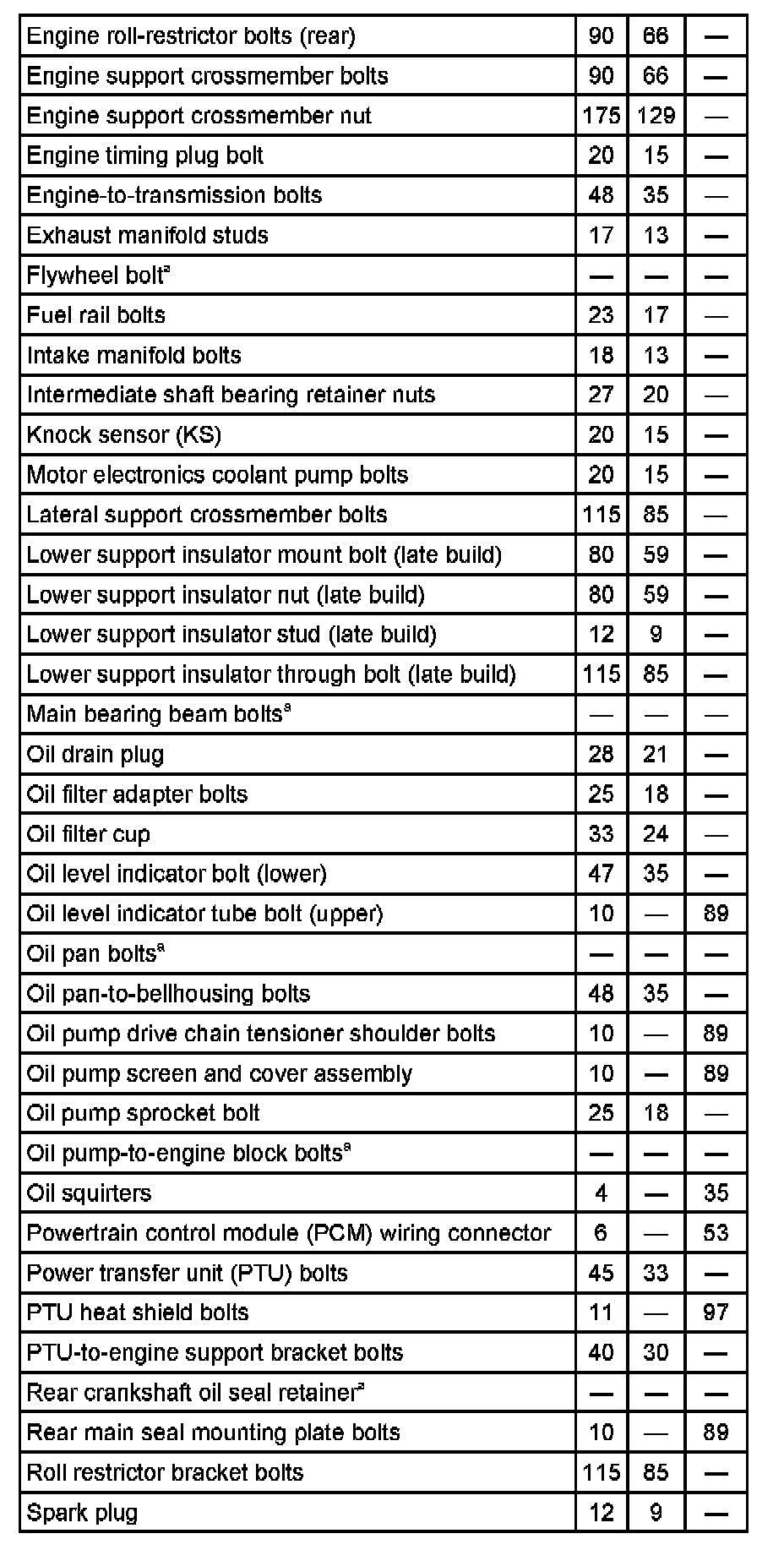

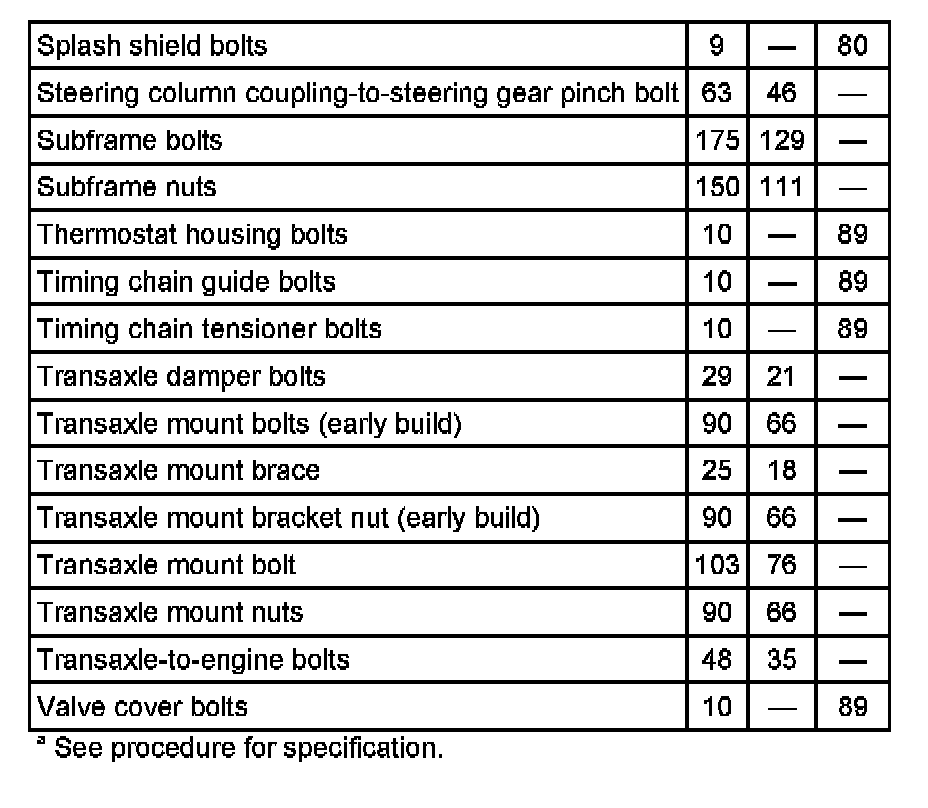

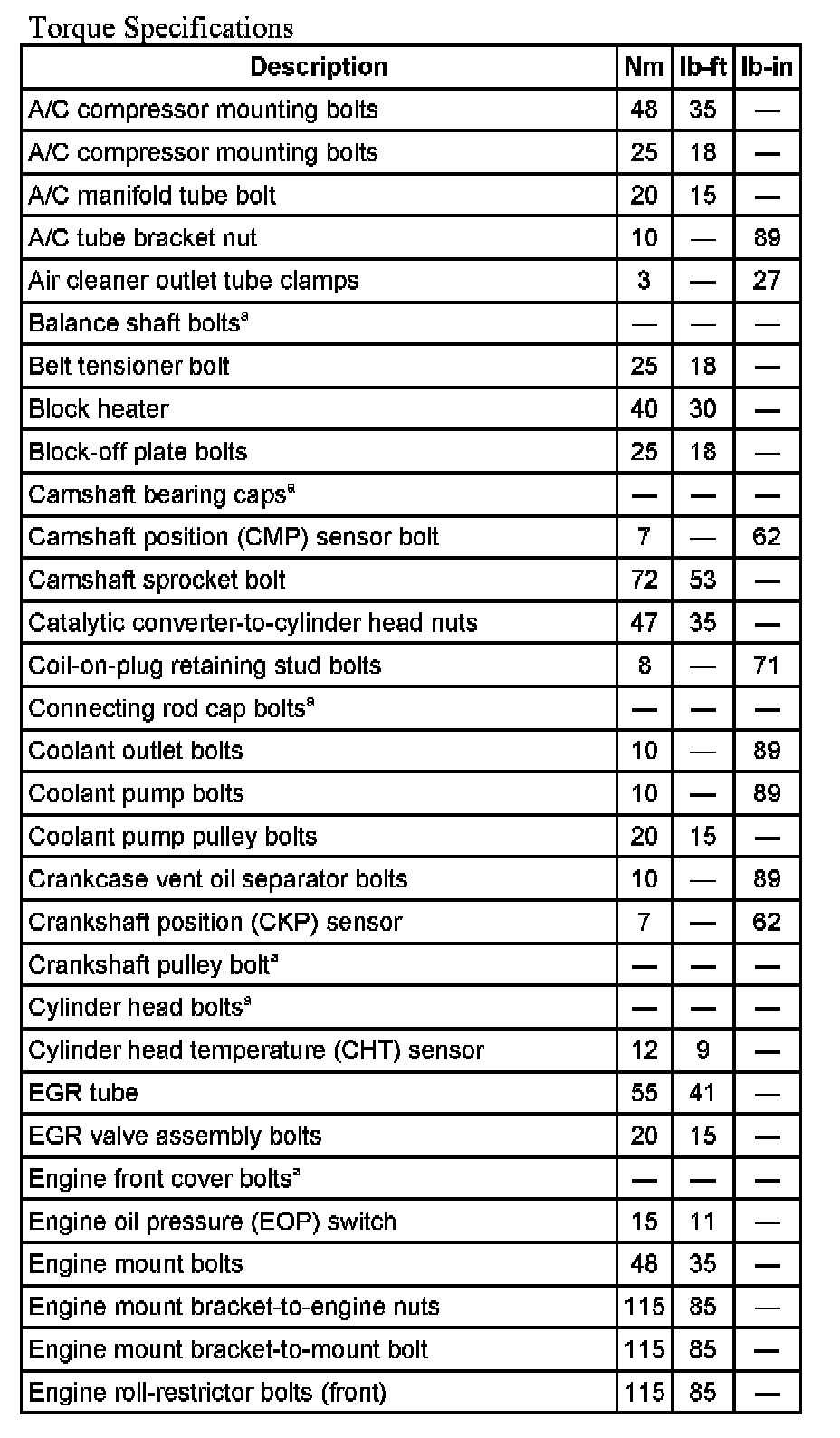

Torque Specifications
Torque Specificationsa = See procedure for specification.Cylinder Head Bolts The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

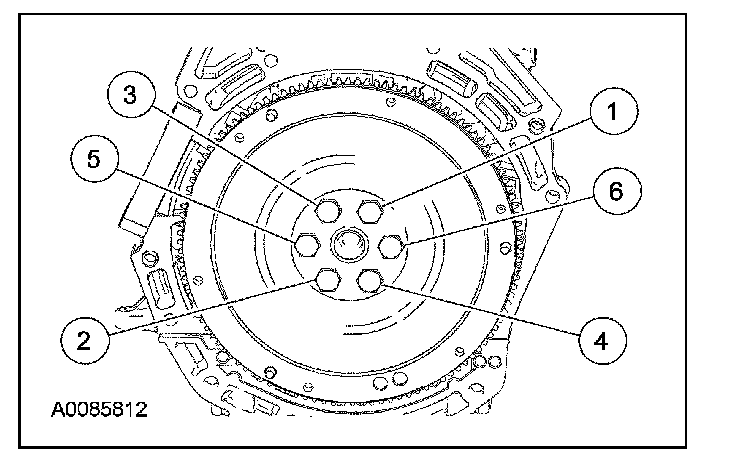

Flexplate Bolts NOTE: Special bolts are used for installation. Do not use standard bolts.
First pass
50 Nm (37 lb-ft).
Second pass
80 Nm (59 lb-ft).
Final pass
112 Nm (83 lb-ft).
