Transmission Mount: Service and Repair

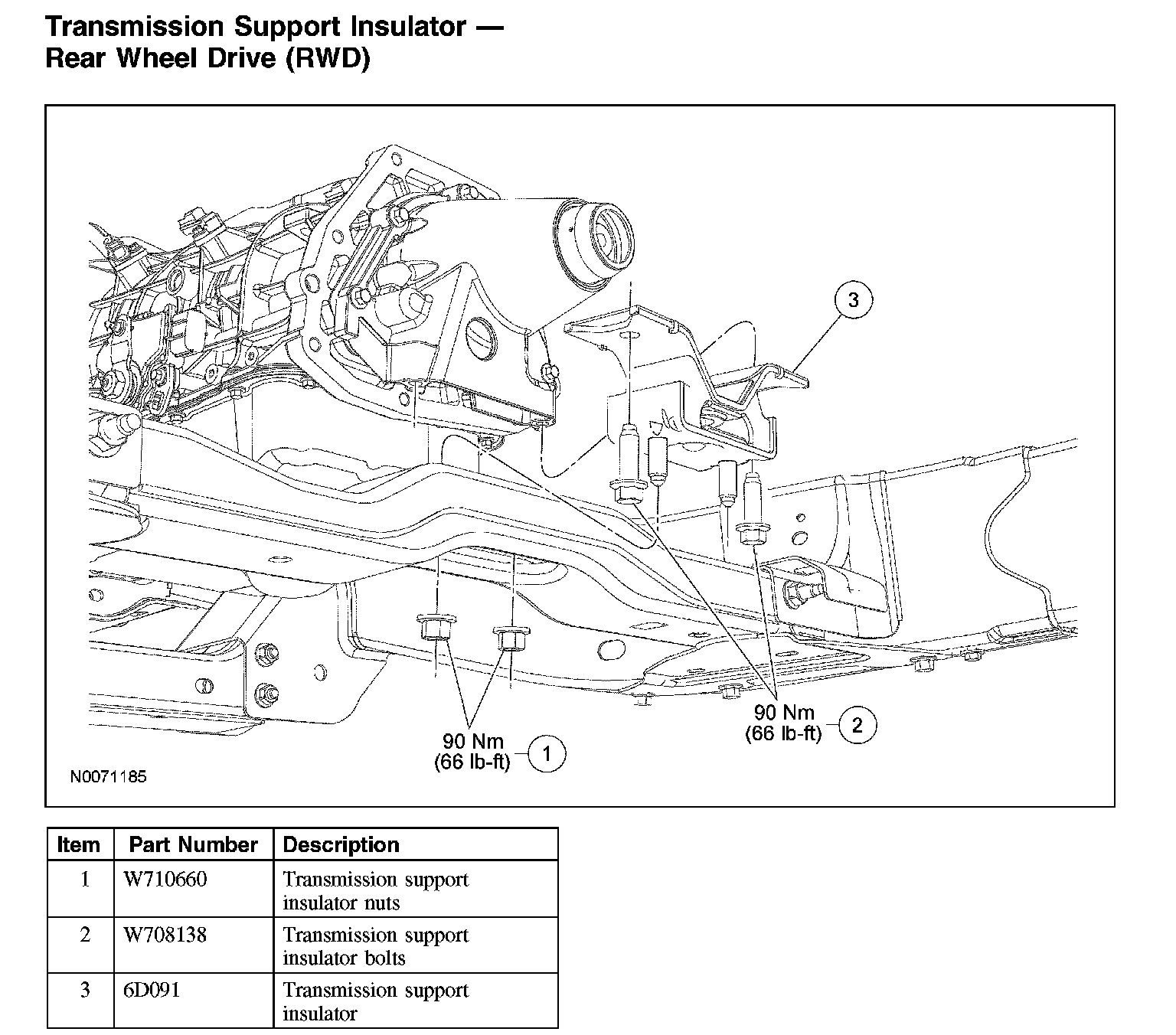

Transmission Support Insulator - Rear Wheel Drive (RWD)

Transmission Support Insulator - Rear Wheel Drive (RWD):





Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Support the transmission with a transmission jack.
3. Remove the 2 transmission support insulator nuts.





4. Remove the 2 transmission support insulator bolts.

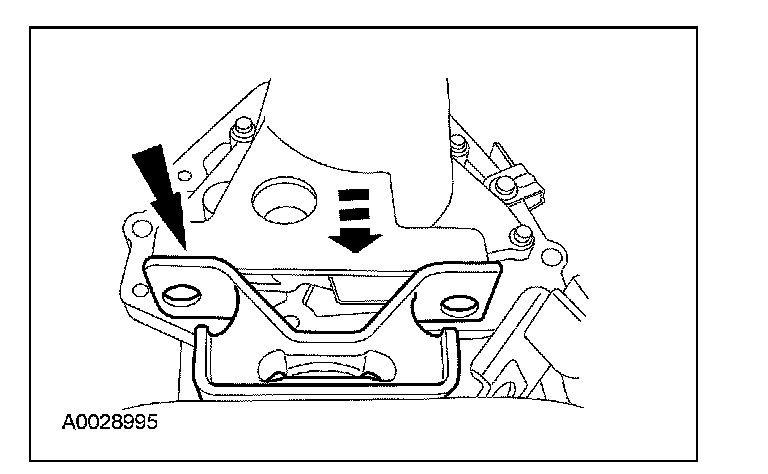

5. Raise the transmission and remove the transmission support insulator.





Installation

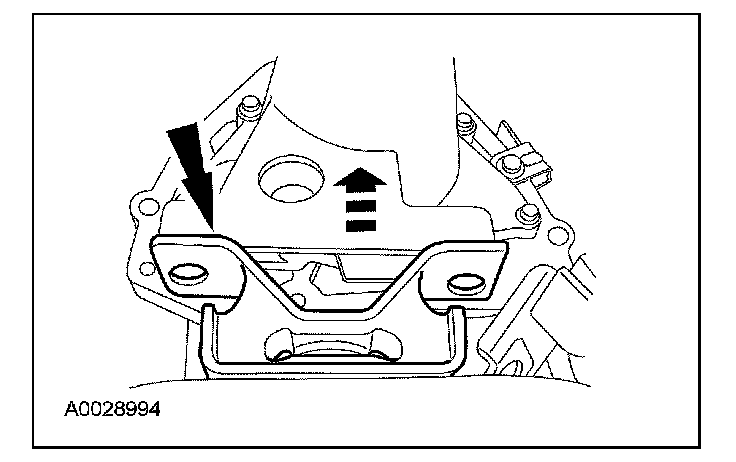

1. Install the transmission support insulator and lower the transmission onto the transmission support insulator.





2. Install the 2 transmission support insulator bolts.
^ Tighten to 90 Nm (66 lb-ft).





3. Install the 2 transmission support insulator nuts.
^ Tighten to 90 Nm (66 lb-ft).
