Compressor To Condenser Discharge Line

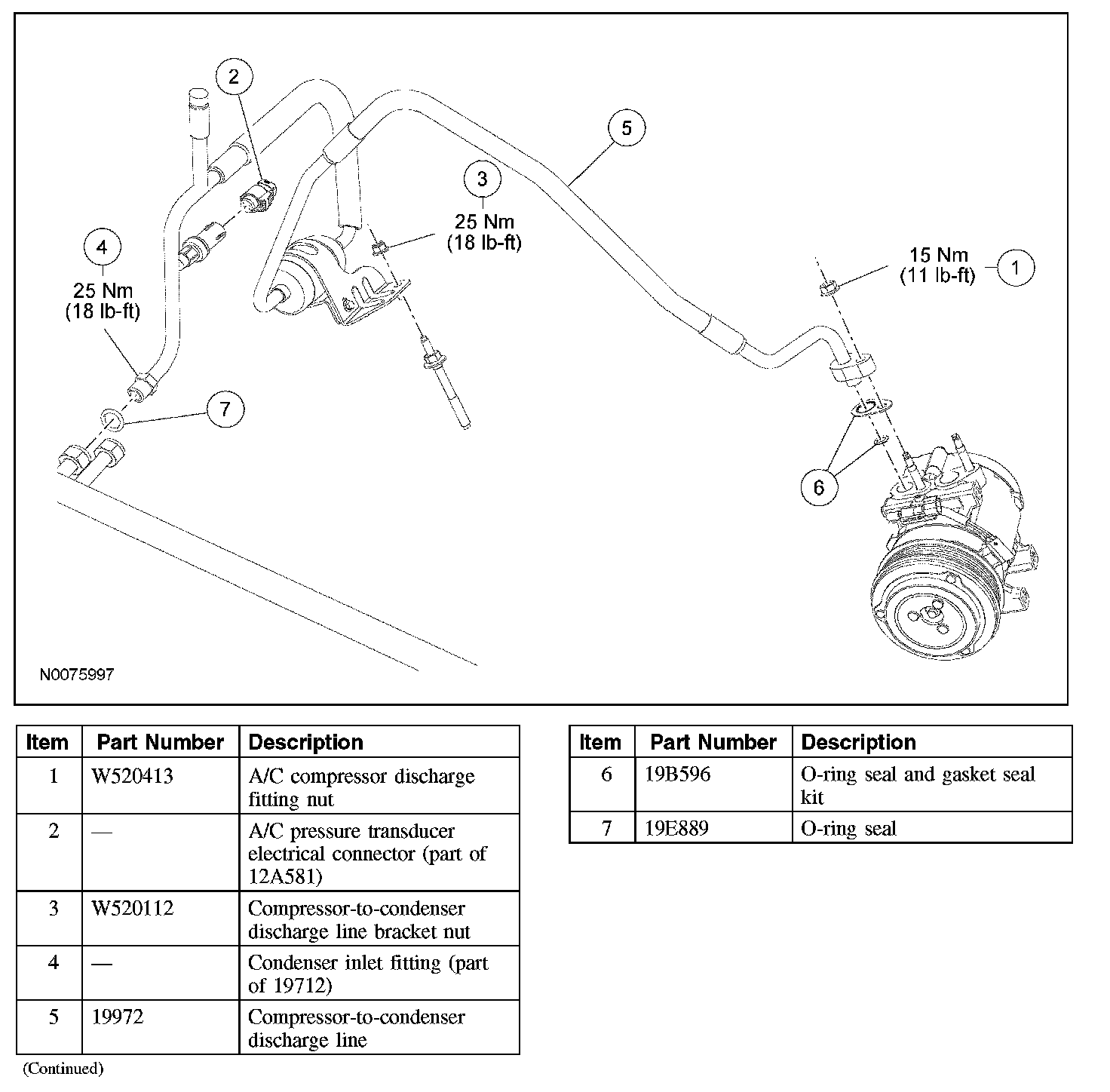

COMPRESSOR TO CONDENSER DISCHARGE LINE







Removal and Installation
1. Recover the refrigerant.
2. Remove the air cleaner outlet tube.
3. Remove the A/C compressor discharge fitting nut and disconnect the fitting.
- Discard the O-ring seal and gasket seal.
- To install, tighten to 15 Nm (11 lb-ft).

4. Disconnect the A/C pressure transducer electrical connector.
5. Remove the compressor-to-condenser discharge line bracket nut.
- To install, tighten to 25 Nm (18 lb-ft).

6. Disconnect the condenser inlet fitting.
- Discard the O-ring seal.
- To install, tighten to 25 Nm (18 lb-ft).

7. Remove the compressor-to-condenser discharge line.
8. To install, reverse the removal procedure.
- Install new gasket seal and new O-ring seals.
- Lubricate the refrigerant system with the correct amount of clean PAG oil.

9. Evacuate, leak test and charge the refrigerant system.
