Suction Accumulator To Compressor Line

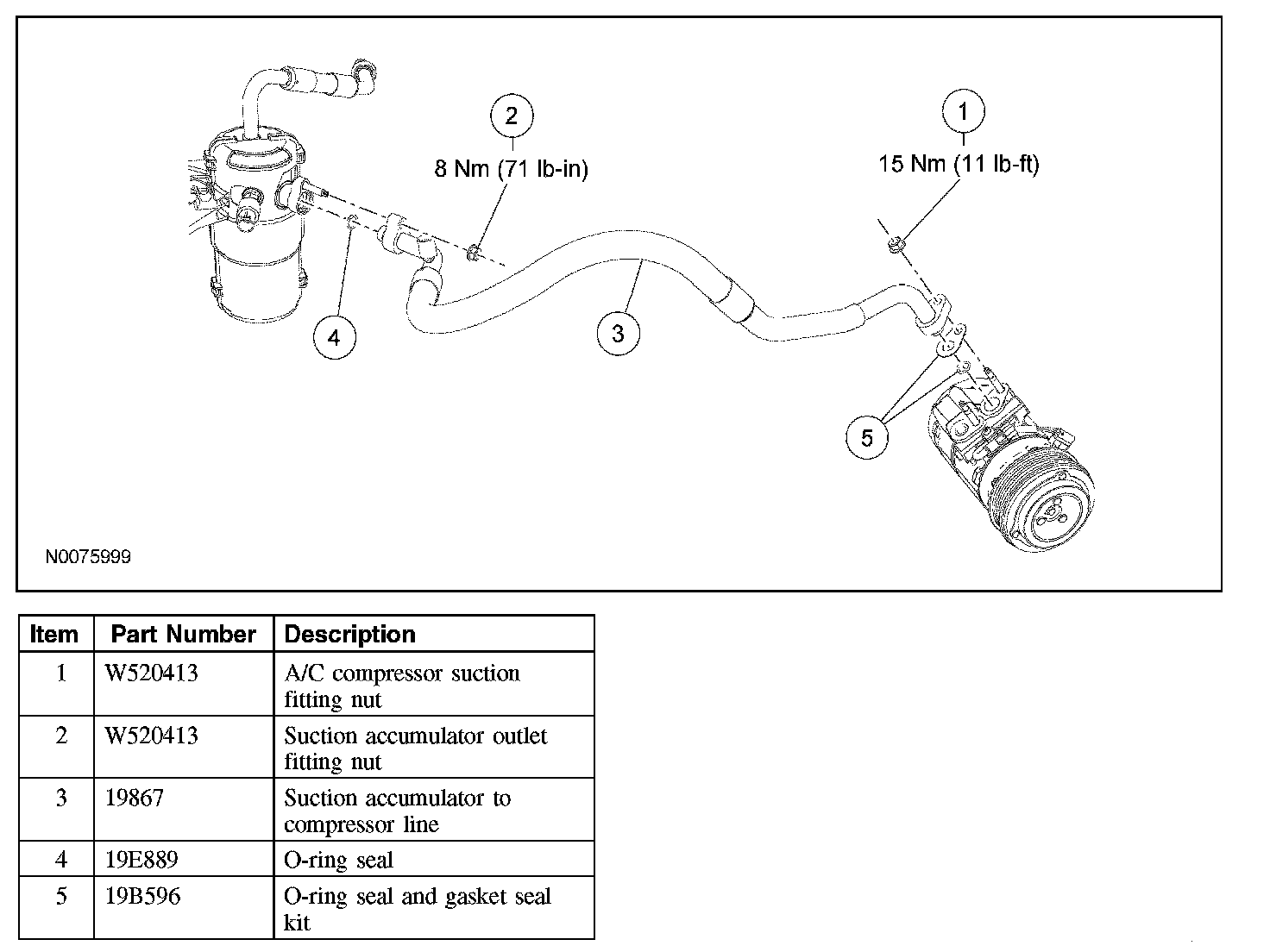

SUCTION ACCUMULATOR TO COMPRESSOR LINE







Removal and Installation
1. Recover the refrigerant.
2. Remove the A/C compressor suction fitting nut and disconnect the fitting.
- Discard the O-ring seal and gasket seal.
- To install, tighten to 15 Nm (11 lb-ft).

3. Remove the suction accumulator outlet fitting nut and disconnect the fitting.
- Discard the O-ring seal and gasket seal.
- To install, tighten to 8 Nm (71 lb-in).

4. Remove the suction accumulator-to-compressor line.
5. To install, reverse the removal procedure.
- Install a new gasket seal and O-ring seals.
- Lubricate the refrigerant system with the correct amount of clean PAG oil.

6. Evacuate, leak test and charge the refrigerant system.
