Air Cleaner Housing: Service and Repair

AIR CLEANER

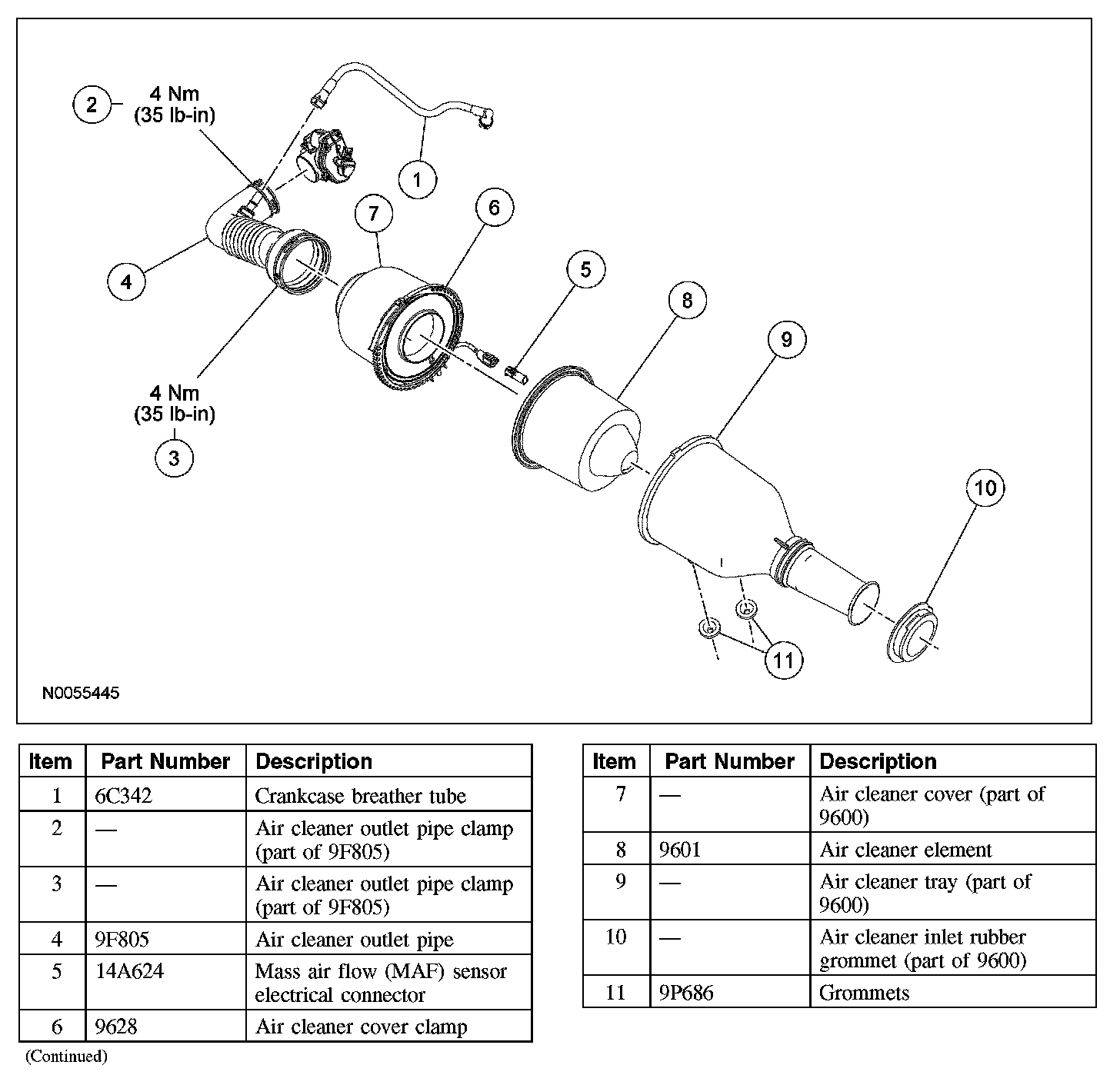

Exploded View

Removal and Installation
1. Loosen the clamp and disconnect the air cleaner outlet pipe from the air cleaner.
- To install, tighten to 4 Nm (35 lb-in).

2. Disconnect the mass air flow (MAF) sensor electrical connector. Detach the electrical connector retainer.
3. Lift the air cleaner from the grommets and remove the air cleaner.

4. NOTE: The air cleaner inlet rubber grommet must be seated flush against the inner fender prior to air cleaner tray installation.

Remove the air cleaner inlet rubber grommet.

5. To install, reverse the removal procedure.
