Test D: Speed Control Switch Stuck Or Circuit Failure

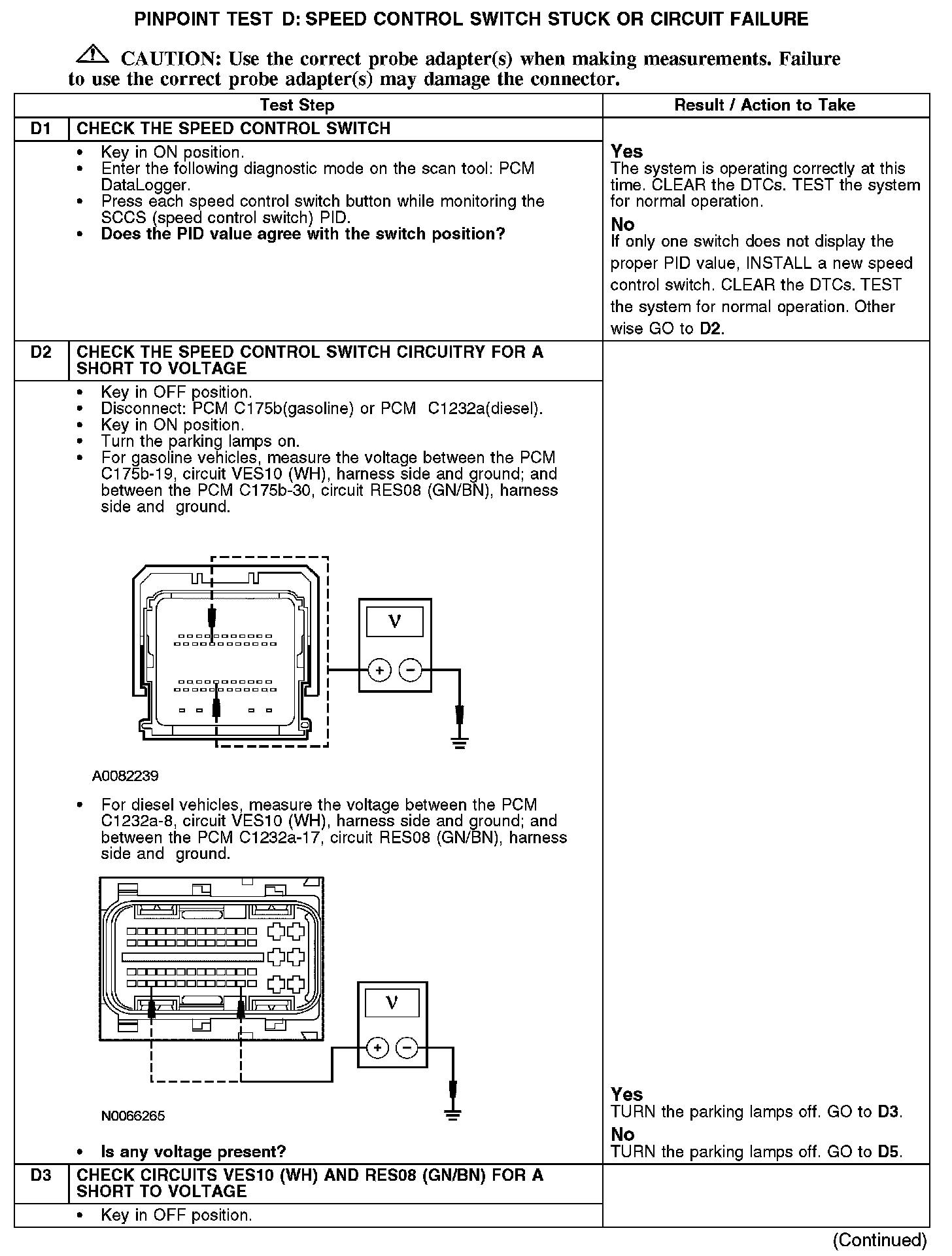

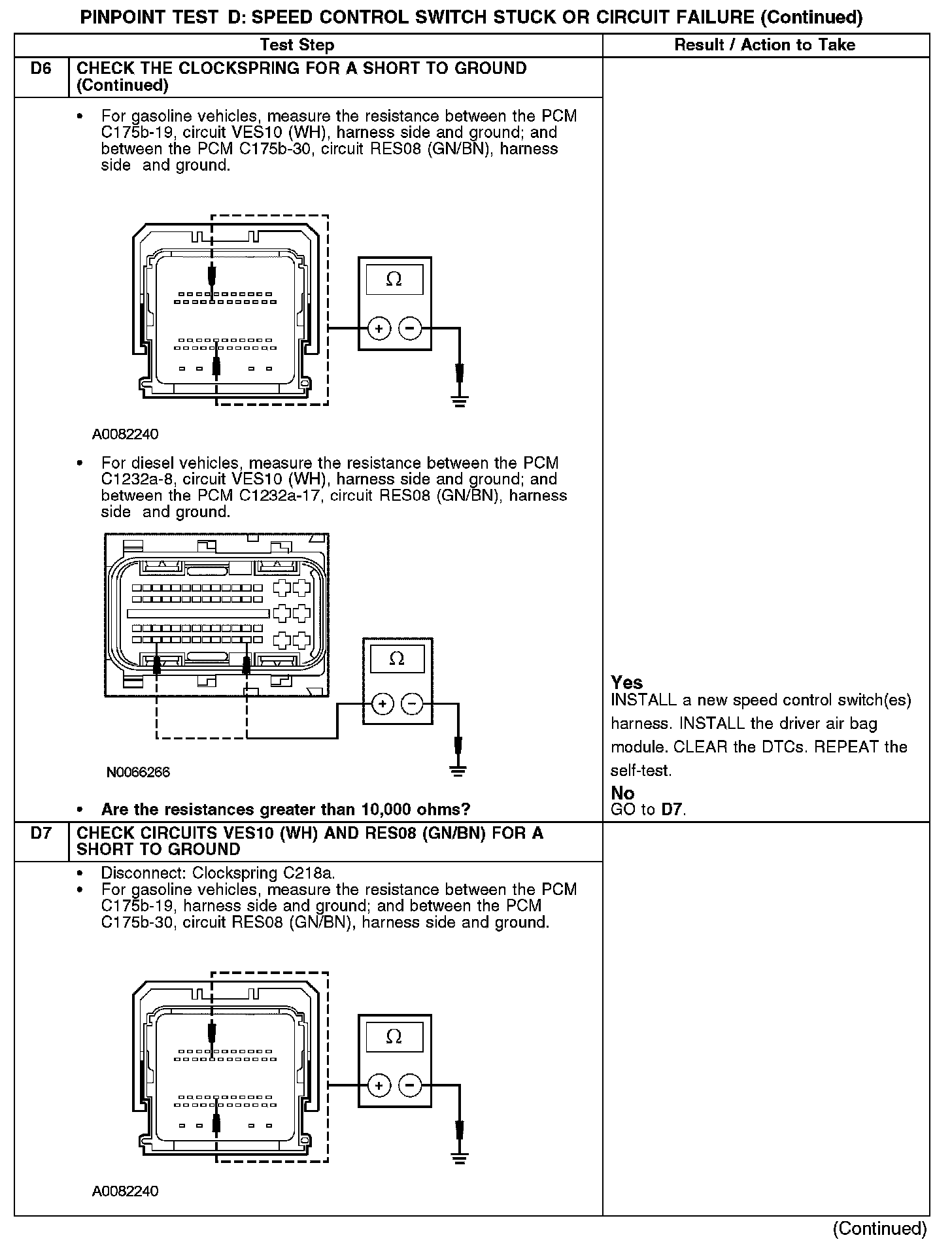

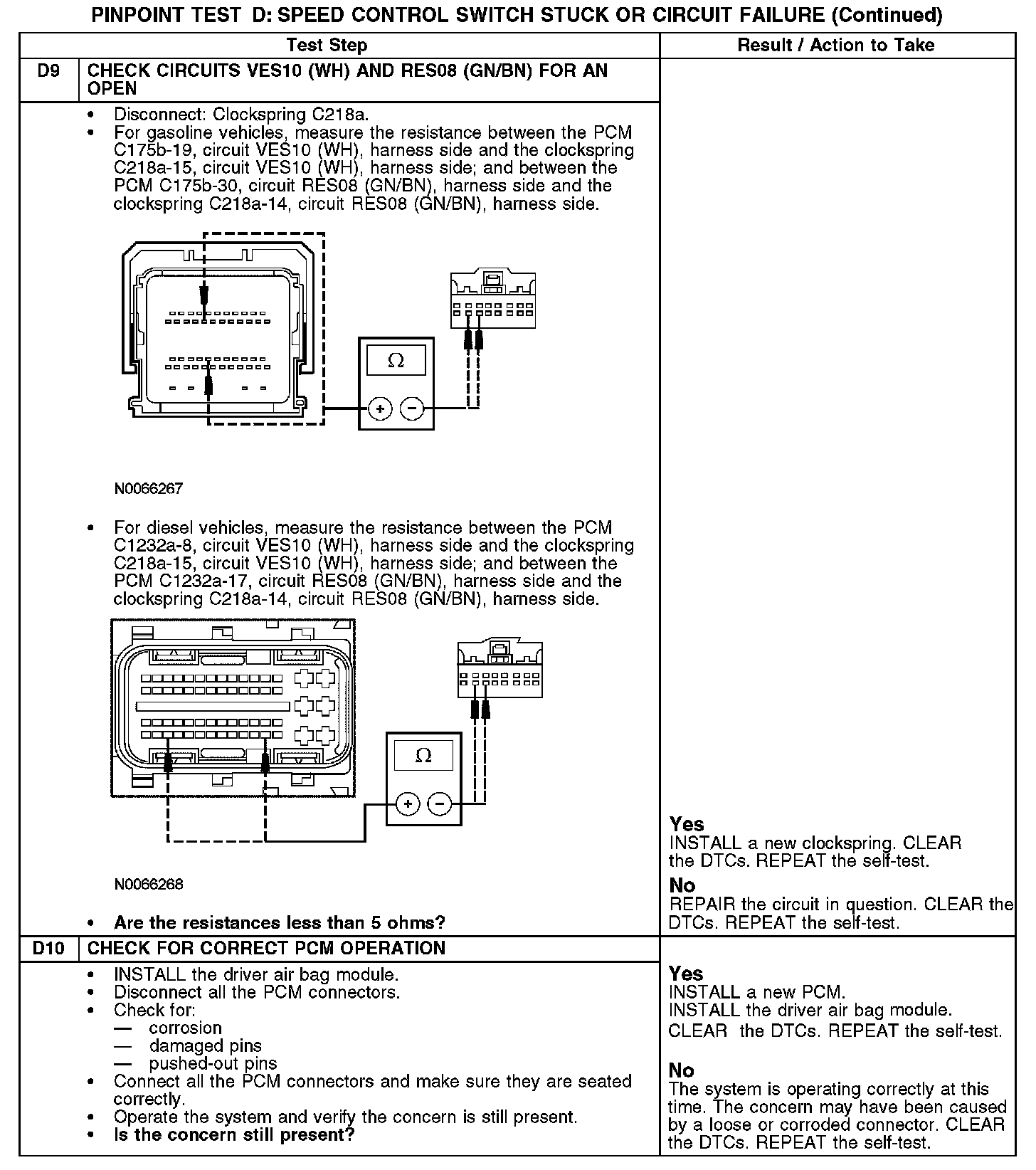

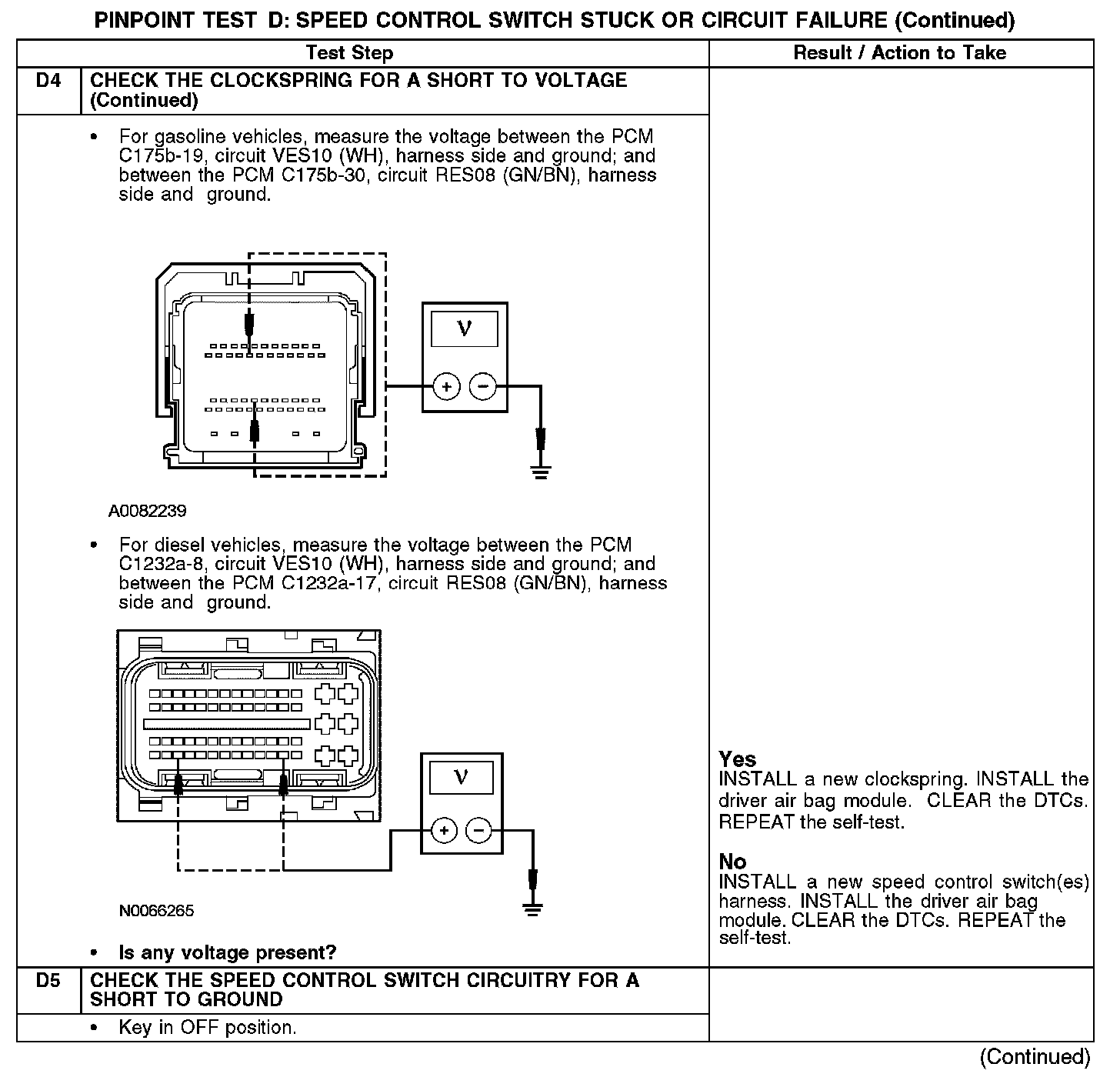

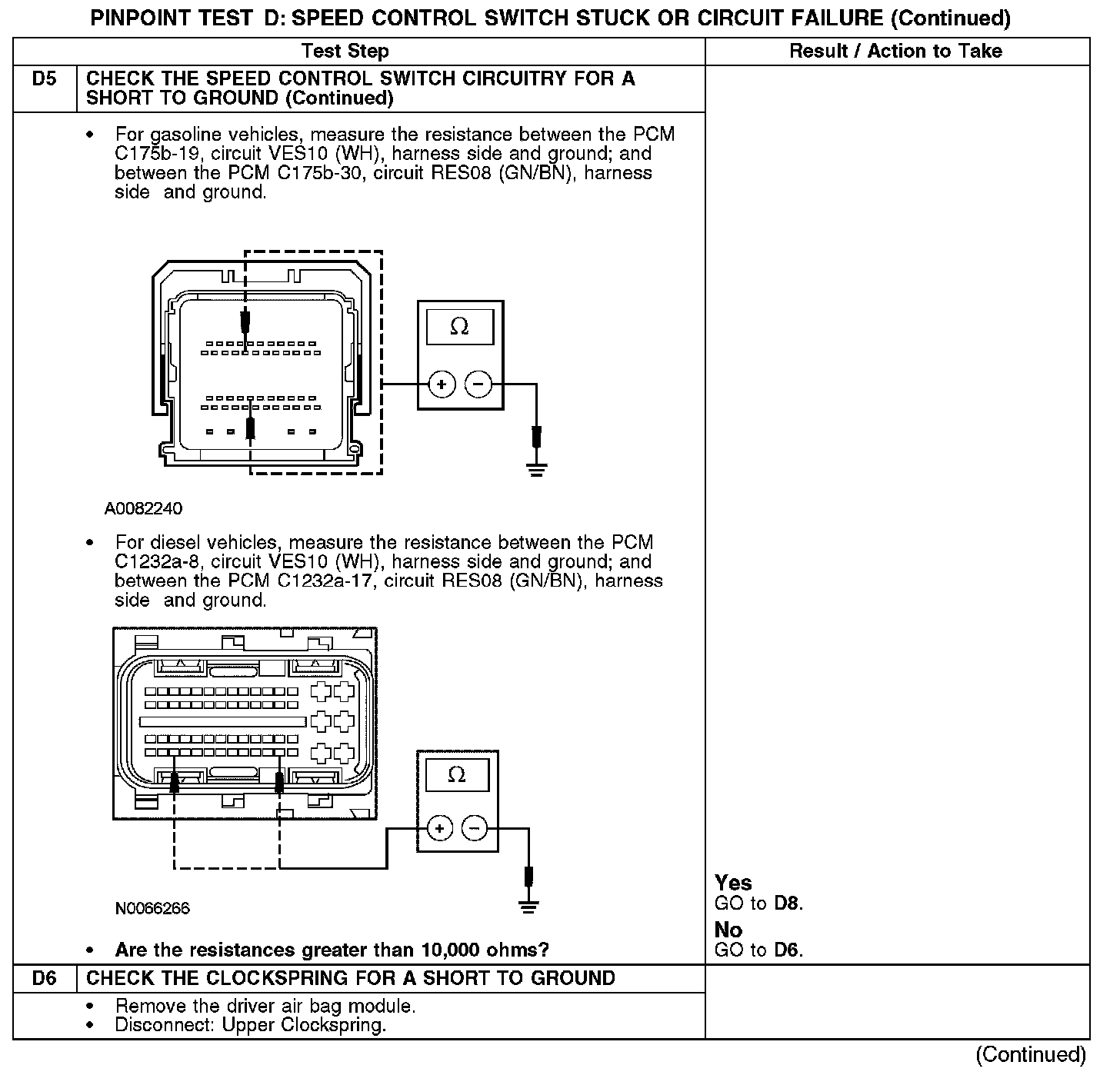

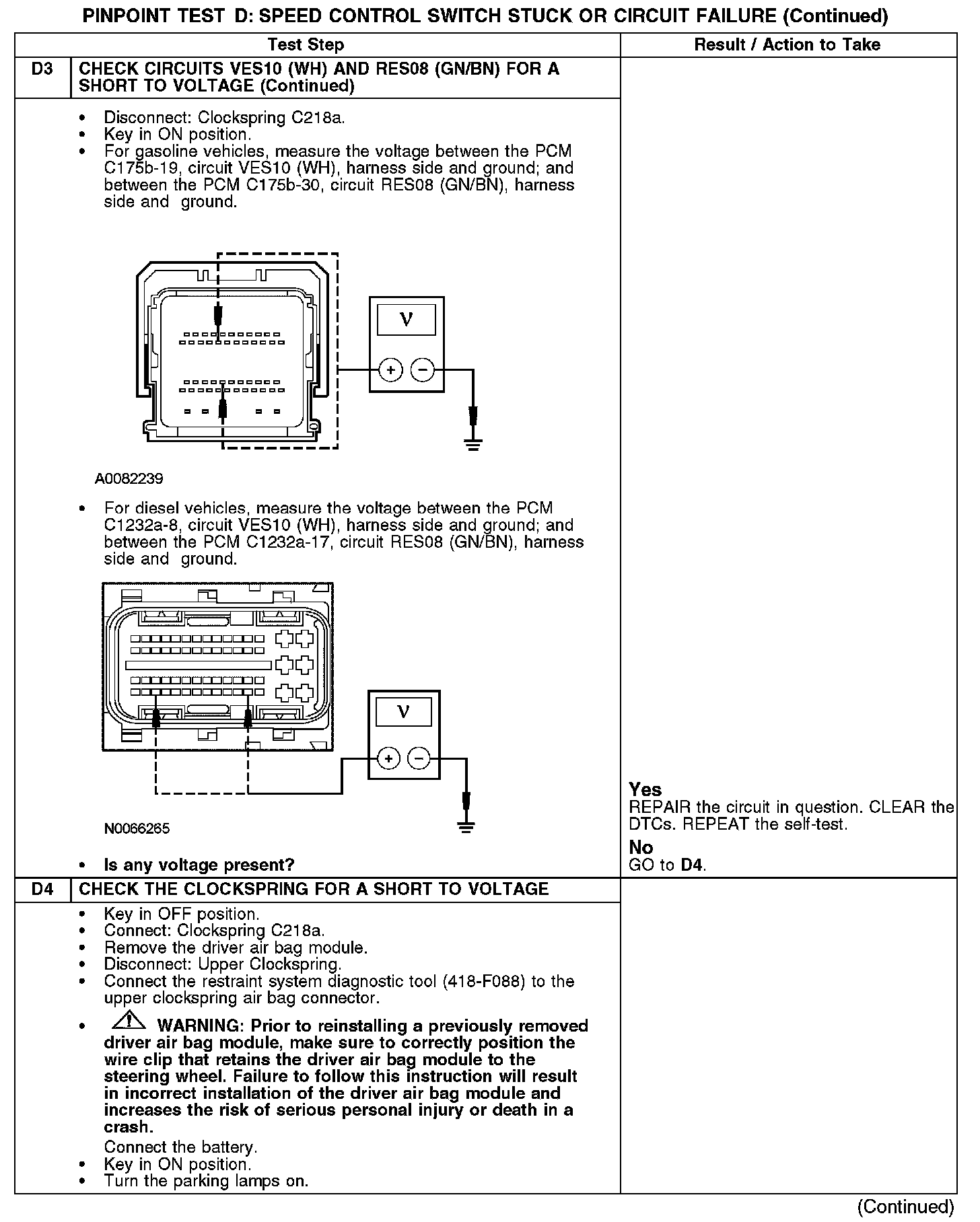

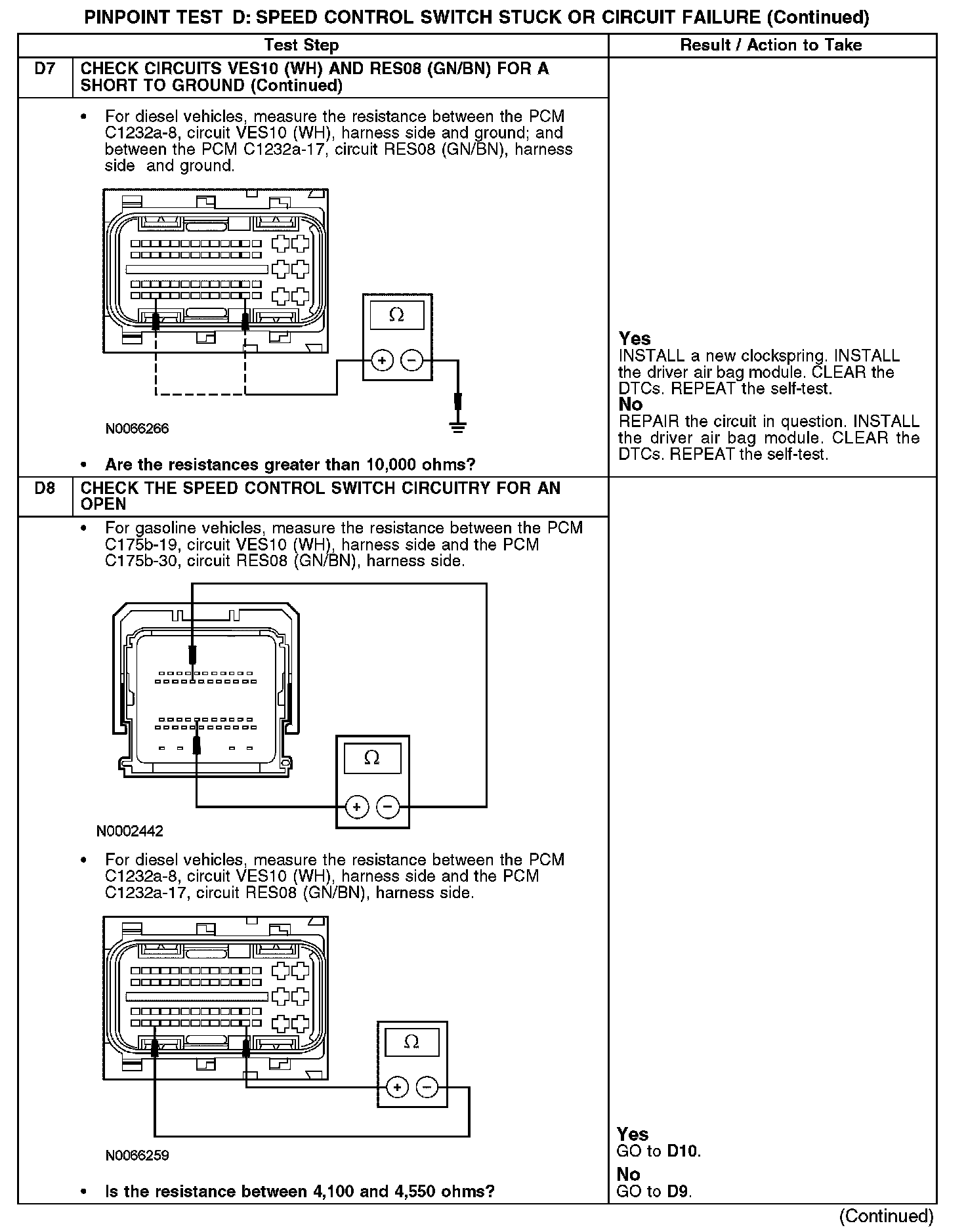

PINPOINT TEST D: SPEED CONTROL SWITCH STUCK OR CIRCUIT FAILURE







D1-D3:






D3-D4:






D4-D5:






D5-D6:






D6-D7:






D7-D8:






D9-D10:






Normal Operation
The PCM sends a signal through circuit VES10 (WH) to the speed control switches which passes through the clockspring. A varying voltage is created as different speed control command switches are pressed. The return signal is sent through circuit RES08 (GN/BN) and the clockspring.

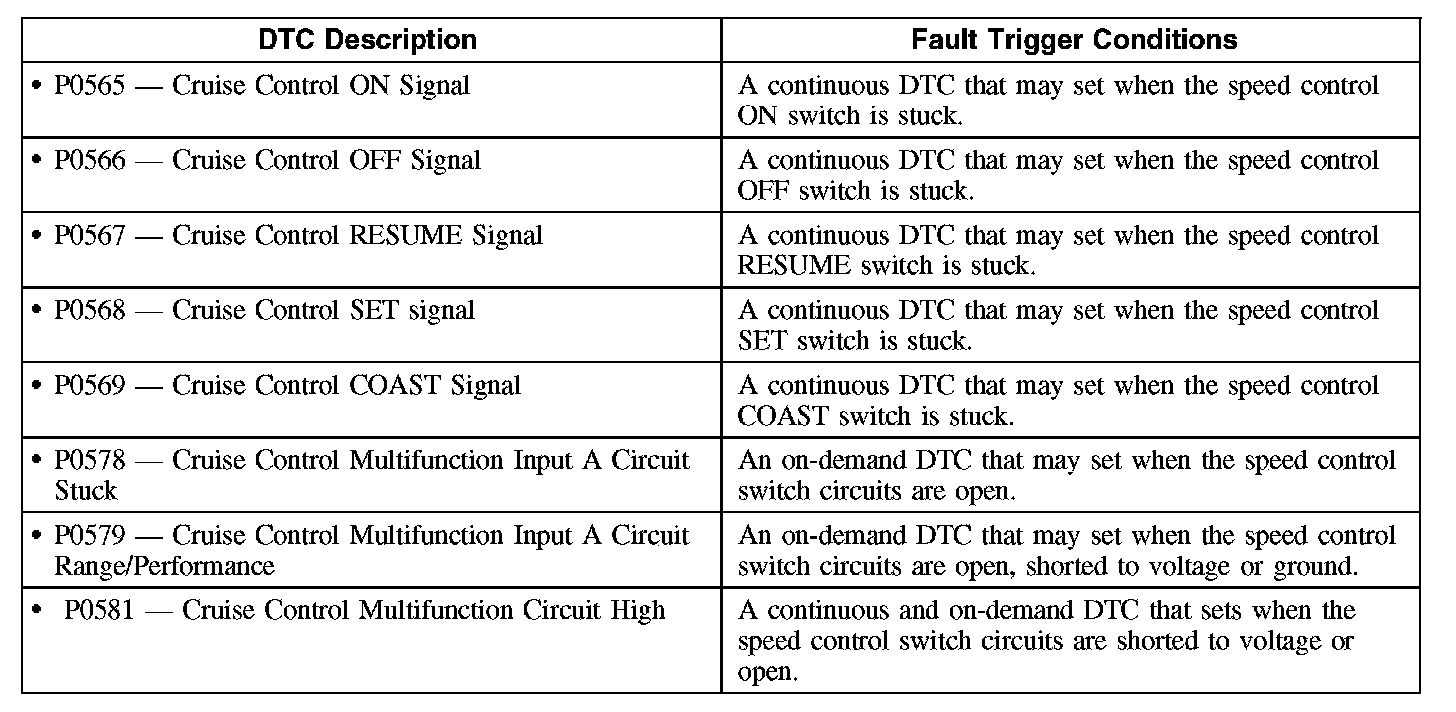

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Clockspring
- PCM
