Test M: Fuel System

PINPOINT TEST M: FUEL SYSTEM

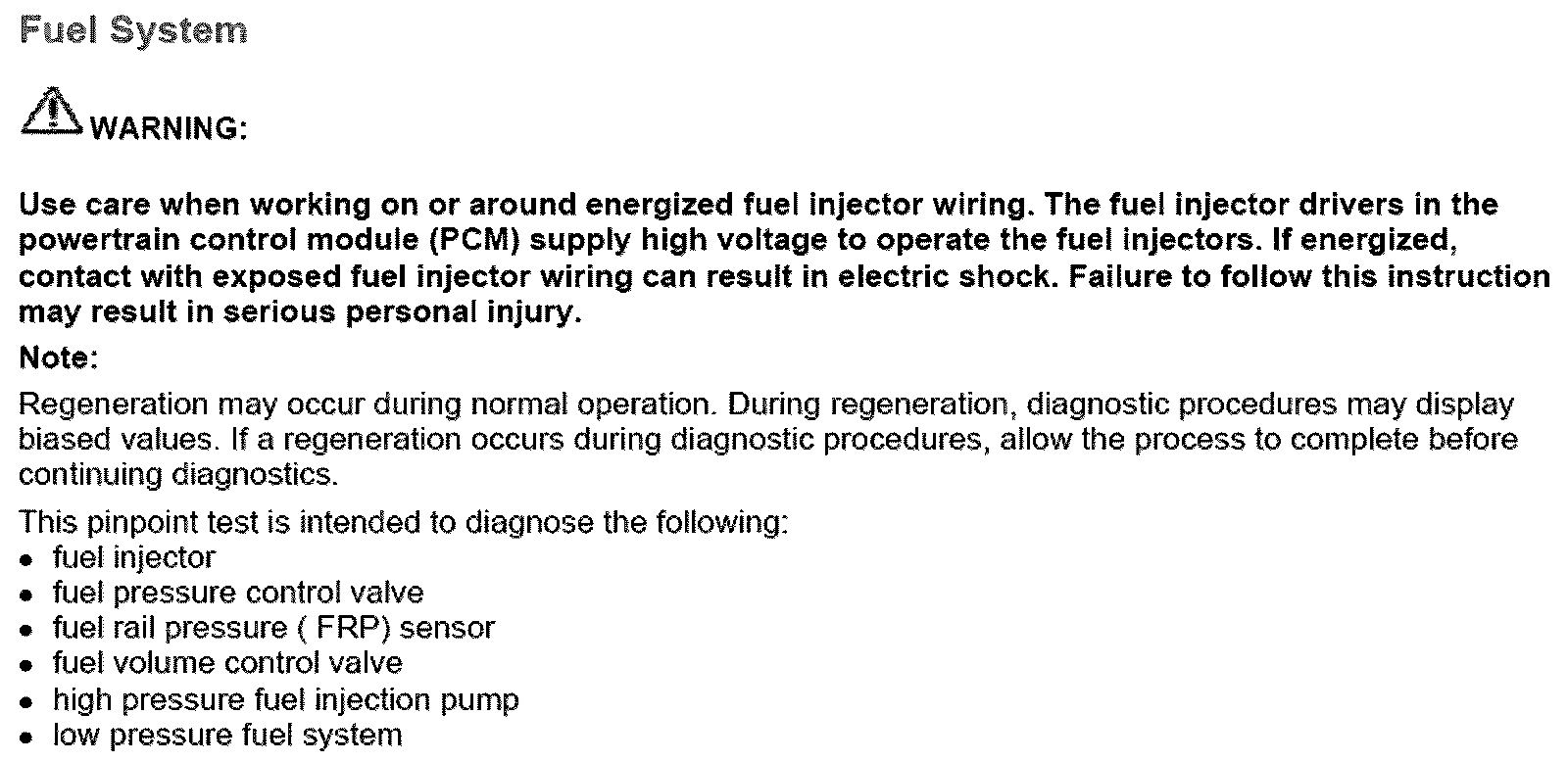

Pinpoint Test M: Fuel System Intro:

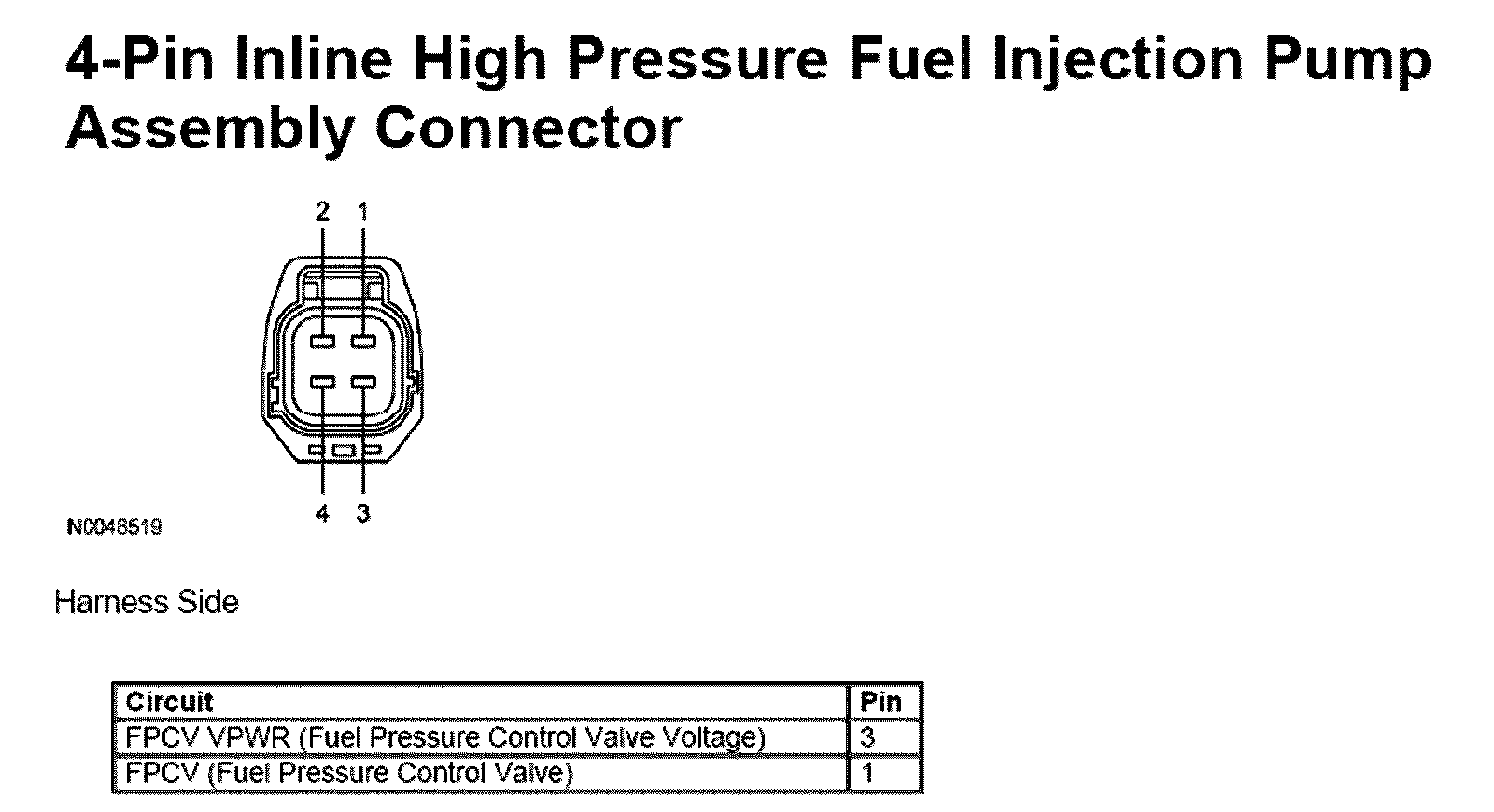

4-Pin Inline High Pressure Fuel Injection Pump Assembly Connector:

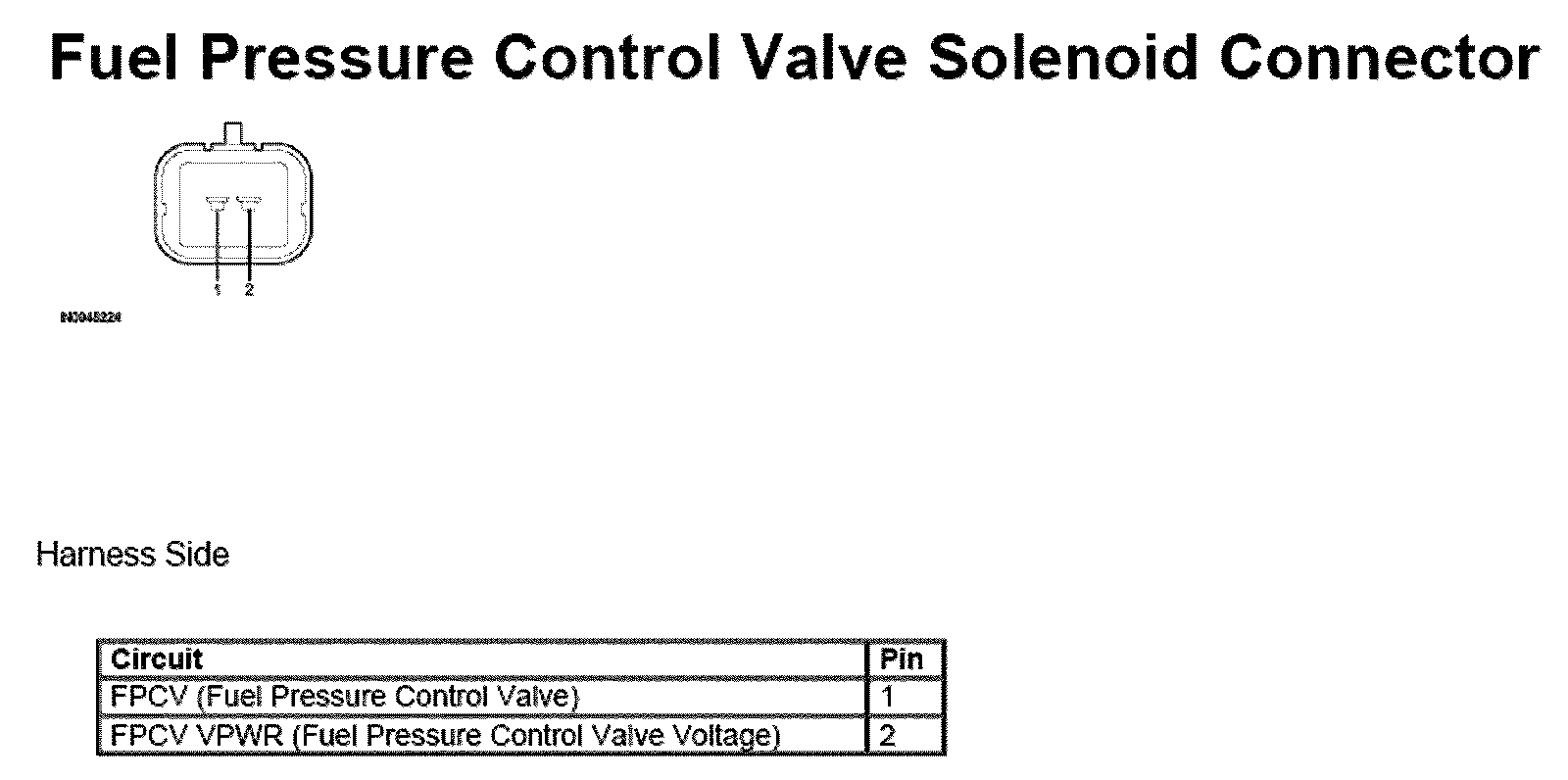

Fuel Pressure Control Valve Solenoid Connector:

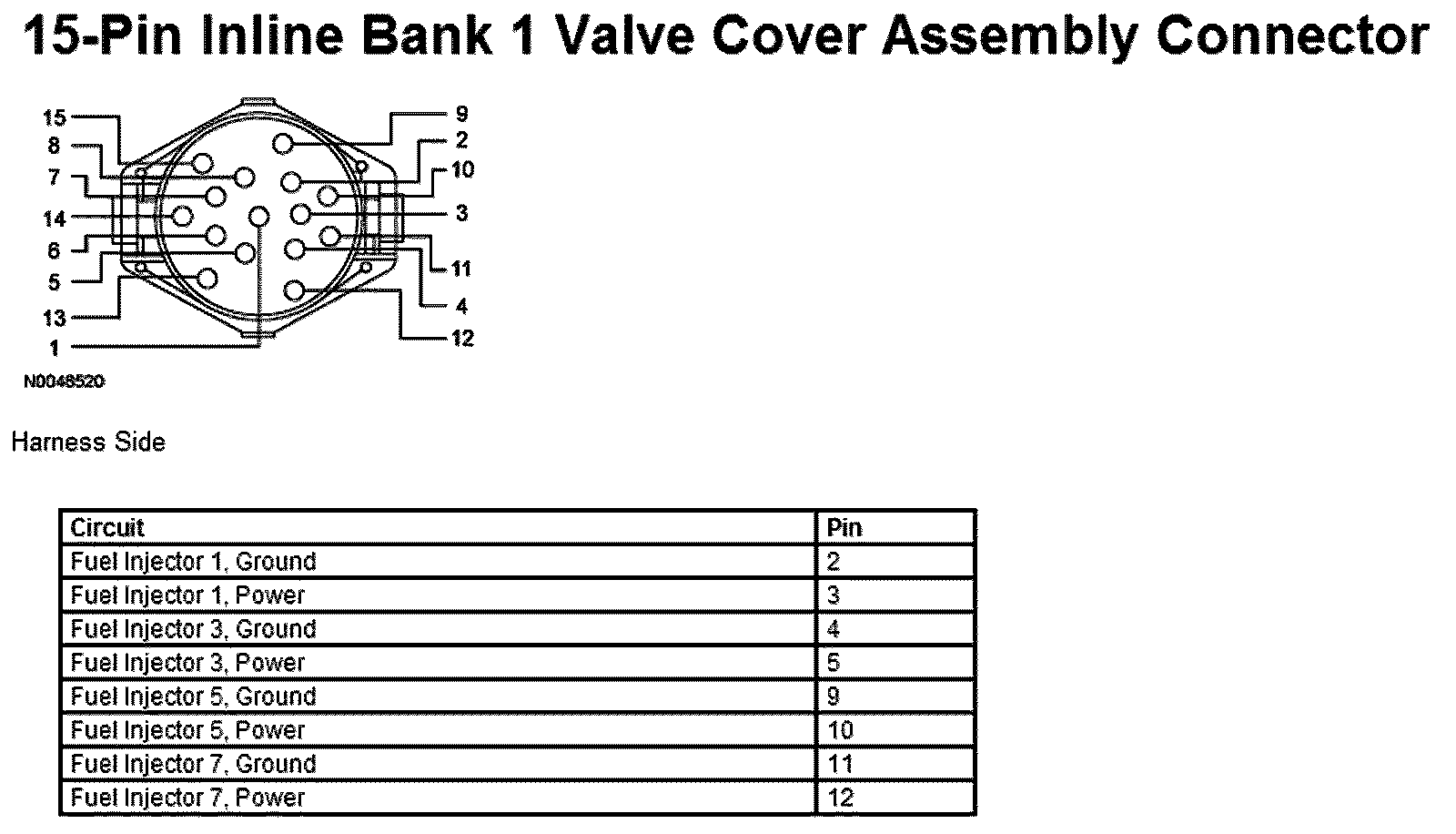

15-Pin Inline Bank 1 Valve Cover Assembly Connector:

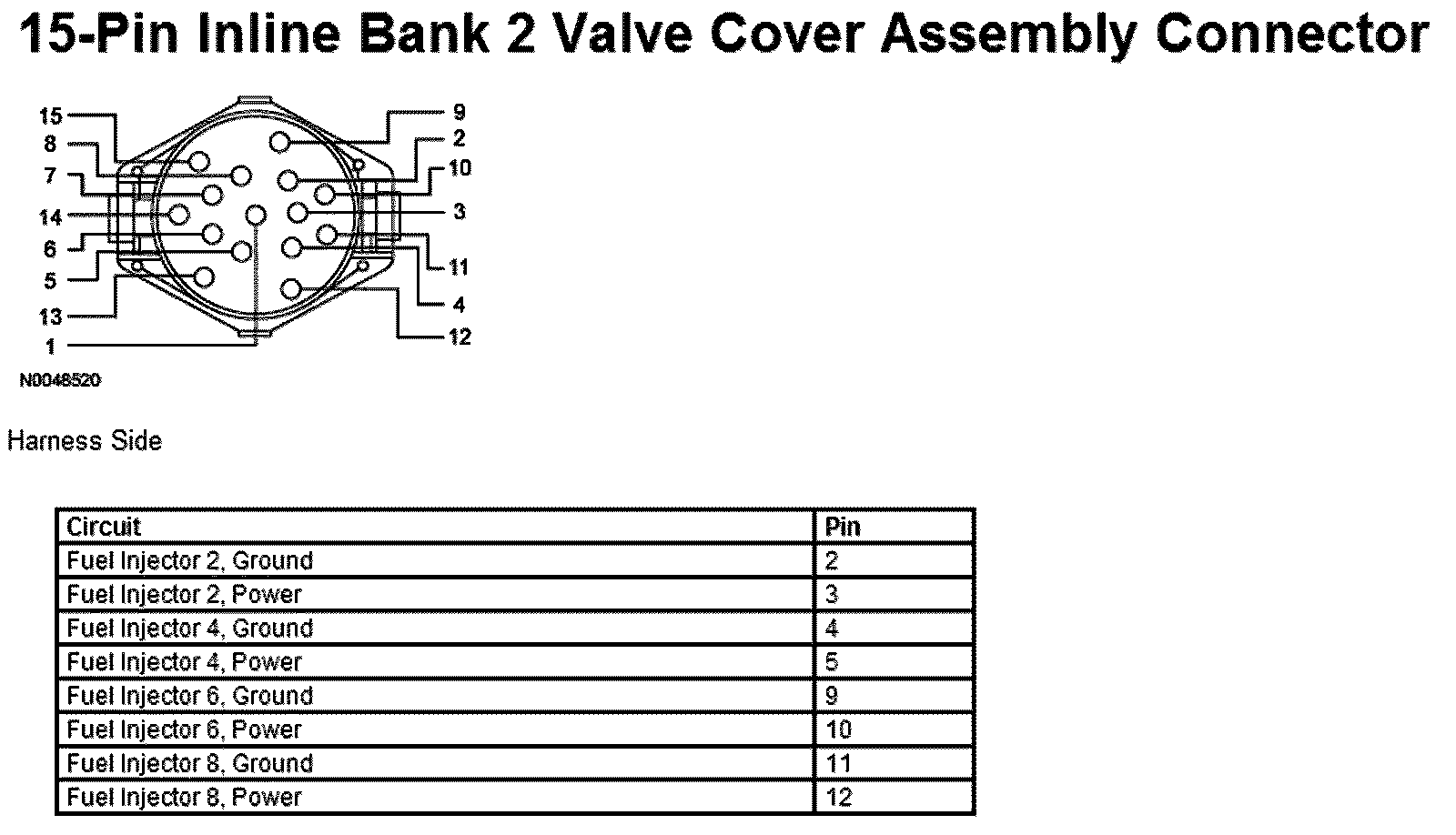

15-Pin Inline Bank 2 Valve Cover Assembly Connector:

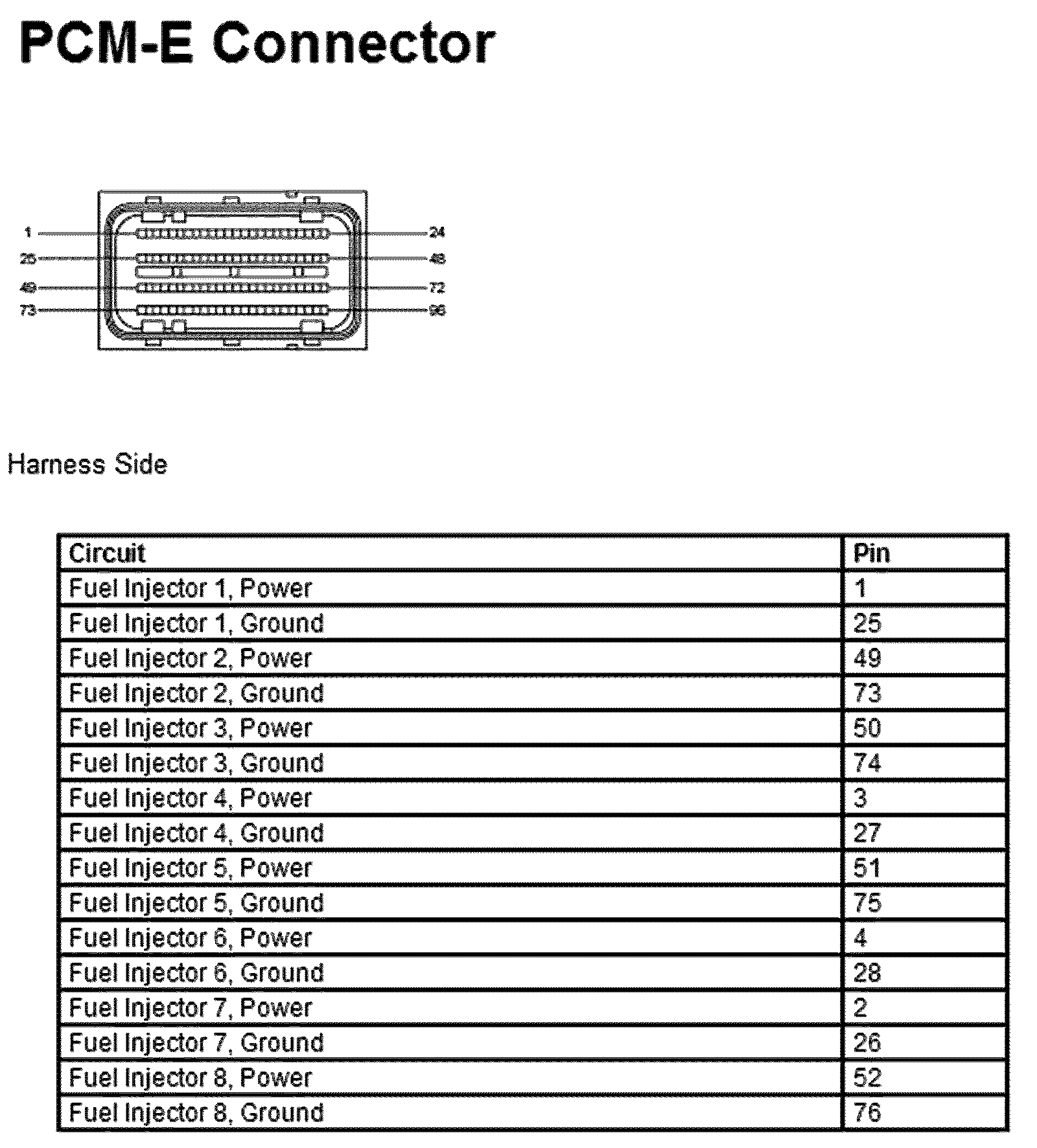

PCM-E Connector:

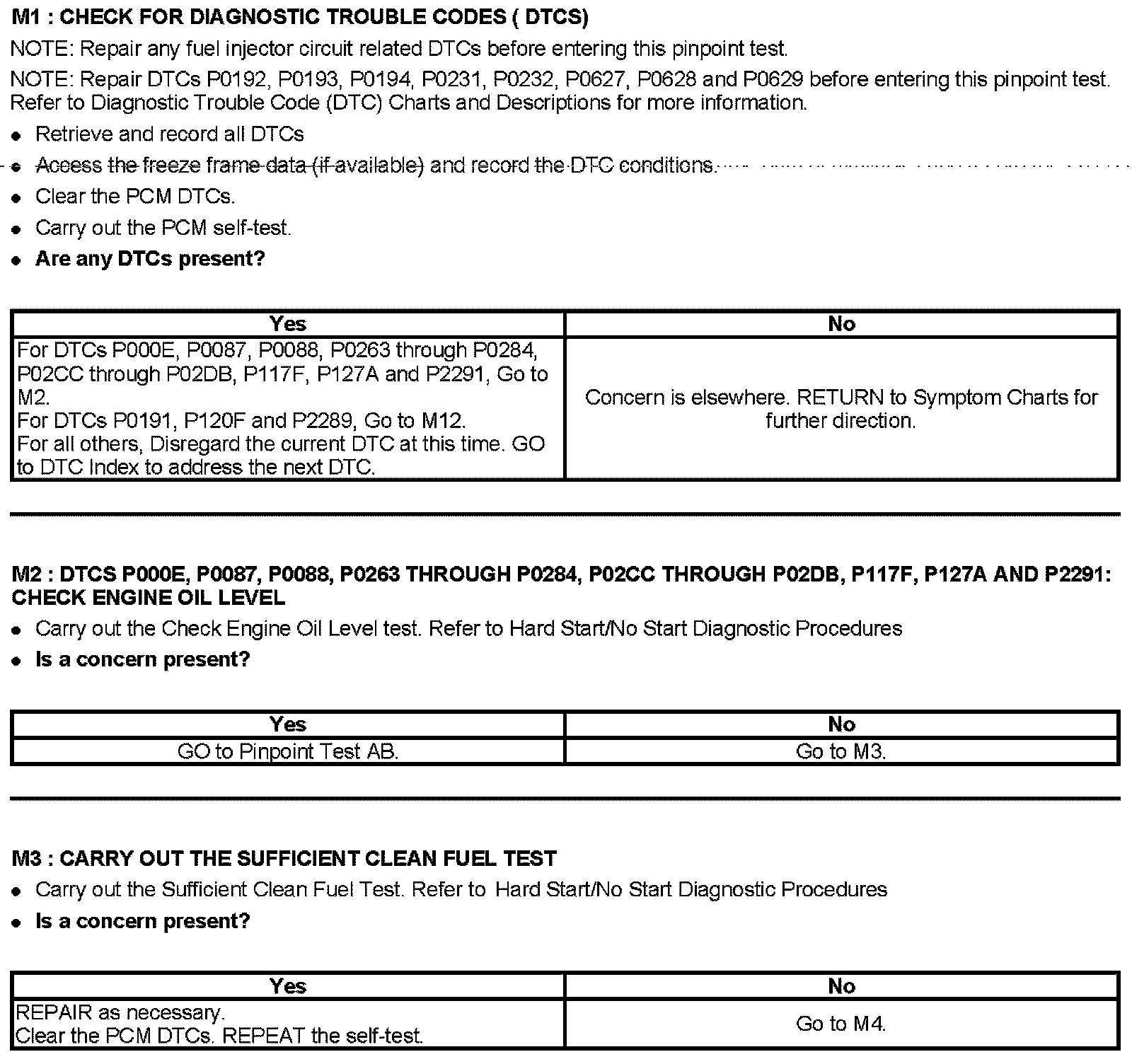

Pinpoint Test: M1-M3:

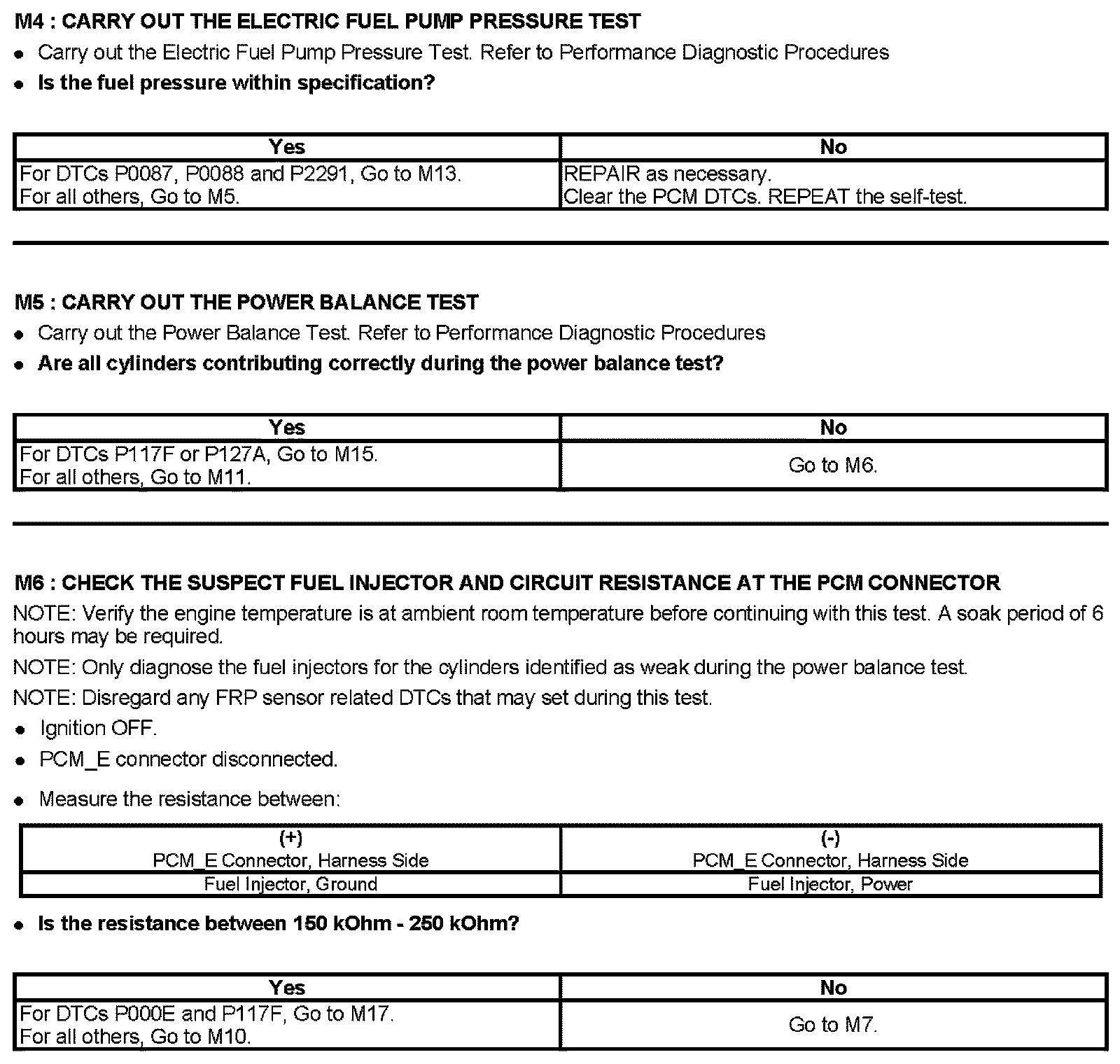

Pinpoint Test: M4-M6:

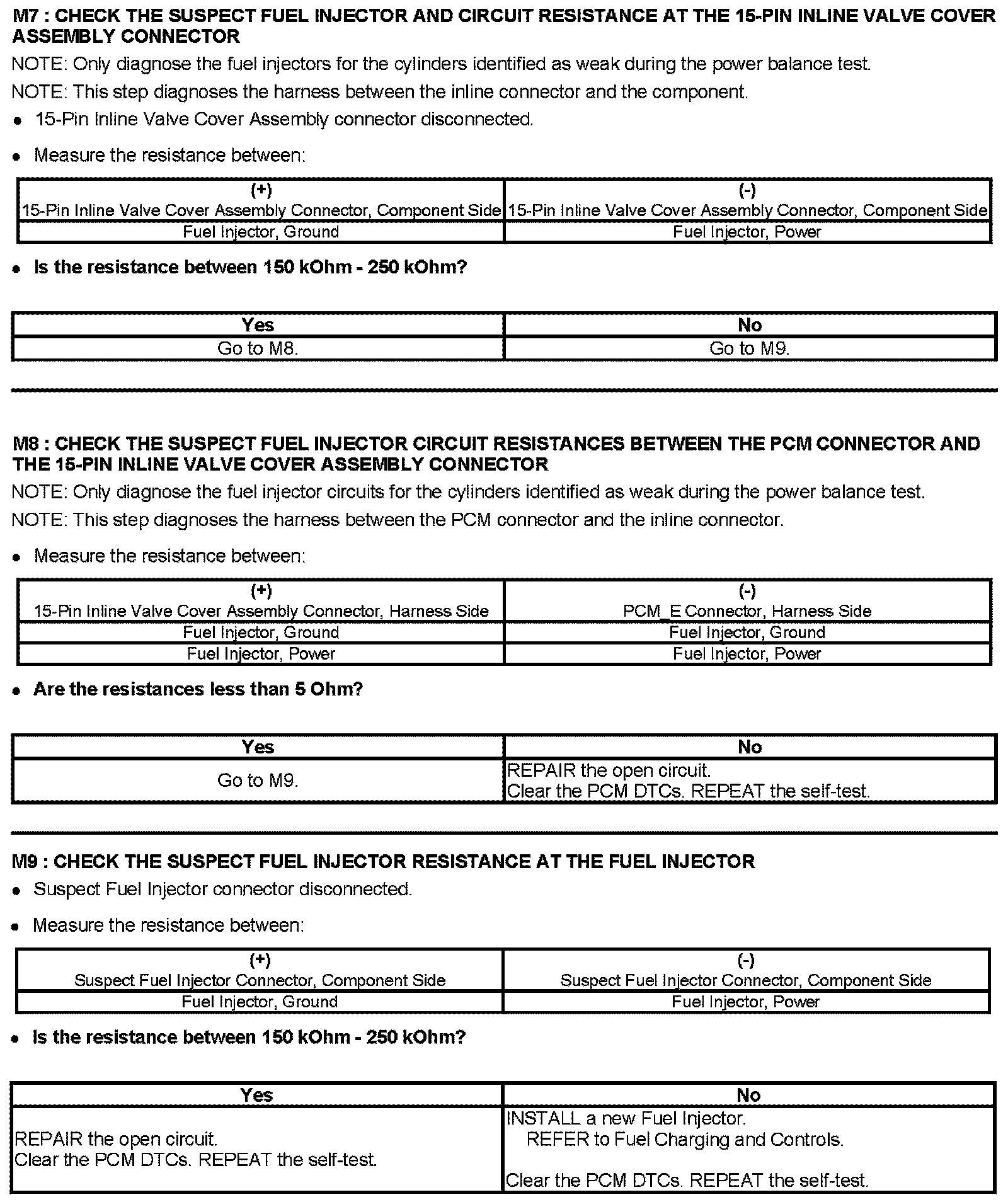

Pinpoint Test: M7-M9:

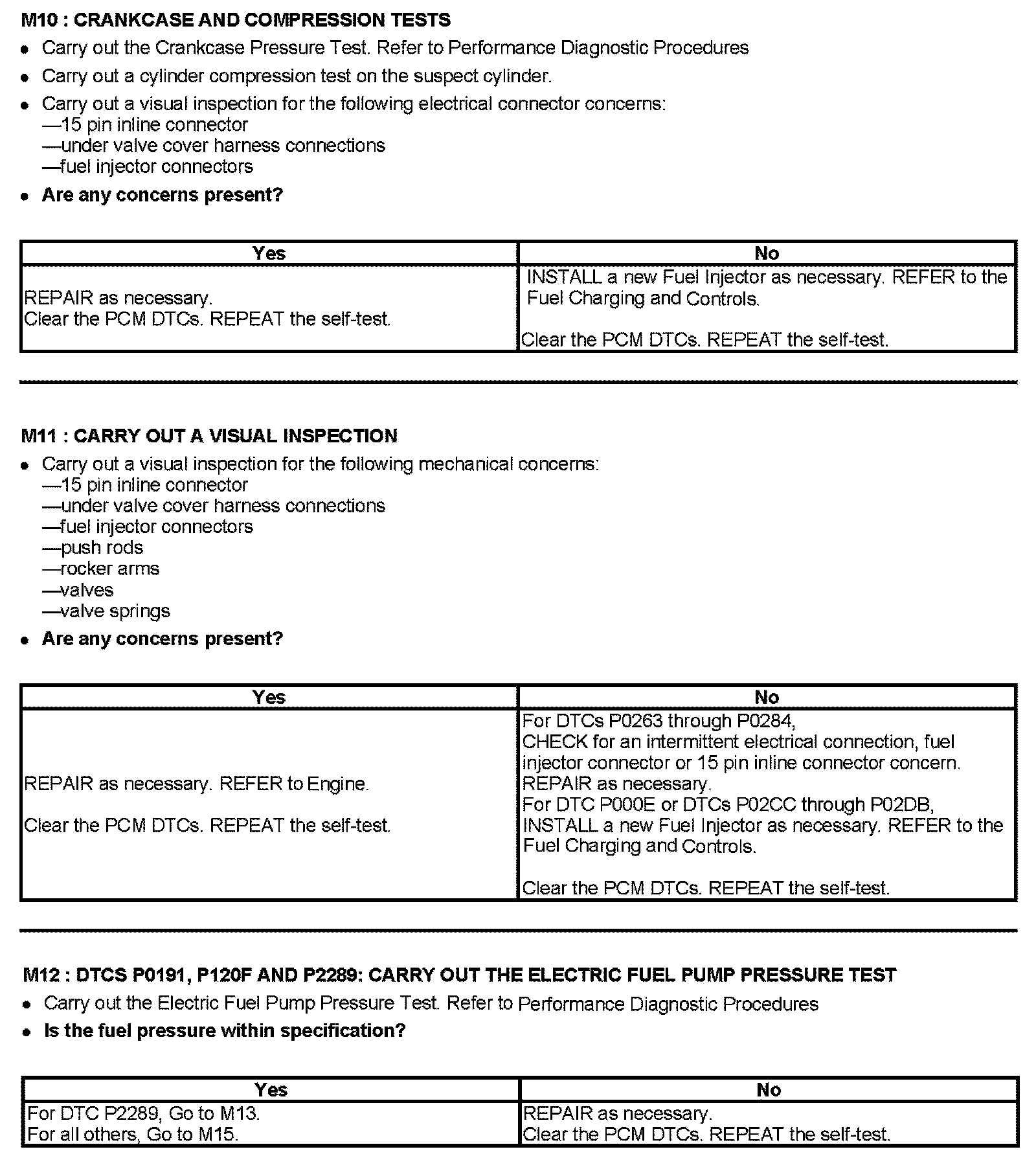

Pinpoint Test: M10-M12:

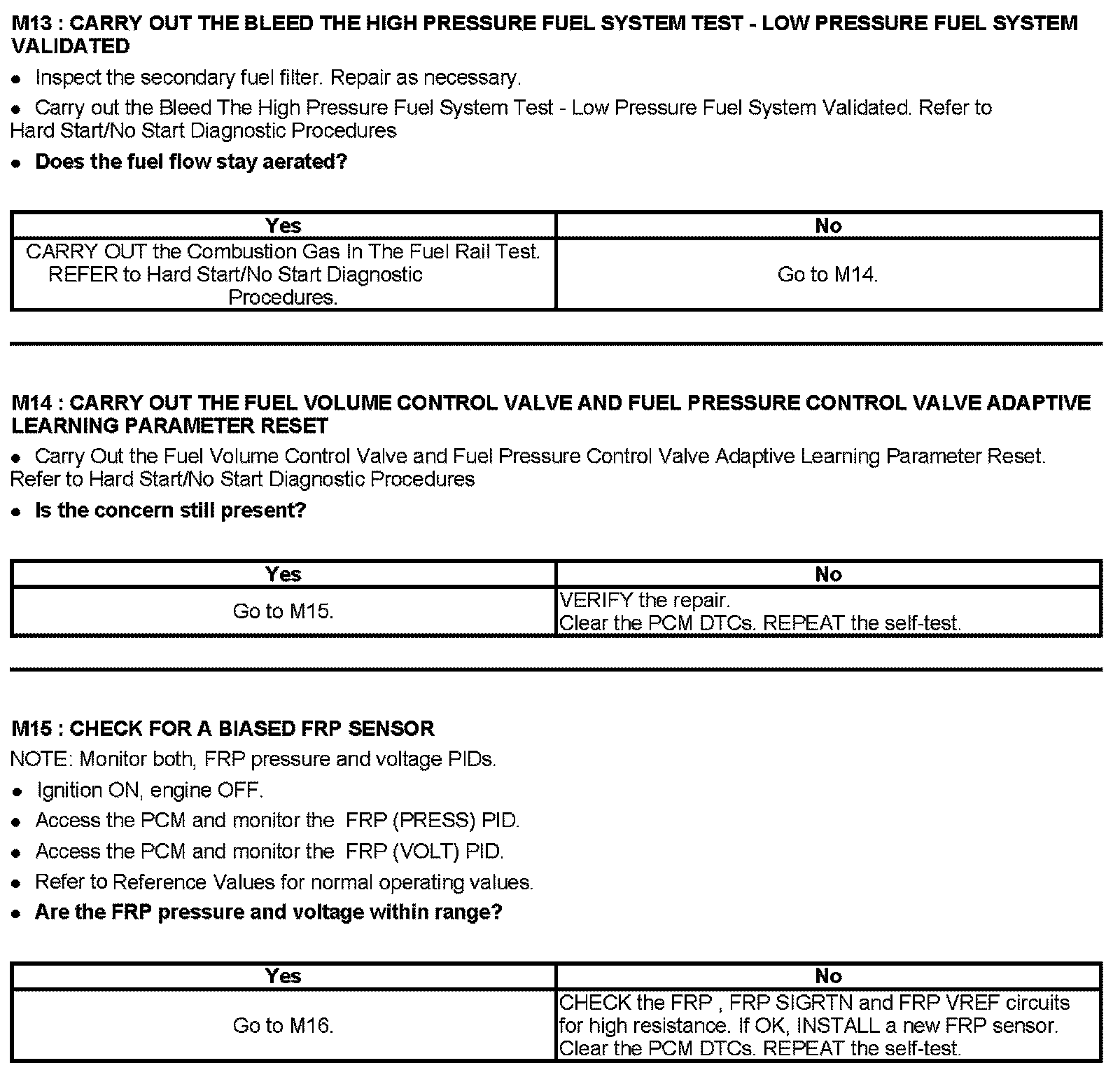

Pinpoint Test: M13-M16:

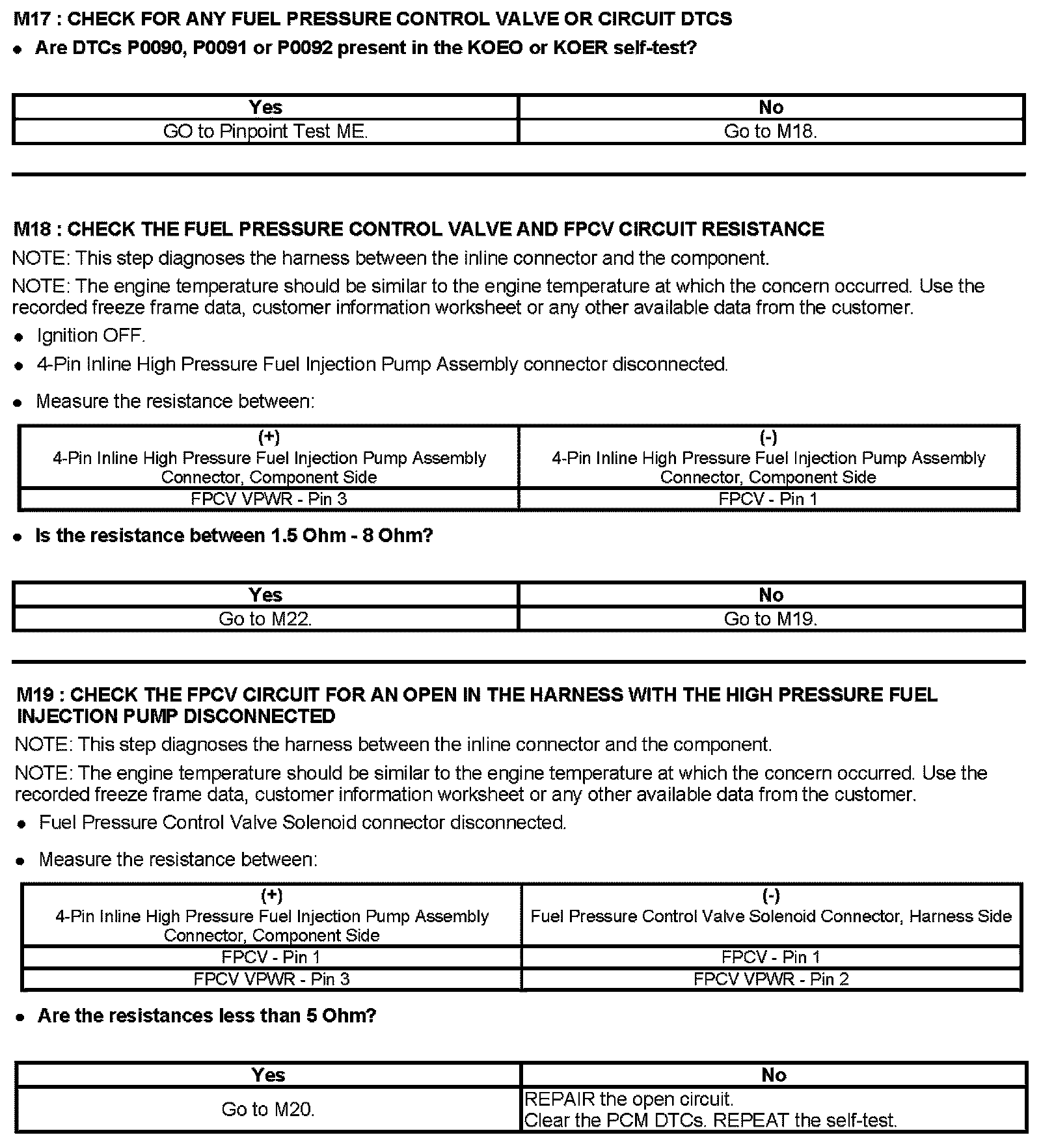

Pinpoint Test: M17-M19:

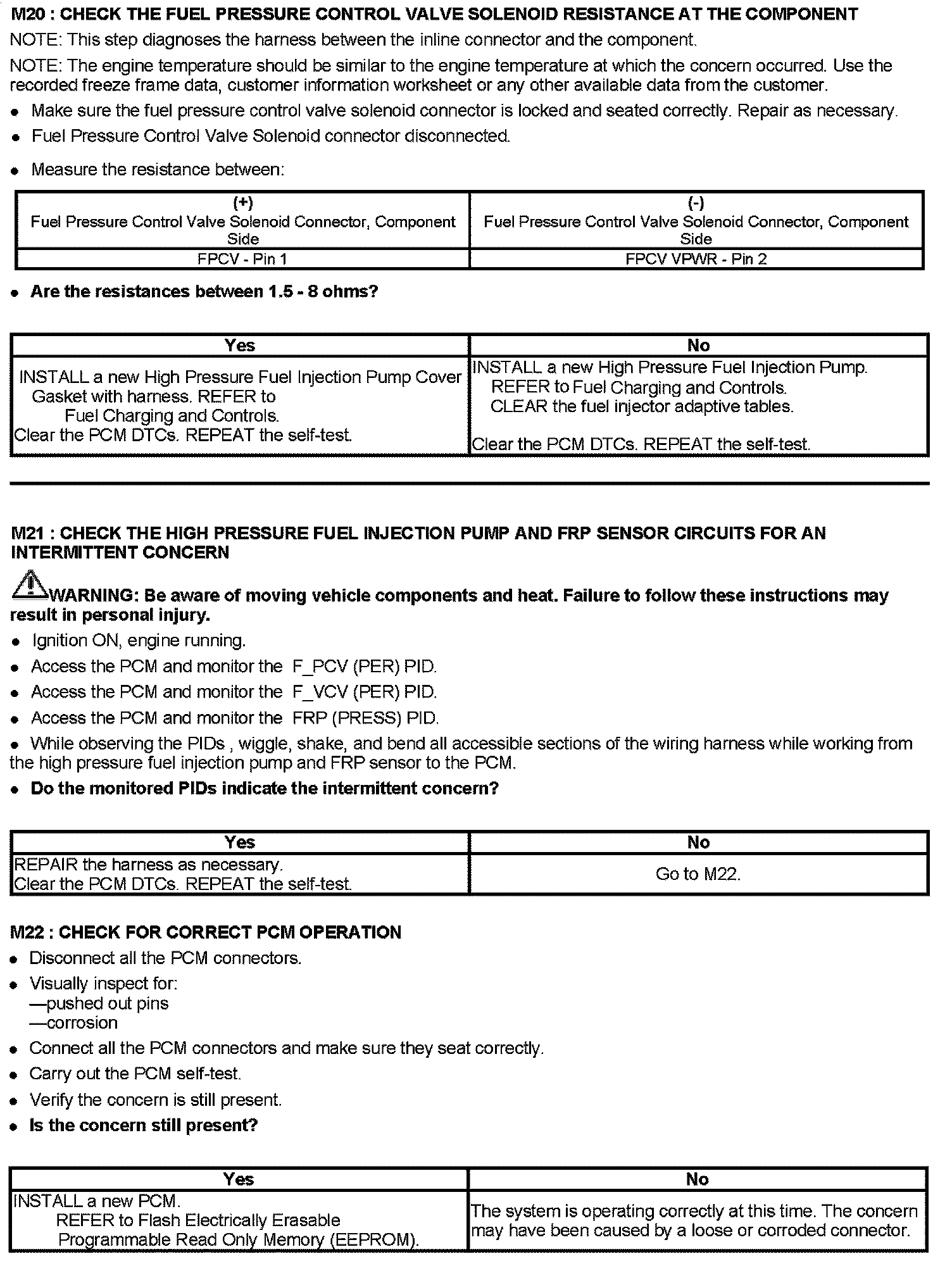

Pinpoint Test: M20-M22:
