Exhaust Pressure Differential Sensor: Service and Repair

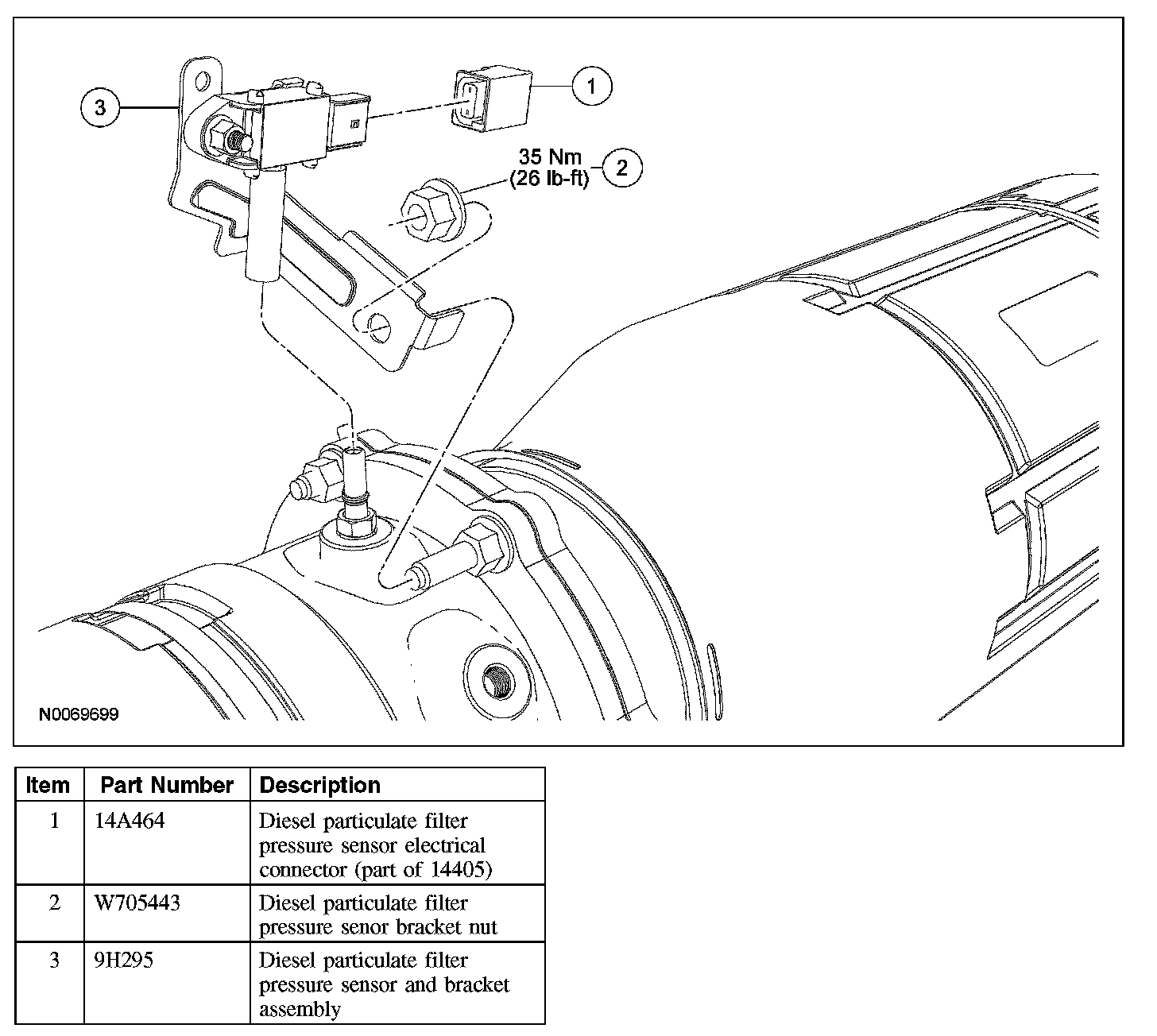

DIESEL PARTICULATE FILTER PRESSURE SENSOR







Removal
1. With the vehicle in NEUTRAL, position it on a hoist.

2. CAUTION: Make sure the ignition switch is in the OFF position prior to working on the electronic engine controls or the vehicle may be damaged.

Turn the ignition switch to the OFF position.

3. Disconnect the diesel particulate filter pressure sensor electrical connector.
4. Remove the diesel particulate filter pressure sensor bracket nut.







5. CAUTION: Do not attempt to remove the diesel particulate filter pressure sensor without first rotating the bracket off the stud. The hose should rotate on the oxidation catalytic converter (OC) hose fitting as the bracket is rotated. This will ease removal. If the hose will not rotate on the fitting, cut the hose vertically at the OC fitting. Do not cut the hose from the sensor. Failure to follow these instructions may damage the diesel particulate filter pressure sensor.

Rotate the diesel particulate pressure sensor and bracket assembly off the stud and remove the sensor and bracket assembly.

Installation







1. Position the diesel particulate filter pressure sensor on the OC fitting and rotate the bracket onto the stud.
2. Install the diesel particulate filter pressure sensor bracket nut.
- Tighten to 35 Nm (26 lb-ft).

3. Connect the diesel particulate filter sensor electrical connector.
