Brake Caliper Anchor Plate, Front

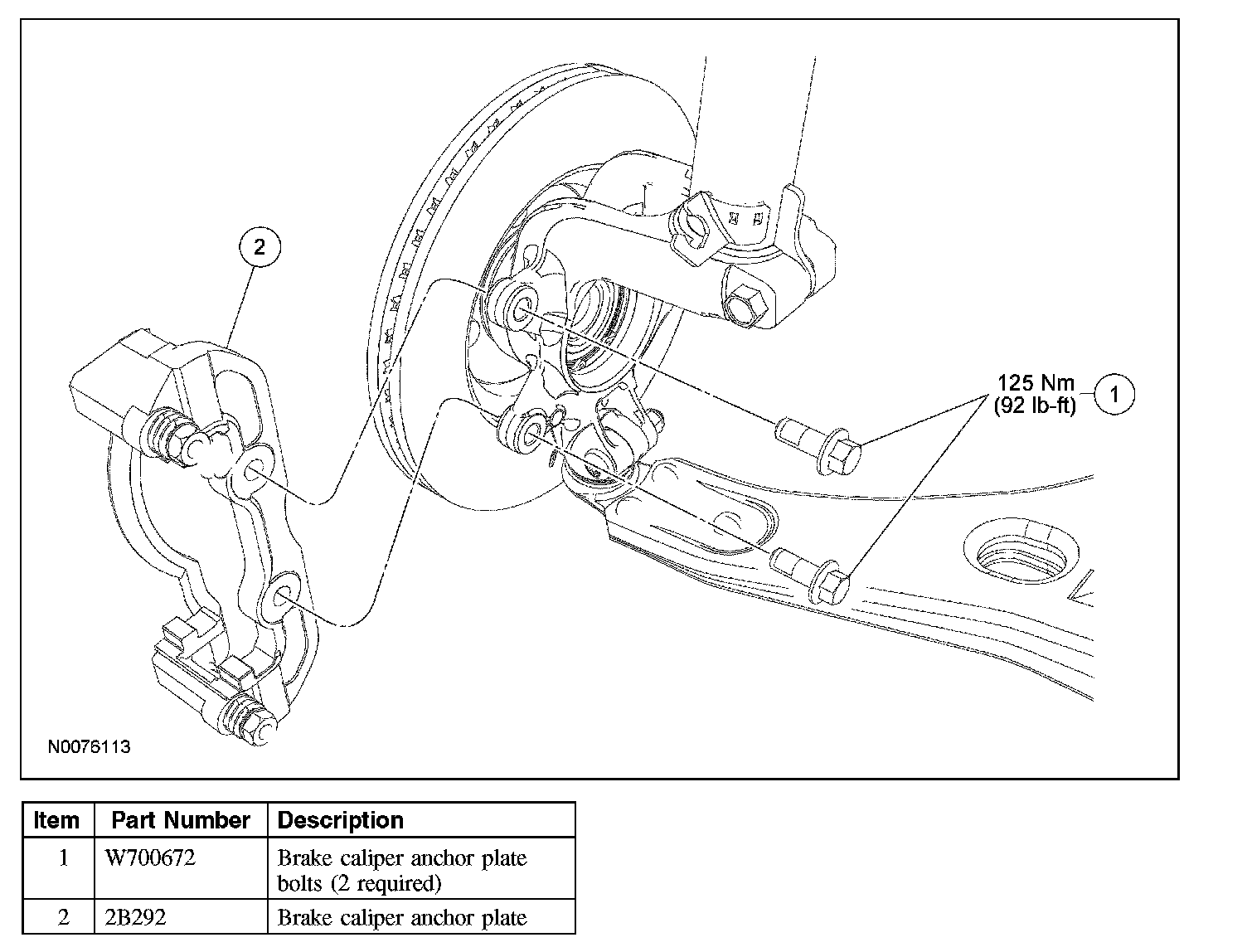

Brake Caliper Anchor Plate Removal and Installation 1.
Remove the
brake pads.
2.
Remove the 2 bolts and the
brake caliper anchor plate.
^
Discard the bolts.
^
To install, tighten the new bolts to 125 Nm (92 lb-ft).
3.
To install, reverse the removal procedure.
^
Apply brakes several times to verify correct brake operation.
