Removal and Replacement

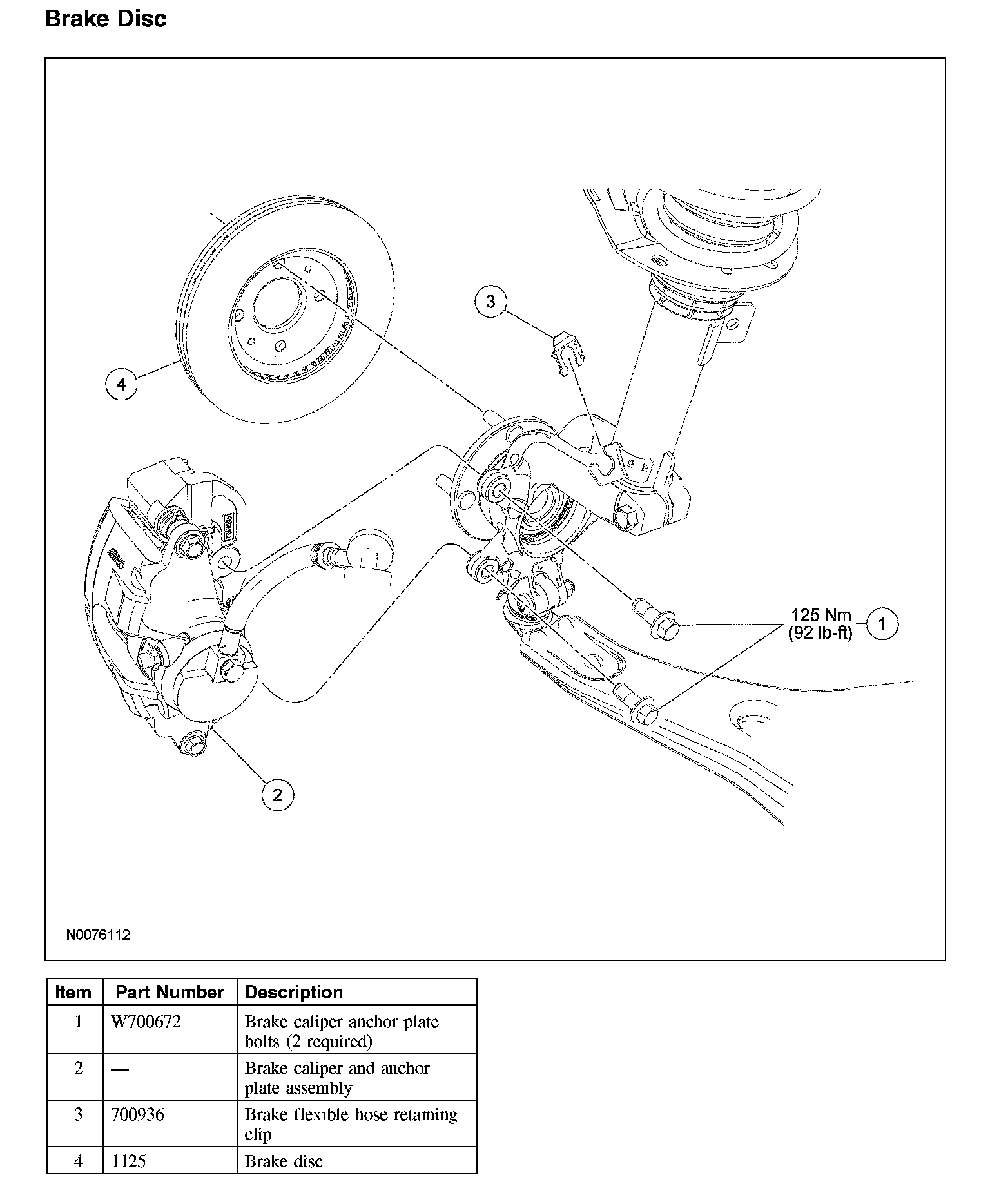

Brake Disc

Brake Disc:





Removal and Installation
1. Remove the wheel and tire.
2. Remove the brake hose retaining clip and hose from the support bracket.

3. CAUTION: Do not allow the caliper to hang by the brake hose or damage to the hose can occur.

Remove the 2 brake caliper anchor plate bolts.
^ Discard the bolts.
^ Support the brake caliper and anchor plate assembly using mechanic's wire.
^ To install, tighten new bolts to 125 Nm (92 lb-ft).

4. Remove the brake disc.
5. To install, reverse the removal procedure.
^ Apply brakes several times to verify correct brake operation.
