Valve Seat Width
Valve Seat Width NOTE: Refer to the appropriate information for the specifications.
1.

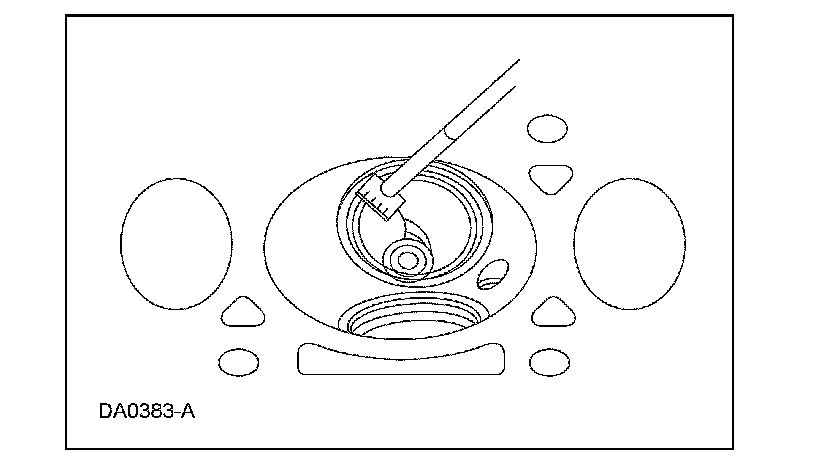

Measure the
valve seat width. If necessary, grind the valve seat to specification.
^
Measure the intake
valve seat width.
^
Measure the exhaust
valve seat width.
^
Recheck the
valve spring installed length after the seats have been ground, and shim the valve springs as necessary to achieve the correct installed spring length.
