Air Register: Service and Repair

REGISTER












Removal and Installation

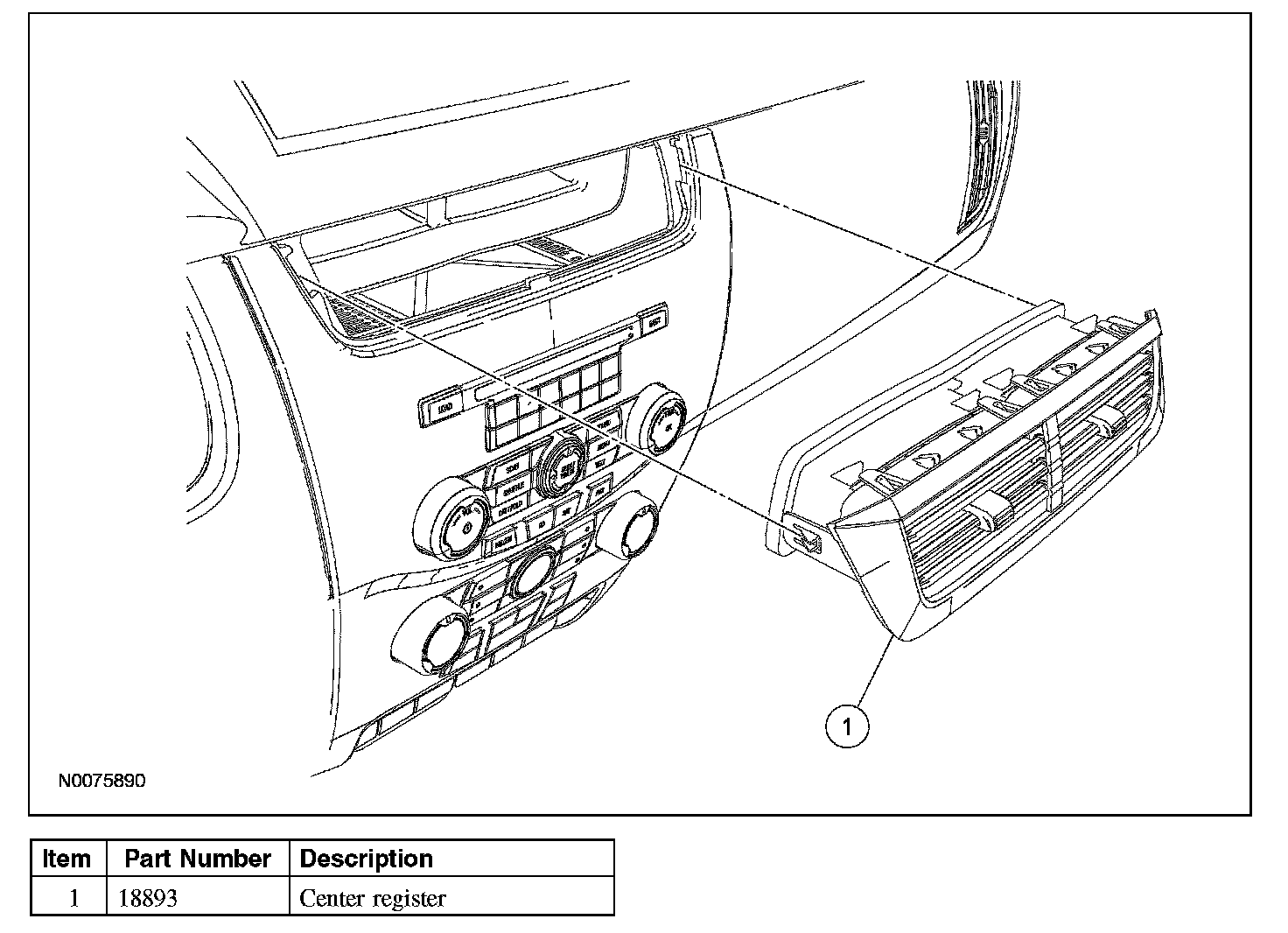

Center register
1. Using a suitable tool, carefully pry around the outer edges of the center register to release the clips.
2. Remove the center register.
3. To install, reverse the removal procedure.

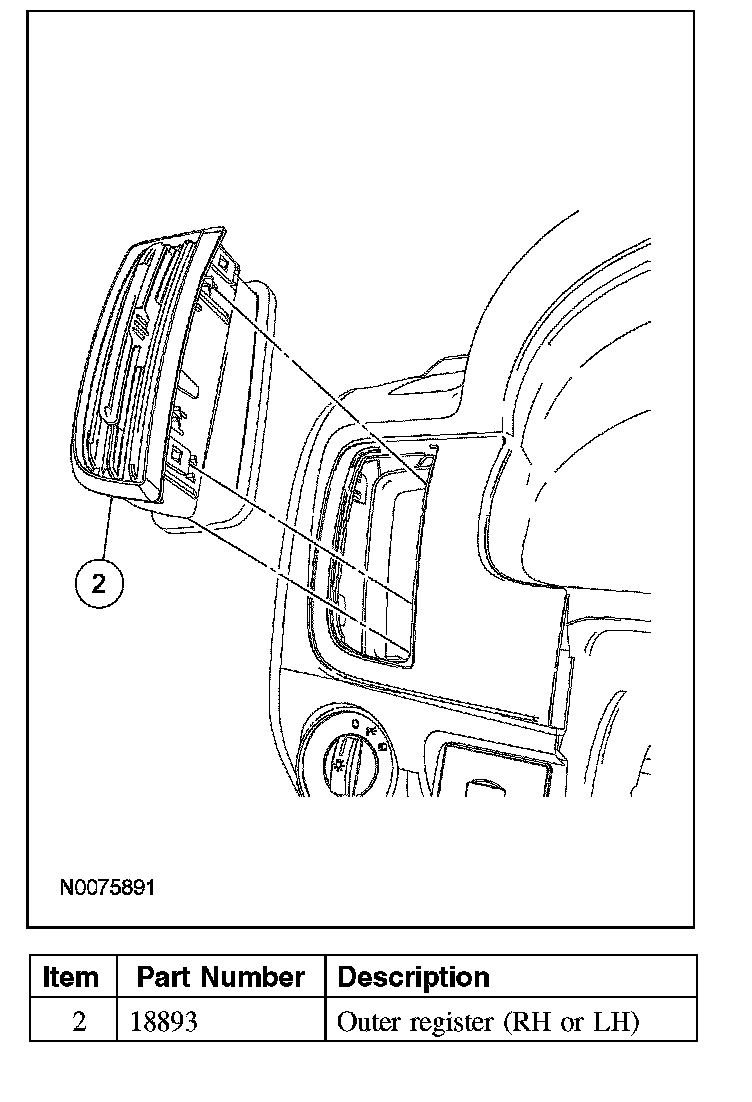

LH or RH outer register

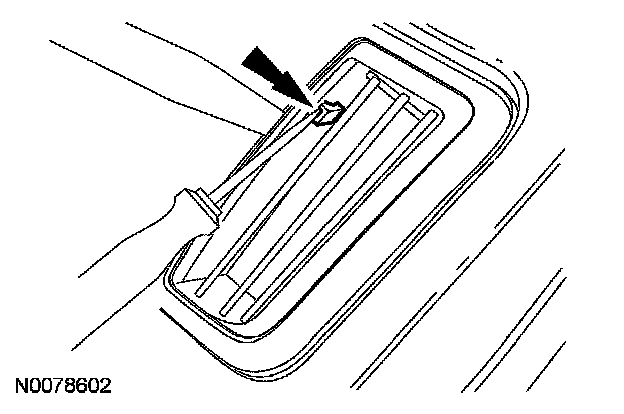

4. Using suitable tools, disengage the 4 register clips while carefully prying around the outer edges of the register.







5. Remove the outer register.
6. To install, reverse the removal procedure.
