Marker Lamp: Service and Repair

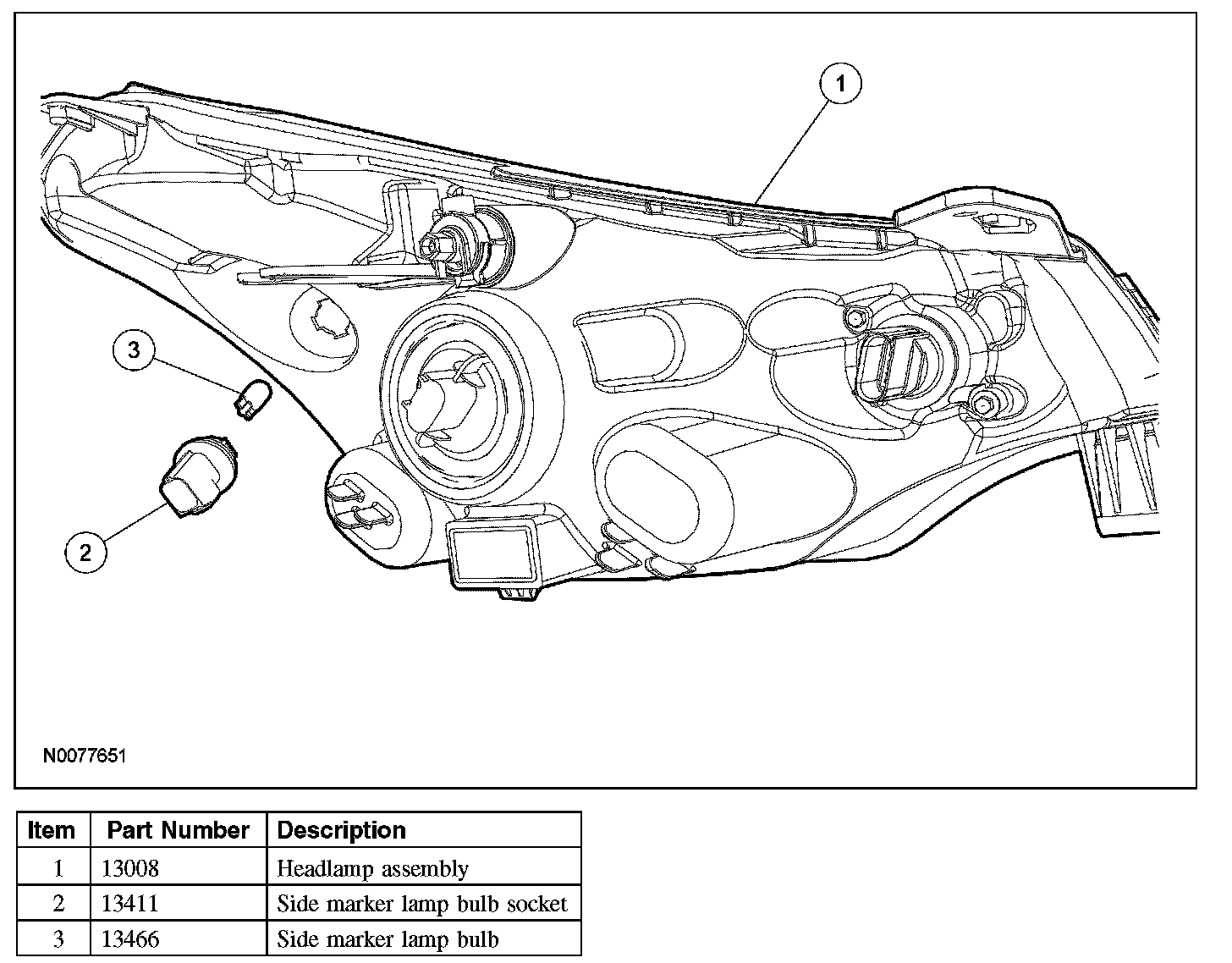

SIDE MARKER LAMPRemoval and Installation 1.
Remove the headlamp assembly.
2.
NOTE: Rotate the side marker lamp bulb socket counterclockwise approximately one-eighth turn to remove.
Remove the side marker lamp bulb socket from the headlamp assembly.
-
If necessary, remove the bulb from the socket.
3.
To install, reverse the removal procedure.
