Cabin Air Filter / Purifier: Service and Repair

CABIN AIR FILTER

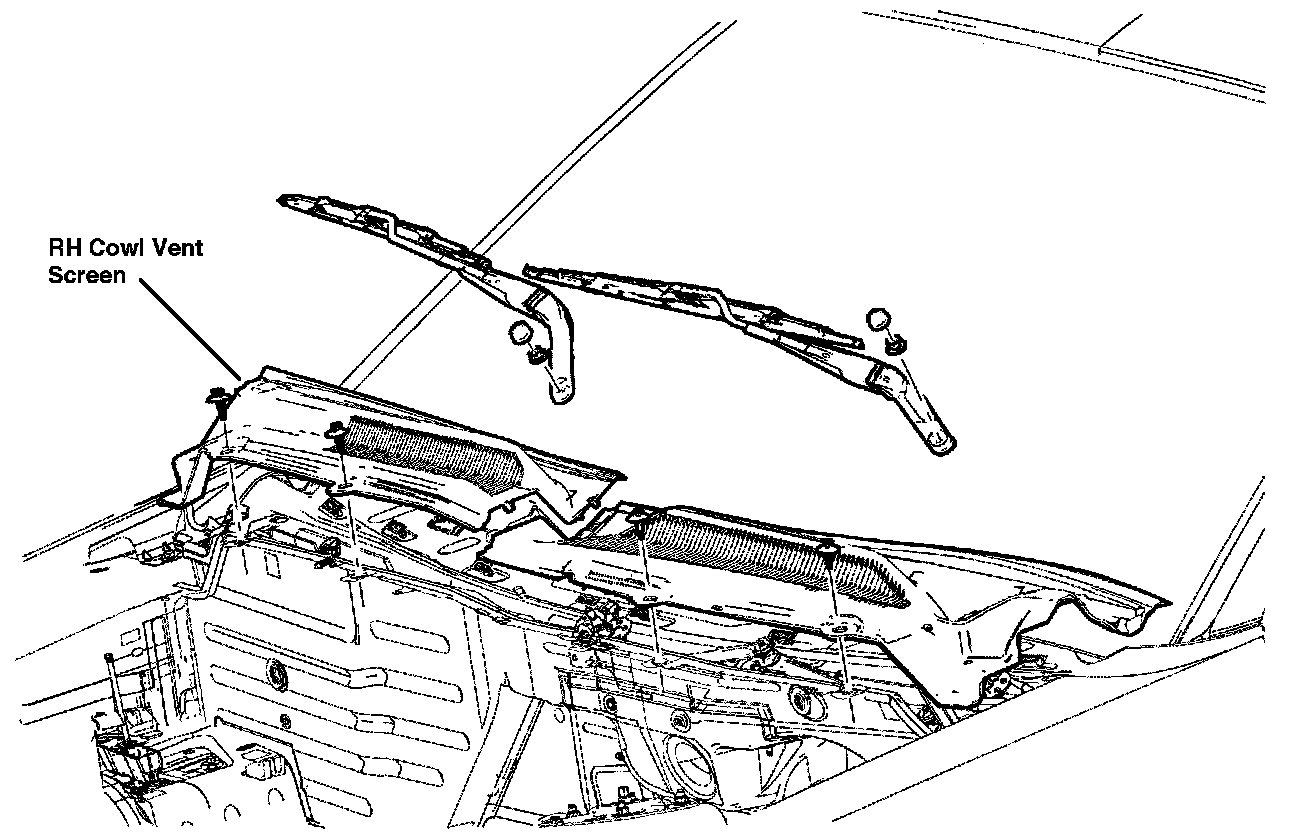

The cabin air filter is located under the RH cowl vent screen. To install a new cabin air filter, remove the RH cowl vent screen.
1. Remove the two wiper pivot arms.
2. Remove 4 cowl vent screen pin-type retainers.
3. Note: The RH cowl vent screen overlaps the LH cowl vent screen and must be removed first. Remove the RH and LH cowl vent screens.
4 To install, reverse the removal procedure.
