Child Seat Tether Attachment: Service and Repair

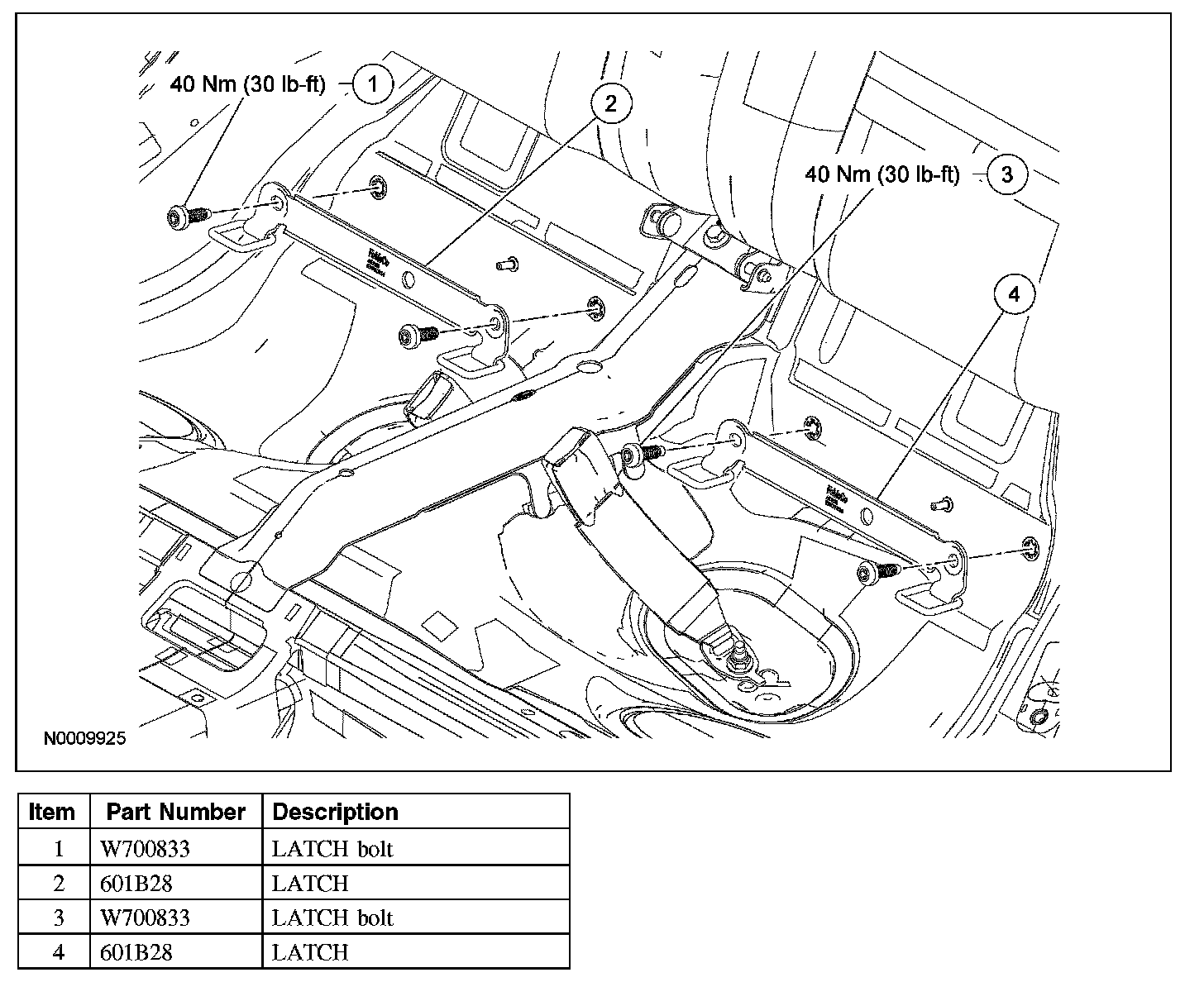

CHILD SAFETY SEAT TETHER ANCHOR - LATCH







Removal and Installation
1. Remove the rear seat cushion.
2. Remove the LATCH bolts.
- To install, tighten to 40 Nm (30 lb-ft).

3. Remove the LATCH attachment.
- When installing, make sure the LATCH is positioned with the locator pin going through the hole provided in the LATCH attachment.

4. To install, reverse the removal procedure.
- When installing the seat cushion, make sure the safety belt buckles are accessible to the occupants after installation.
