Front Fender: Service and Repair

FENDER

Exploded View

Taurus, Sable (Part 1):

Taurus, Sable (Part 2):

Taurus X (Part 1):

Taurus X (Part 2):

Removal and Installation
1. Remove the front bumper cover.
2. Remove the front wheel and tire assembly.
3. Remove the fender splash shield.
4. Remove the headlamp bolts.
5. Remove the fascia bracket-to-fender-to-headlamp bolt.
- To install, tighten to 12 Nm (9 lb-ft).

6. NOTE: If shims are present during removal, be sure to reinstall shims and check fender alignment.

Remove the 2 lower fender mounting bolts located at the lower rear of the fender.
- To install, tighten to 12 Nm (9 lb-ft).

7. Remove the 2 fender bracket-to-fender bolts.
- To install, tighten to 12 Nm (9 lb-ft).

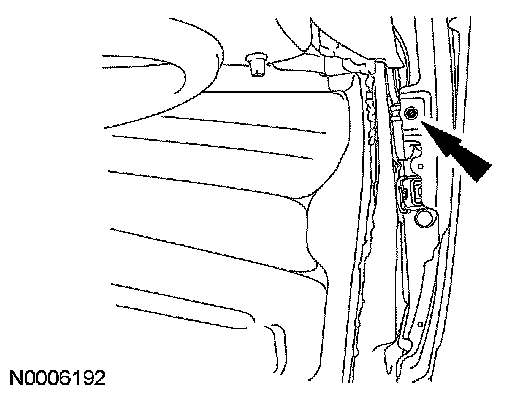

8. Remove the fender mounting bolt located at the rear of the wheelhouse opening.
- To install, tighten to 12 Nm (9 lb-ft).







9. Remove the fender upper mounting bolts.
- To install, tighten to 12 Nm (9 lb-ft).

10. Remove the fender.
11. To install, reverse the removal procedure.
