Rear Shelf: Service and Repair

PARCEL SHELF

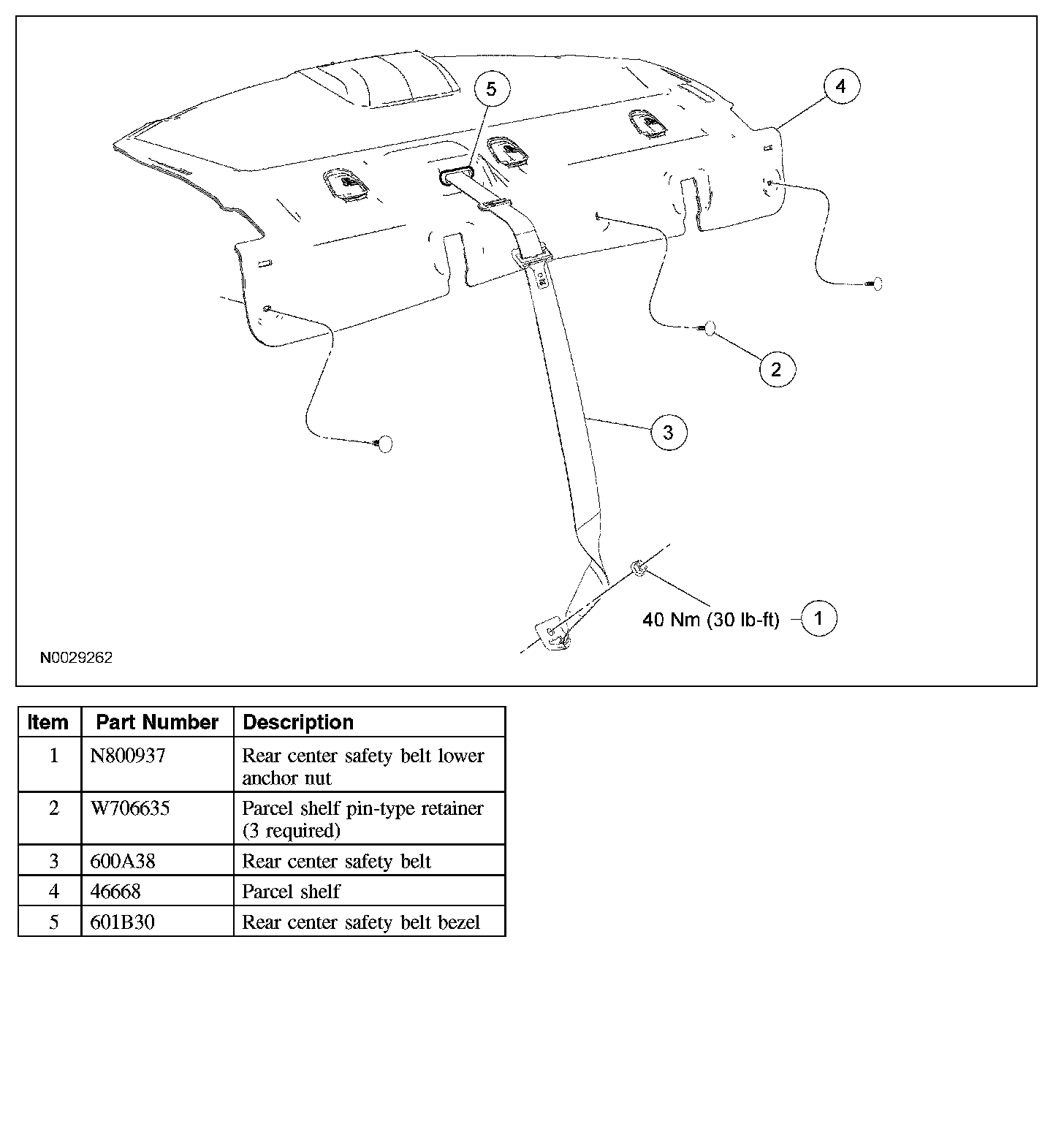

Removal and Installation
1. Remove the rear seat cushion.
2. Remove the RH and LH C-pillar trim panel.
3. Remove the RH and LH D-pillar trim panel.
4. Remove the rear center safety belt lower anchor nut.
- To install, tighten to 40 Nm (30 lb-ft).







5. Position the rear seats to the flat position.
6. Remove the rear center safety belt bezel.
- Pull the rear center safety belt bezel outward.







7. Disconnect the electrical connector located at the LH D-pillar.







8. Remove the 3 parcel shelf pin-type retainers.
9. Remove the parcel shelf.
- Pull the parcel shelf toward the front of the vehicle.

10. To install, reverse the removal procedure.
