Pinpoint Tests
PINPOINT TEST A: THE CLOCK OPERATION IS ERRATIC/INOPERATIVENormal Operation The clock receives battery voltage from the smart junction box (SJB) through circuit SBP14 (BN/RD). Ground for the clock is supplied through circuit GD111 (BK/BU).
This pinpoint test is intended to diagnose the following: -
Fuse
-
Wiring, terminals or connectors
-
Clock

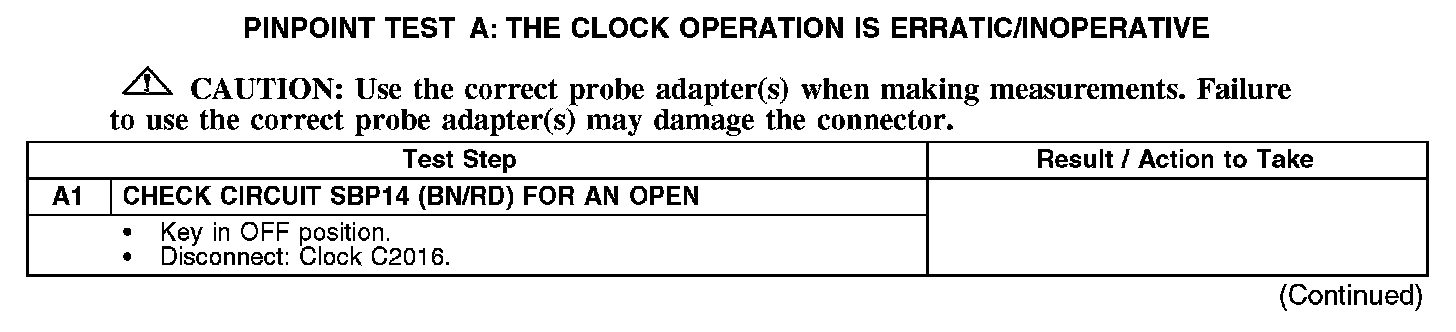

A1:

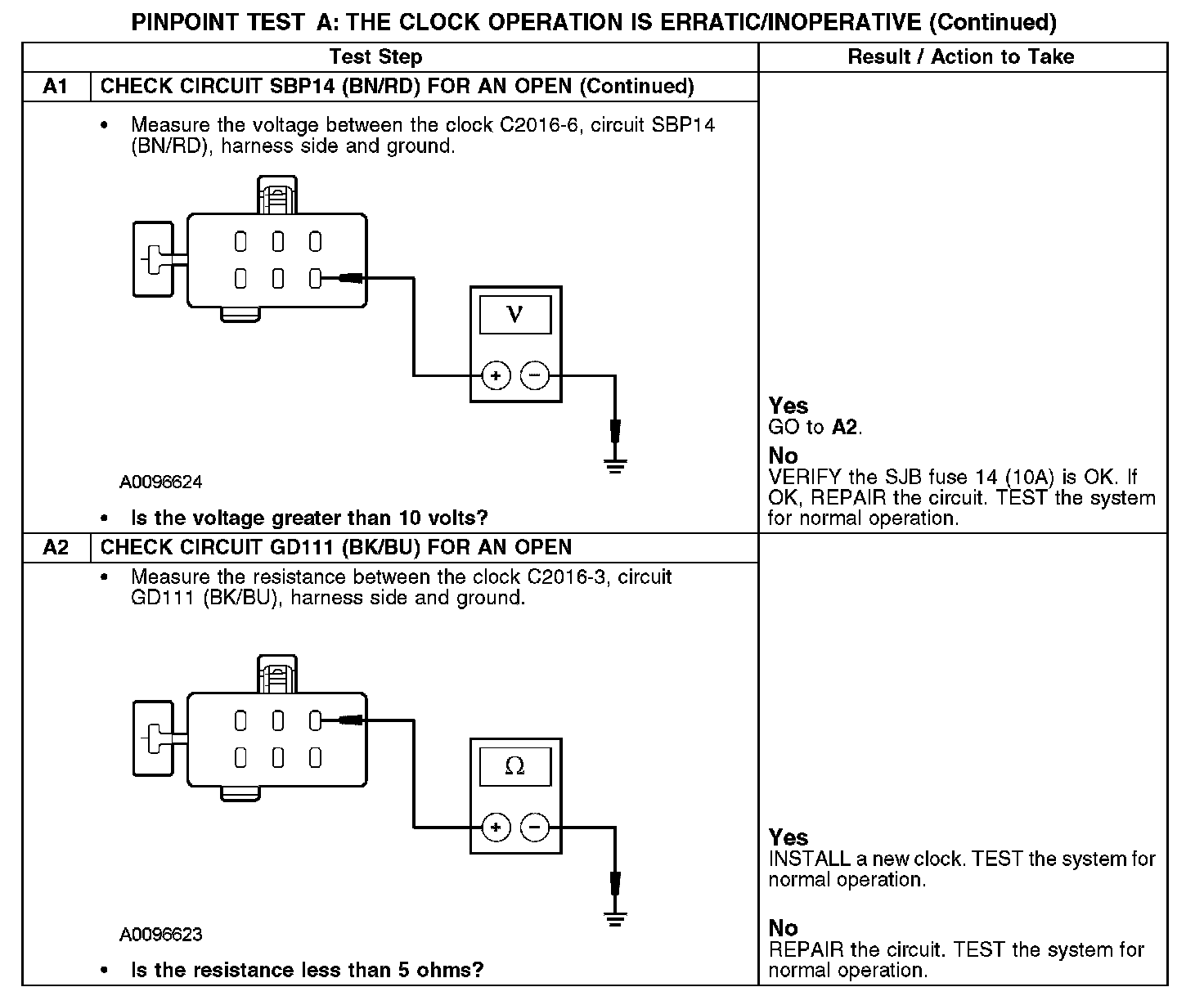

A1-A2:
