Center Mounted Brake Lamp: Service and Repair

HIGH MOUNTED STOPLAMP

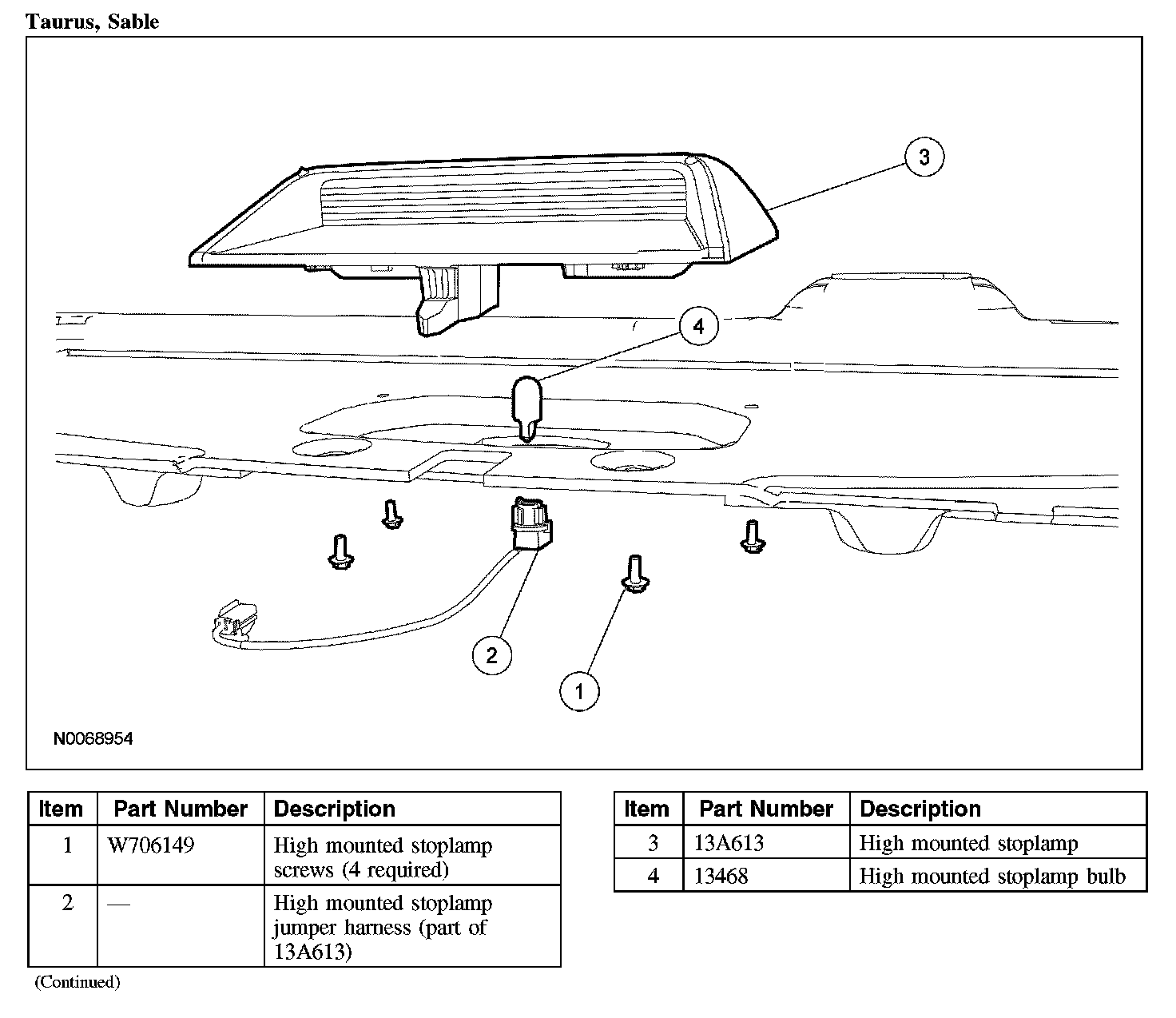

Taurus, Sable:

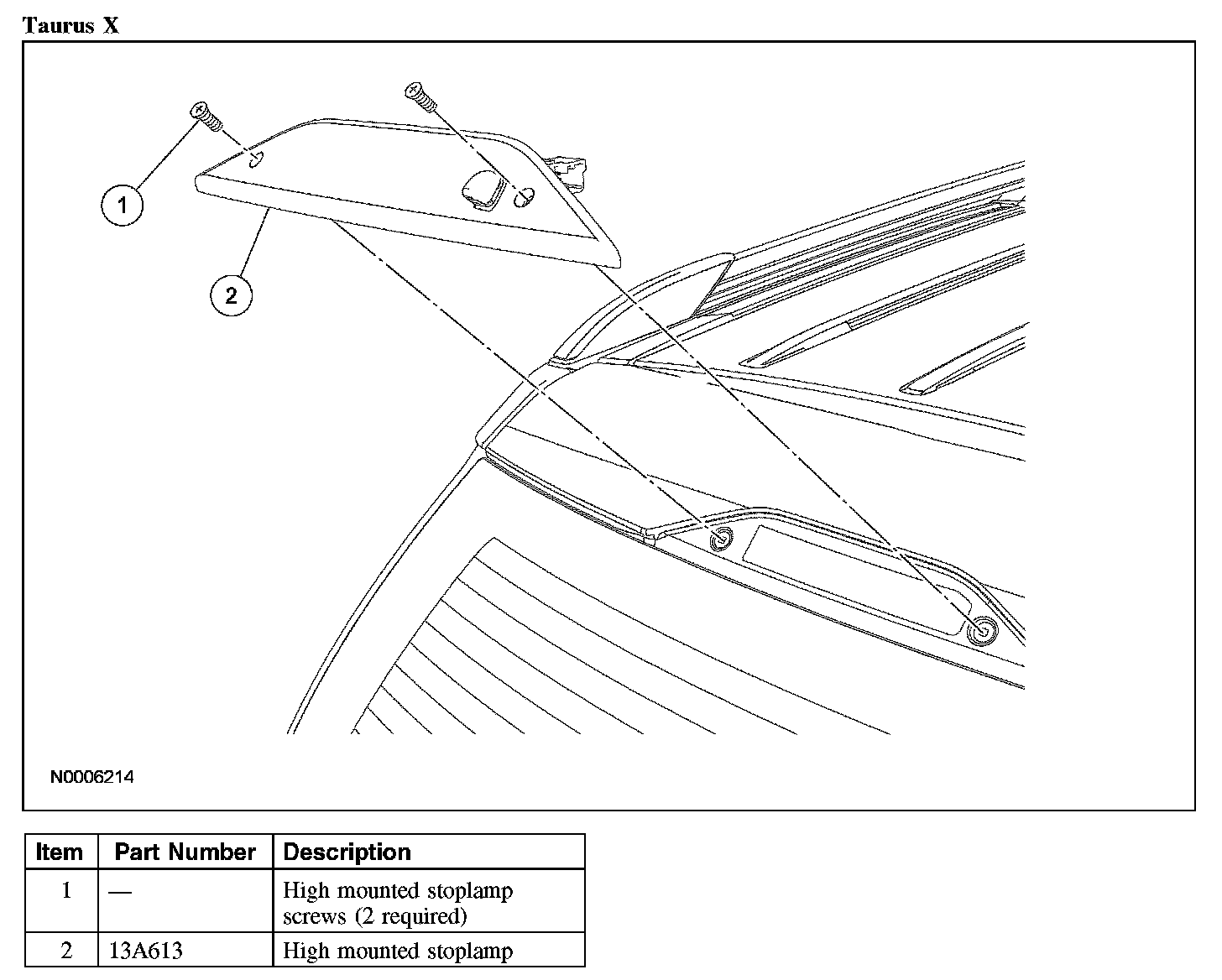

Taurus X:

Removal and Installation

Taurus, Sable
1. Remove the parcel shelf.
2. Remove the 4 screws and the high mounted stoplamp.
- Separate the bulb holder from the high mounted stoplamp.

Taurus X
3. Remove the 2 screws and the high mounted stoplamp.
- Disconnect the electrical connector and the washer hose.

All vehicles
4. To install, reverse the removal procedure.
