PINPOINT TEST X: THE DAYTIME RUNNING LAMPS (DRL) ARE INOPERATIVE

Normal Operation
When the ignition switch is in the RUN position, the headlamps are not on (from the autolamp system or manual control from the headlamp switch), the transaxle is not in PARK (P), the SJB provides a pulse-width modulated (PWM) voltage to the low beam headlamps. This illuminates the headlamps at a reduced intensity.

This pinpoint test is intended to diagnose the following:
- Exterior lighting system input/output
- SJB configuration
- Ignition switch input
- Transaxle gear input
- SJB

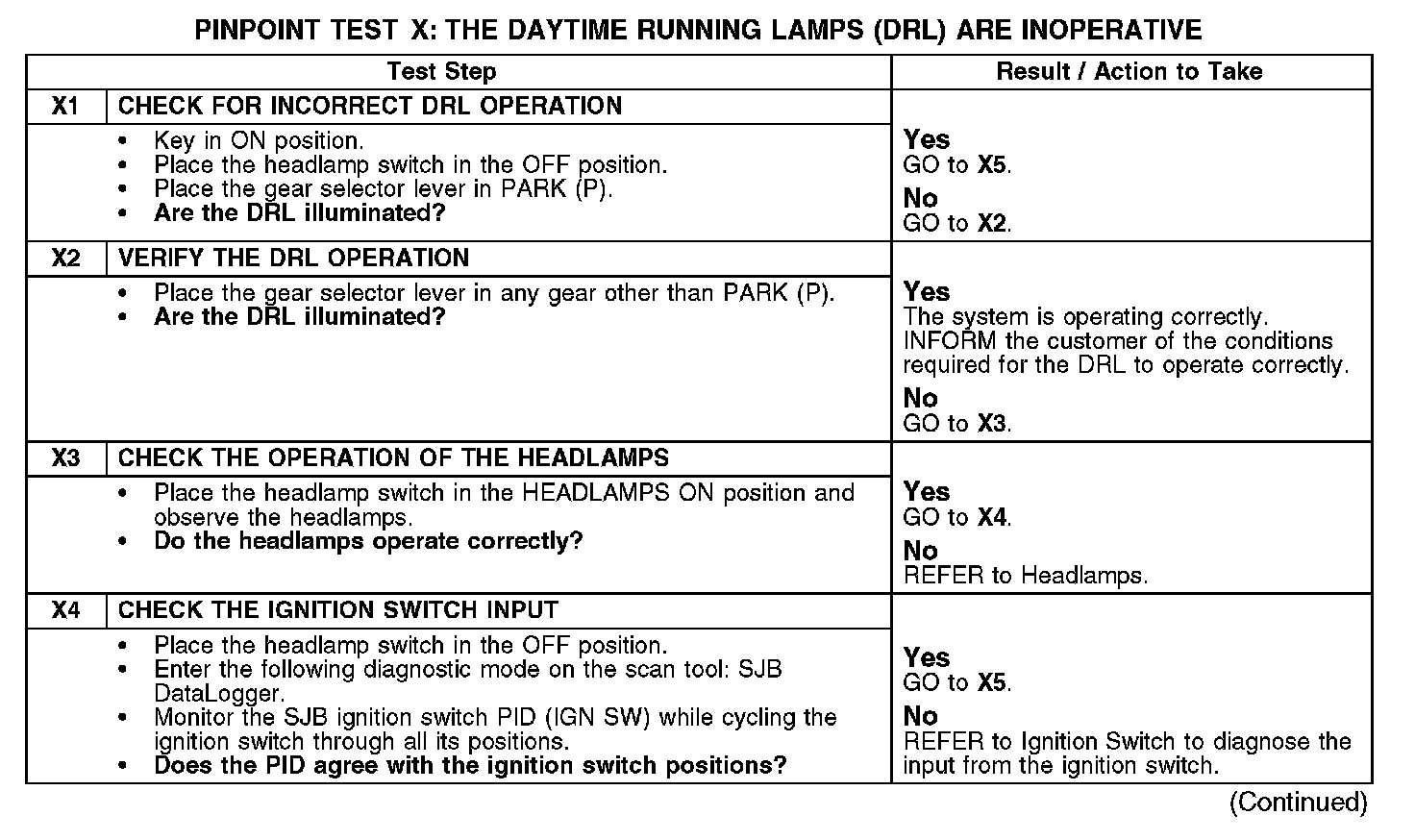

X1-X4:

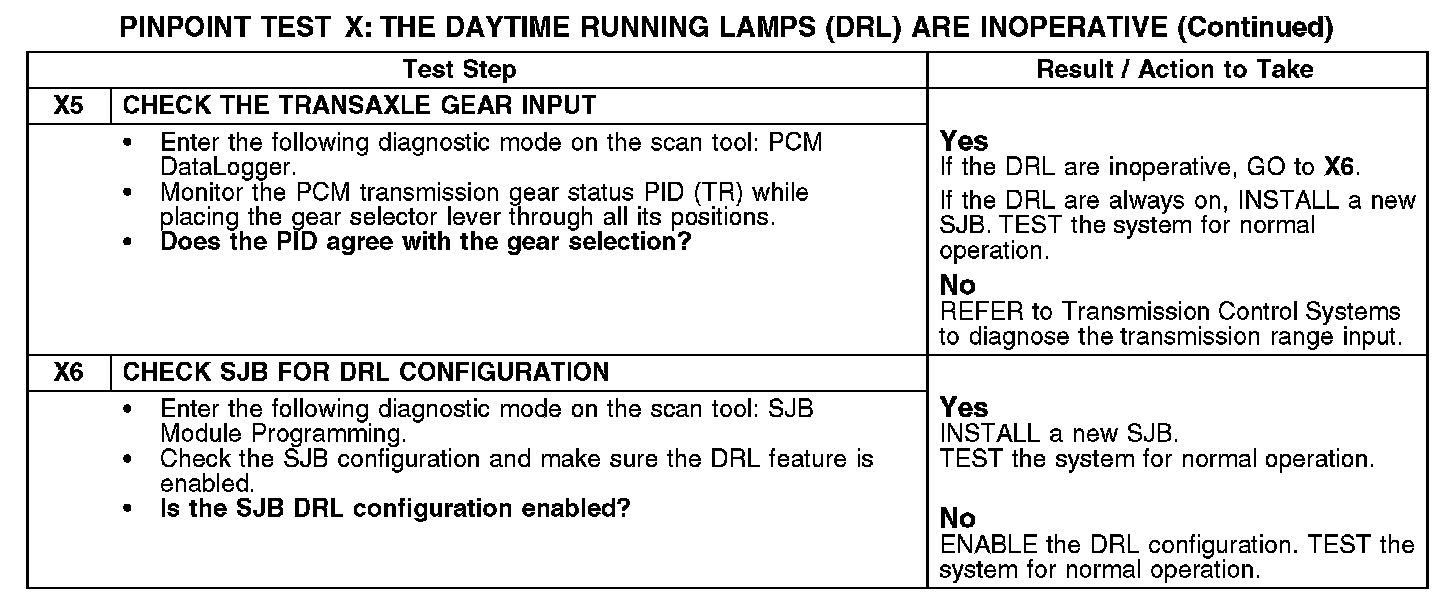

X5-X6:
