Rear

Wheel Bearing and Wheel Hub

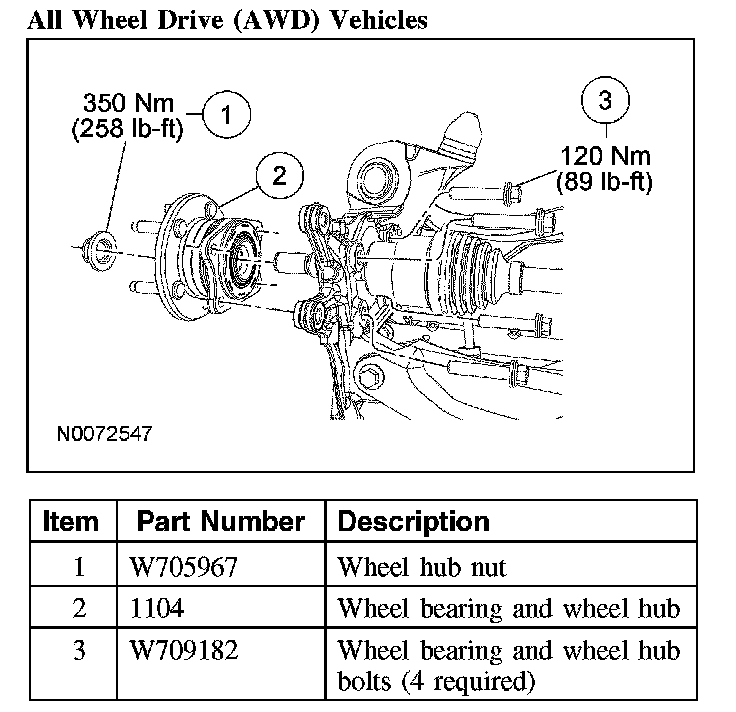

All Wheel Drive (AWD) Vehicles

All Wheel Drive (AWD) Vehicles:

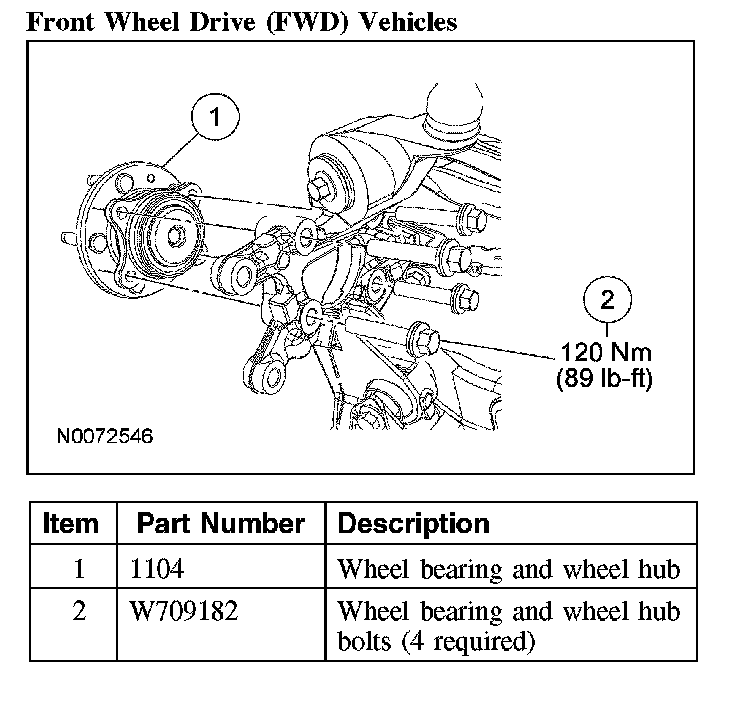

Front Wheel Drive (FWD) Vehicles

Front Wheel Drive (FWD) Vehicles:





Removal and Installation

All vehicles

1. Remove the brake disc.
2. Remove and discard the wheel bearing and wheel hub bolts.
^ To install, tighten to 120 Nm (89 lb-ft).
3. If equipped, remove the wheel speed sensor bolt and position the sensor aside.
^ To install, tighten to 14 Nm (10 lb-ft). All wheel drive (AWD) vehicles
4. Remove and discard the wheel hub nut.
^ To install, tighten to 350 Nm (258 lb-ft).
5. Using the special tool, press the axle shaft out of the hub.





All vehicles

6. NOTE: Always install new suspension fasteners.

To install, reverse the removal procedure.
