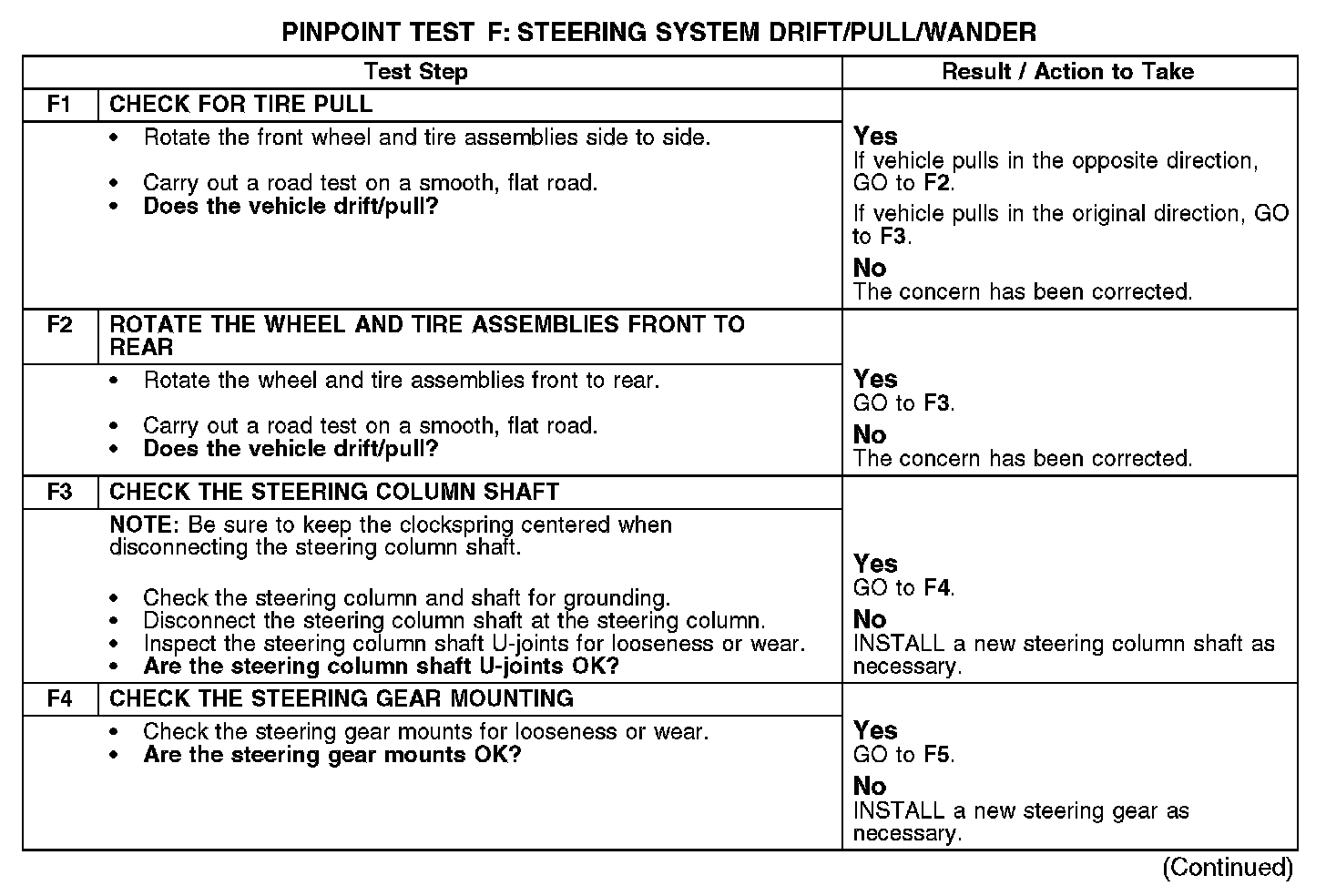

Test F: Steering System Drift/Pull/Wander
Pinpoint Test F: Steering System Drift/Pull/Wander This pinpoint test is intended to diagnose the following: ^
Steering gear ^
Intermediate shaft
^
Intermediate shaft U-joints
^
Steering gear mounts
^
Suspension components
F1-F4:

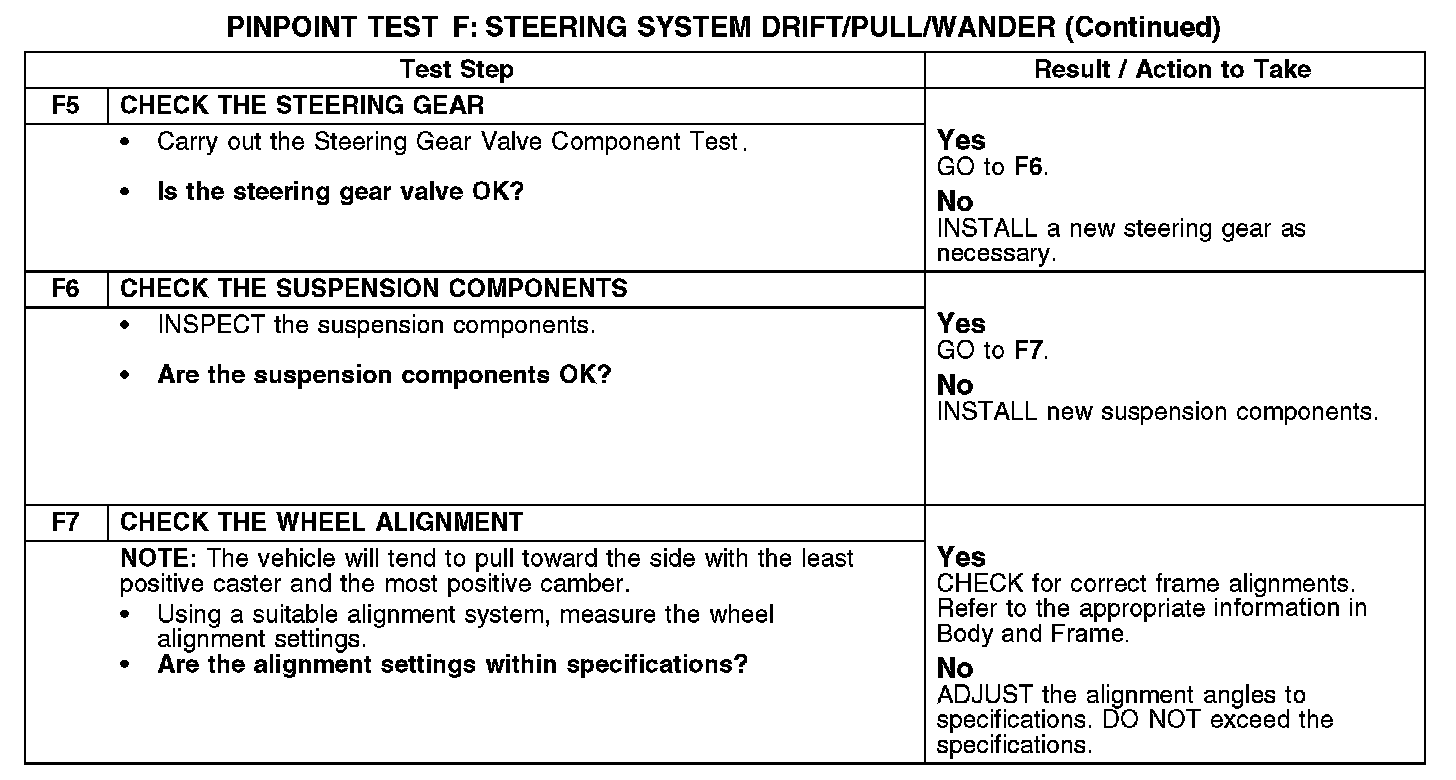

F5-F7:
