PCV Valve Hose: Service and Repair




Crankcase Ventilation Tube

LH Crankcase Ventilation Tube










RH Crankcase Ventilation Tube









Removal and Installation

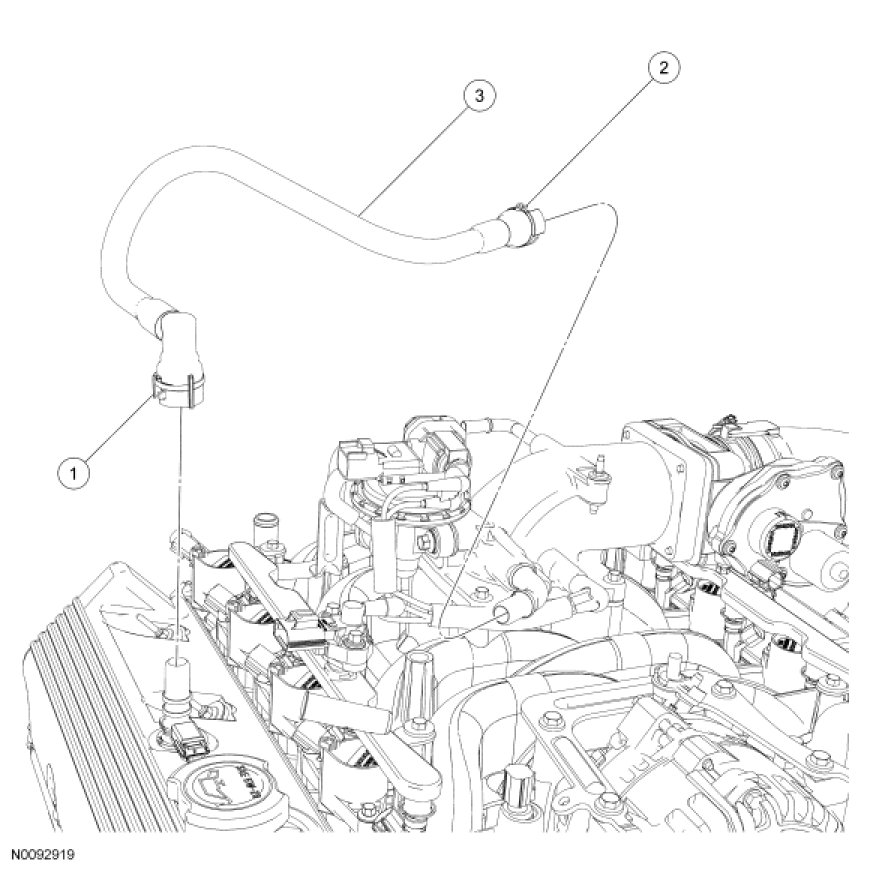

LH crankcase ventilation tube

1. Disconnect the LH crankcase ventilation tube-to-Air Cleaner (ACL) outlet pipe quick connect coupling.

2. Disconnect the LH crankcase ventilation tube-to-valve cover fitting quick connect coupling and remove the tube.

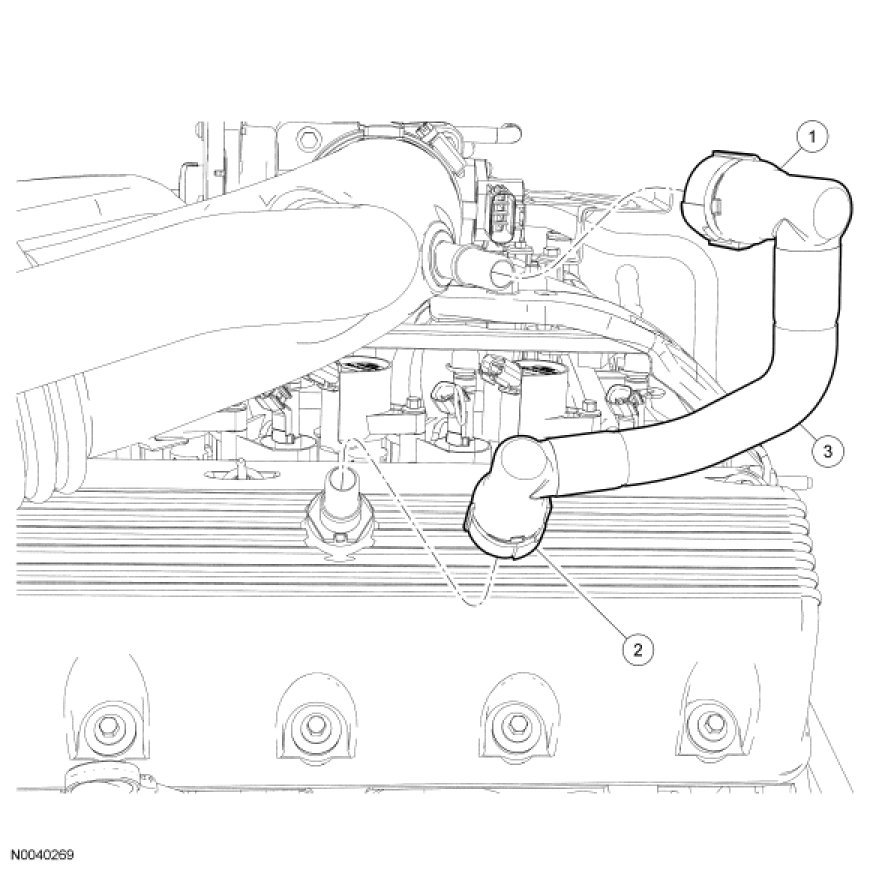

RH crankcase ventilation tube

3. Disconnect the RH crankcase ventilation tube-to-PCV valve quick connect coupling.

4. Disconnect the RH crankcase ventilation tube-to-Throttle Body (TB) spacer quick connect coupling and remove the tube.

RH and LH crankcase ventilation tubes

5. To install, reverse the removal procedure.
