Transmission Mount: Service and Repair




4R70E/4R75E

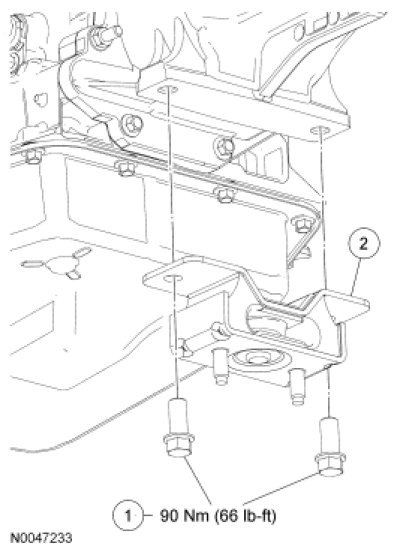

Transmission Insulator and Retainer









Removal

1. WARNING: Before servicing a vehicle equipped with a fire suppression system, depower the system by following the procedure in Fire Suppression System. Failure to follow the instructions may result in serious personal injury Procedures.
Remove the transmission support crossmember. For additional information, refer to Transmission Support Crossmember Service and Repair.

2. Remove the transmission support insulator.





3. To install, reverse the removal procedure.
- Tighten to 90 Nm (66 lb-ft).





4. WARNING: If the vehicle is equipped with a fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System. Failure to follow these instructions may result in serious personal injury Procedures.
If equipped with a fire suppression system, repower the system.
