Auxiliary Input / Output Jack: Service and Repair




Audio Input Jack

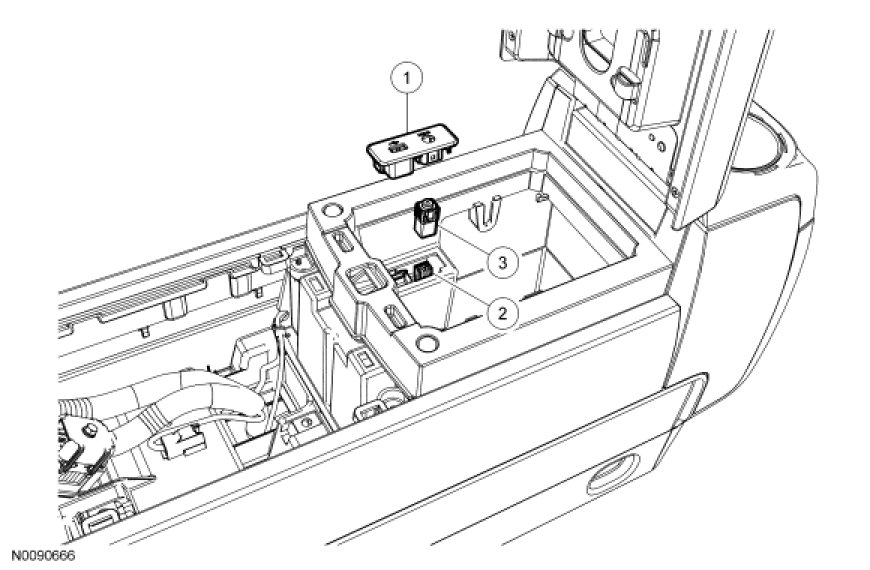

NOTE: Vehicle with the SYNC system shown, others similar.










Removal and Installation

1. Open the floor console stowage bin door.

2. Using a suitable flat-bladed tool, remove the audio input jack bezel by prying straight upward.
- Disconnect the audio input jack electrical connector and the Universal Serial Bus (USB) cable, if equipped.

3. Release the tabs and remove the audio input jack.





4. To install, reverse the removal procedure.
