Power Trunk / Liftgate Lock Switch: Service and Repair




Liftgate Release Switch

Expedition










Navigator









Removal and Installation

All vehicles

1. Remove the liftgate trim panel.
- Position the water shield aside.

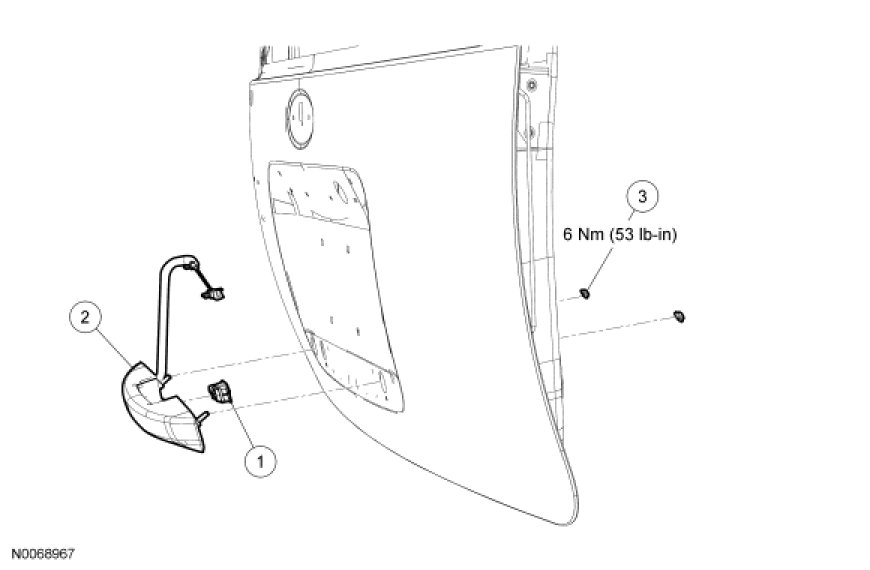

Expedition

2. Remove the 2 nuts and the liftgate release handle.
- Disconnect the electrical connector.

- To install, tighten to 6 Nm (53 lb-in).

3. Remove the liftgate release switch.
- Disconnect the electrical connector.

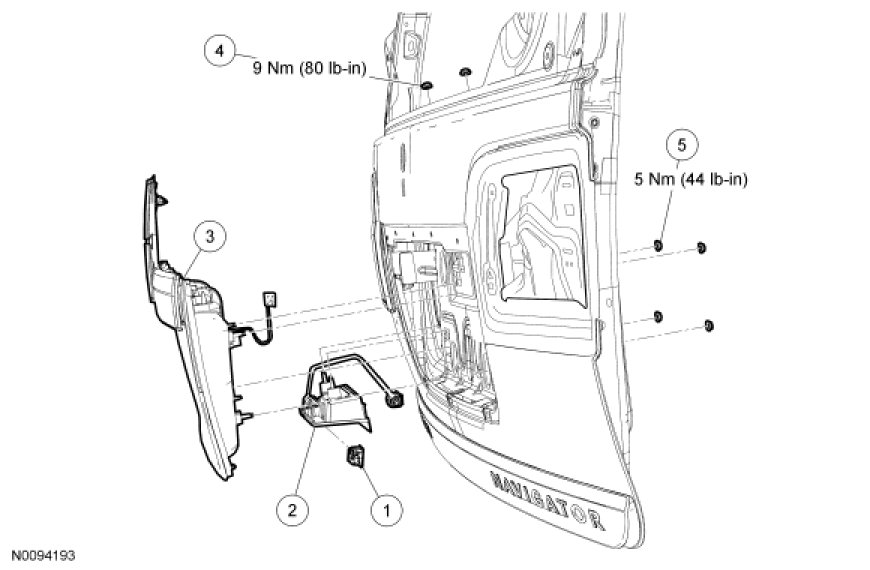

Navigator

4. Remove the liftgate parking lamps.

5. Remove the 6 nuts and the license plate housing.
- Disconnect the electrical connector.

- To install, tighten to 5 Nm (44 lb-in).

6. Remove the 2 nuts and the liftgate release switch housing.
- Disconnect the electrical connector.

- To install, tighten to 9 Nm (80 lb-in).

7. Remove the liftgate release switch.
- Disconnect the electrical connector.

All vehicles

8. To install, reverse the removal procedure.
