Exterior Mirror Glass




Exterior Mirror Glass

Removal and Installation

NOTICE: Failure to correctly remove the exterior mirror glass may result in exterior mirror motor damage.

NOTE: If equipped with power folding mirrors, they must be synchronized any time the mirrors have been folded or unfolded without using the mirror control switch. For additional information, refer to Exterior Mirror Motor Synchronization - Power Folding Programming and Relearning.

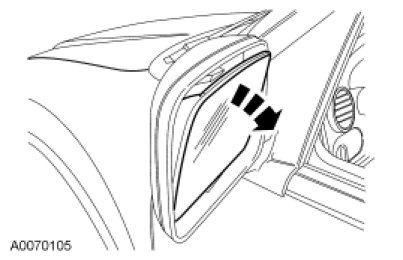

1. Position the exterior mirror glass in a downward position to obtain a gap at the edge of the mirror.





2. WARNING: Place a shop towel between the hands and the exterior mirror glass for protection in case of glass breakage during mirror service. Failure to follow this instruction may result in serious personal injury.

Disengage the mirror glass.

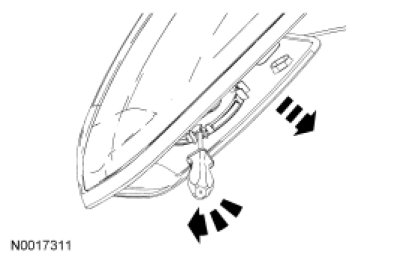

- Insert a flat-blade screwdriver between the mirror glass tabs and the mounting plate, and rotate to separate the locking tabs from the mounting plate.

- Carefully pull the top edge of the glass away from the exterior mirror housing.

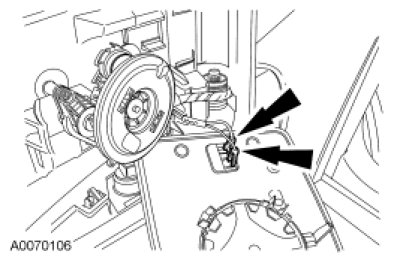

3. Disconnect the heated mirror electrical connectors and remove the glass.





4. To install, reverse the removal procedure.
- Rotate the exterior mirror glass in all directions after the installation to make sure all clips are completely attached.

- If equipped with power folding mirrors, they must be synchronized. For additional information, refer to Exterior Mirror Motor Synchronization - Power Folding Programming and Relearning.
