Fog/Driving Lamp: Service and Repair




Fog Lamp

Expedition










Navigator









Removal and Installation

NOTE: Make sure the headlamp switch and the ignition switch are in the OFF position.

Expedition

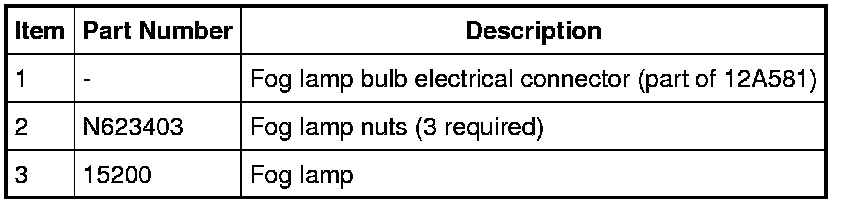

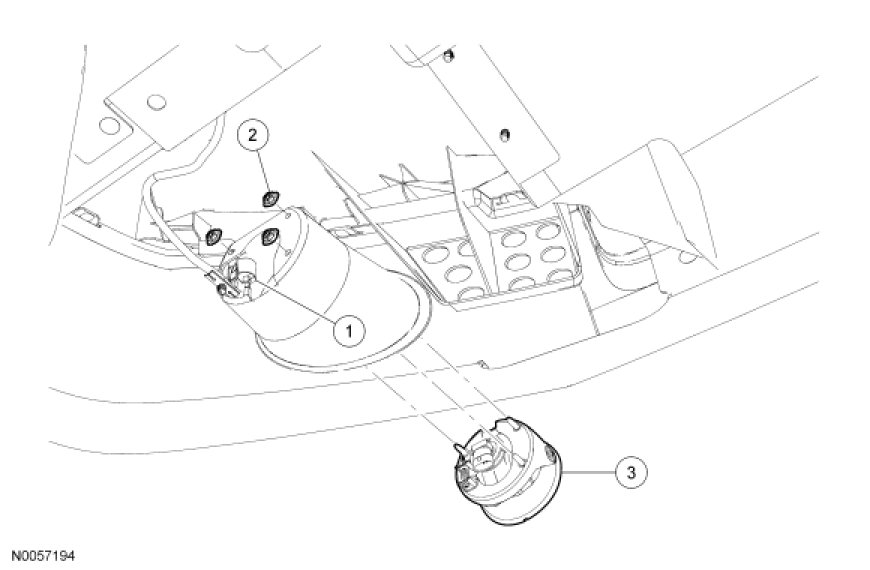

1. Remove the 3 nuts and the fog lamp.
- Disconnect the electrical connector.

Navigator

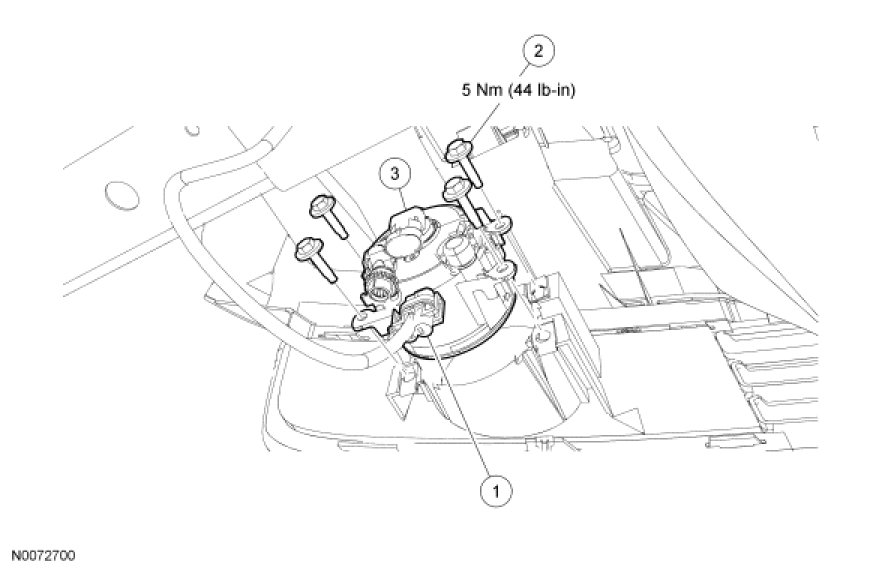

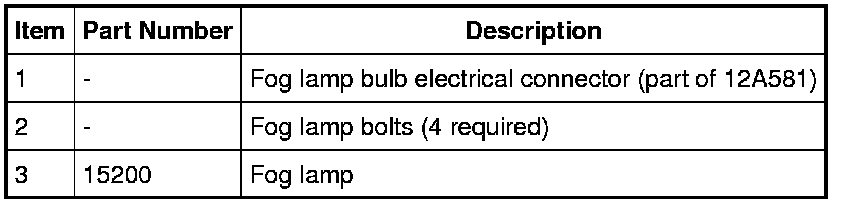

2. Remove the 4 bolts and the fog lamp.
- Disconnect the electrical connector.

- To install, tighten to 5 Nm (44 lb-in).

All vehicles

3. To install, reverse the removal procedure.
- If necessary, adjust the fog lamps. For additional information, refer to Front Fog Lamp Adjustment Adjustments.
