Audio Rear Control Unit (RCU) Module




Audio Rear Control Unit (RCU) Module

NOTE: Expedition shown, Navigator similar.










Removal and Installation

All vehicles

1. NOTE: Module configuration is required when a new audio Rear Control Unit (RCU) module is being installed.

Upload the audio RCU module configuration information to the scan tool.

Navigator

2. Remove the floor console cupholders.

3. Remove the 2 screws securing the rear trim panel to the floor console.

Expedition

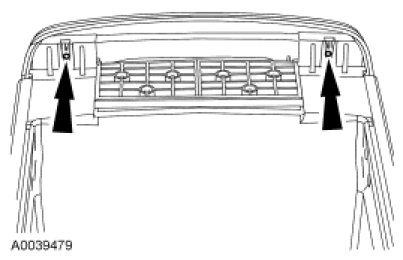

4. Remove the 2 screws under the armrest cover.





All vehicles

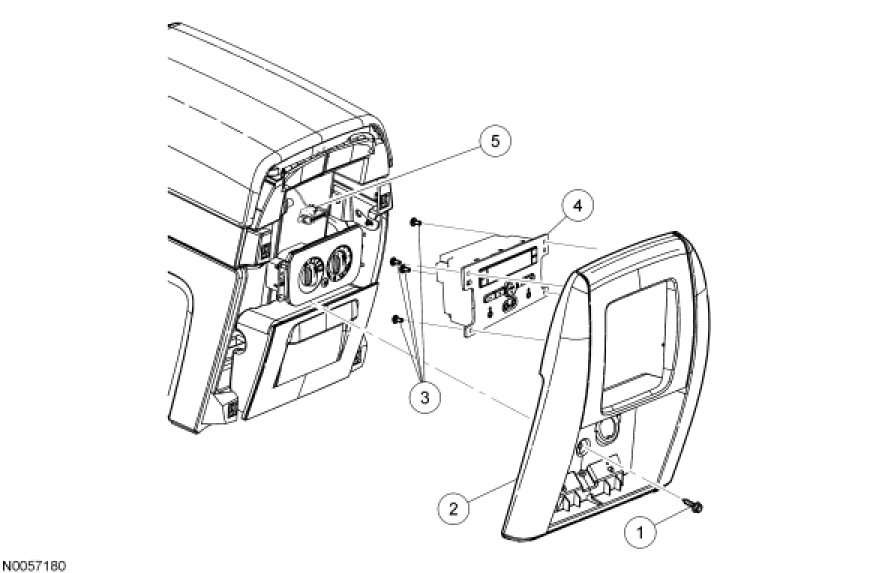

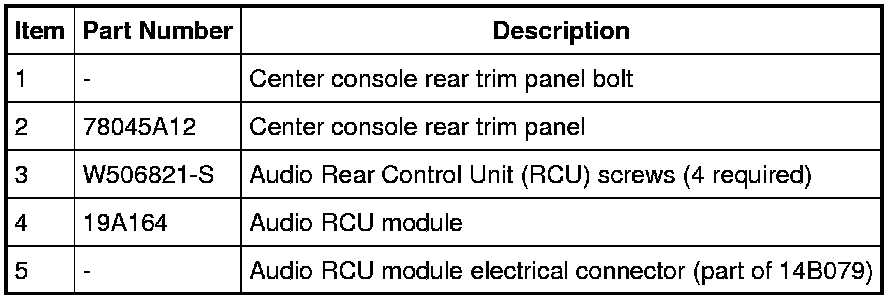

5. Remove the bolt and the center console rear trim panel.
- Disengage the pin-type retainers.

- Disconnect the audio RCU module electrical connector.

6. Remove the RCU module.
- Remove the 4 screws.

7. To install, reverse the removal procedure.
- Download the configuration information to the audio RCU module.
