Front Suspension




Front Suspension - Four Wheel Drive (4WD)

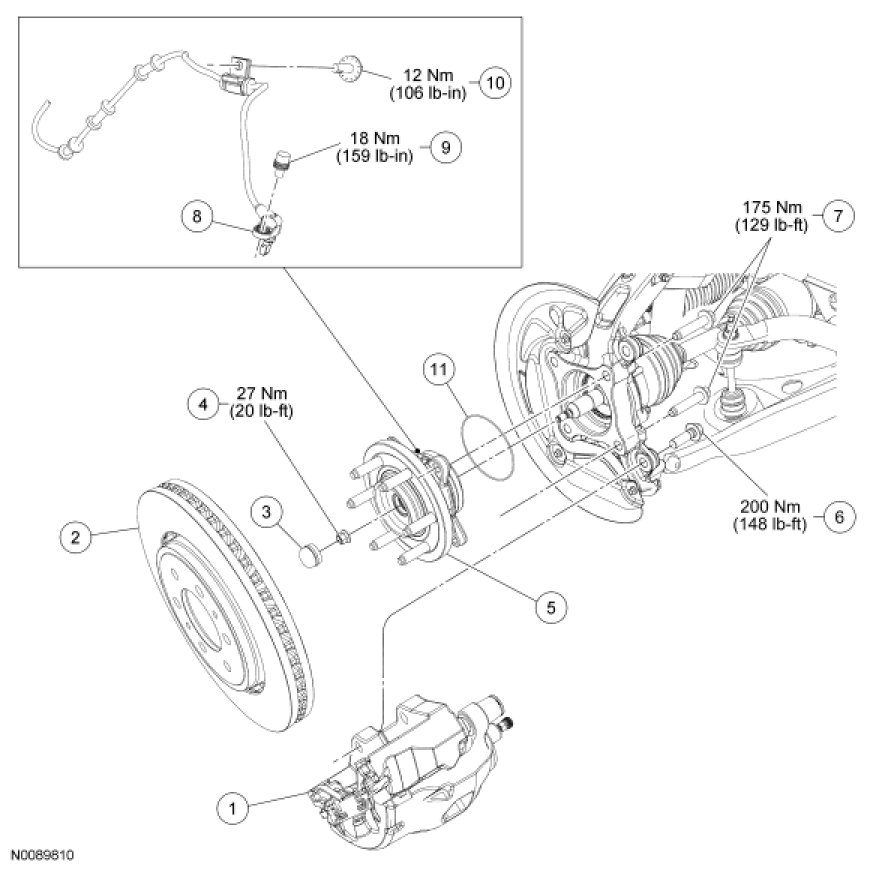

Wheel Bearing and Wheel Hub









Discard the old halfshaft nut.
Install, tighten the new nut to 27 Nm (20 lb-ft)

NOTICE: If the original wheel bearing and wheel hub is being installed, install a new wheel hub O-ring seal or damage to the wheel bearing may occur.

NOTICE: Verify the spline engagement by checking for spline lash before installing the halfshaft nut or damage to the halfshaft and wheel bearing and hub may occur.
