Power Running Board (PRB) Step
Power Running Board (PRB) StepRemoval and Installation 1.
With the vehicle in NEUTRAL, position it on a hoist.
2.
NOTE: If the Power Running Board (PRB) cannot be extracted, extend the running board by hand.
Extend the PRB.
3.

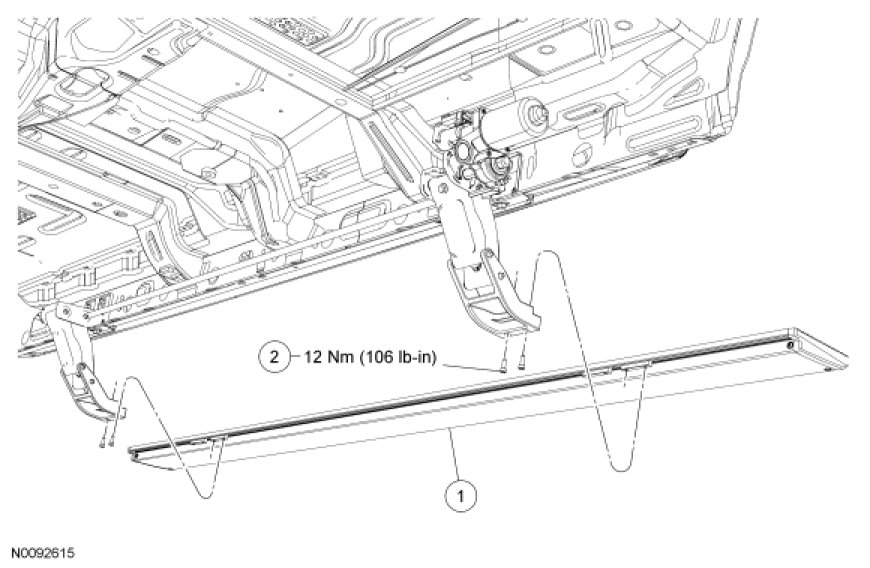

Remove the 2 front and 2 rear PRB bracket-to-step screws and the PRB step
-
To install, tighten to 12 Nm (106 lb-in).
4.
To install, reverse the removal procedure.
