Pinpoint Test H: DTC B1317

Smart Junction Box (SJB)

Pinpoint Test H: DTC B1317

Refer to Wiring Diagram Set 117, Remote Keyless Entry and Alarm for schematic and connector information. Diagrams By Number

Normal Operation

The Smart Junction Box (SJB) monitors the voltage from the battery to determine if it goes above or below specific thresholds and sets DTC B1317 in continuous memory if the SJB detects high battery voltage above 15 volts on circuit SDC04 (RD).

- DTC B1317 (Battery Voltage High) - a continuous memory DTC that sets when the SJB detects battery voltage above 15 volts on circuit SDC04 (RD).

This pinpoint test is intended to diagnose the following:

- Charging system concern
- SJB



PINPOINT TEST H: DTC B1317

NOTE: DTC B1317 may be stored in the module memory due to previous battery charging or vehicle jump starting events.

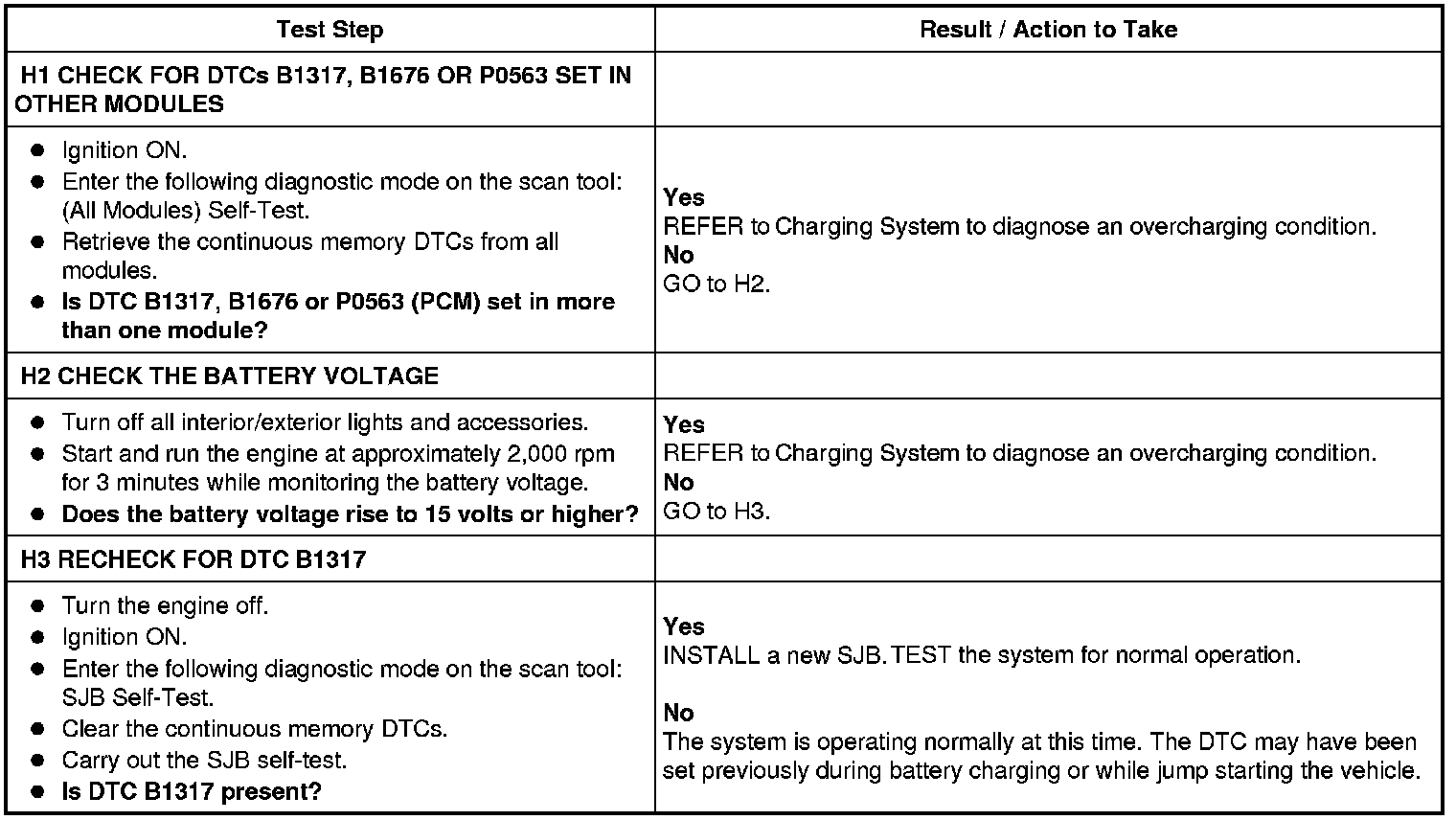

H1-H3:
