System Specifications

General Specifications (Part 1):

General Specifications (Part 2):

General Specifications (Part 3):

a The time required for the plunger to leak down 1.6 mm (0.062 in) of travel with 222 N force and leak-down fluid in the lash adjuster.

b The pin bore and crank bearing bore must be parallel and in the same vertical plane within the specified total difference when measured at the ends of a 203 mm bar, 105.5 mm on each side of
rod centerline.

Main Bearing Cap

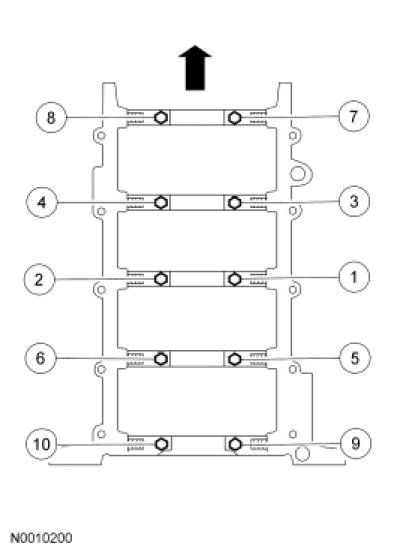

Install the 10 vertical main bearing cap fasteners and tighten in 2 stages, in the sequence shown.
- Stage 1: Tighten to 40 Nm (30 lb-ft)
- Stage 2: Tighten an additional 90 degrees

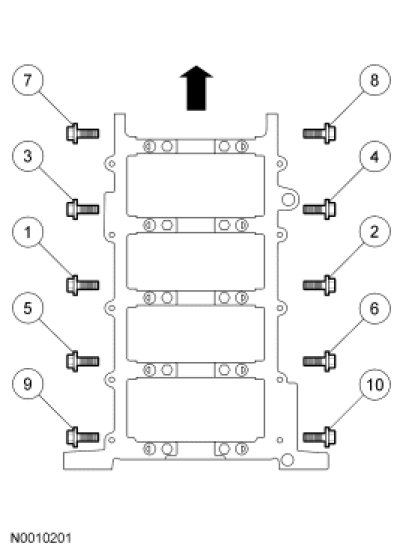

Install the 10 side bolts and tighten them in 2 stages, in the sequence shown.
- Stage 1: Tighten to 30 Nm (22 lb-ft)
- Stage 2: Tighten an additional 90 degrees

Rod Bearing Cap





Tighten the 16 bolts in 2 stages, in the sequence shown.
- Stage 1: Tighten to 43 Nm (32 lb-ft)
- Stage 2: Tighten an additional 105 degrees

Crankshaft Pulley
Using a new crankshaft pulley bolt, install the bolt and washer and tighten the bolt in 4 stages.
- Stage 1: Tighten to 90 Nm (66 lb-ft)
- Stage 2: Loosen 360 degrees
- Stage 3: Tighten to 50 Nm (37 lb-ft)
- Stage 4: Tighten an additional 90 degrees
