Generator - Single Generator

Generator - 6.4L Diesel, Single Generator

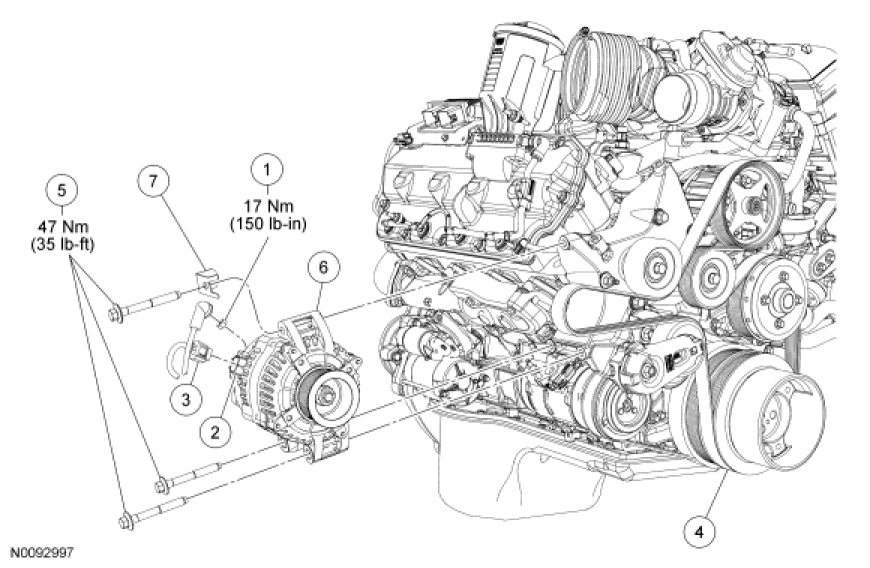

Removal and Installation

1. Disconnect the batteries.

2. Remove the Air Cleaner (ACL) assembly.

3. Remove the fender splash shield.

4. Rotate the accessory drive belt tensioner clockwise and remove the drive belt from the generator pulley.

5. Remove the nut and position the generator B+ terminal aside.
- To install, tighten to 17 Nm (150 lb-in).

6. Disconnect the generator electrical connector.

7. Remove the 2 lower bolts to the generator.
- To install, tighten to 47 Nm (35 lb-ft).

8. Remove the upper bolt and the generator.
- To install, tighten to 47 Nm (35 lb-ft).

9. To install, reverse the removal procedure.
