Engine

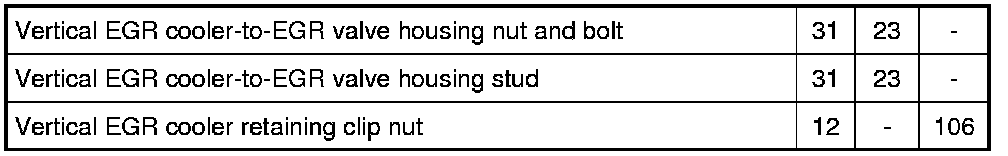

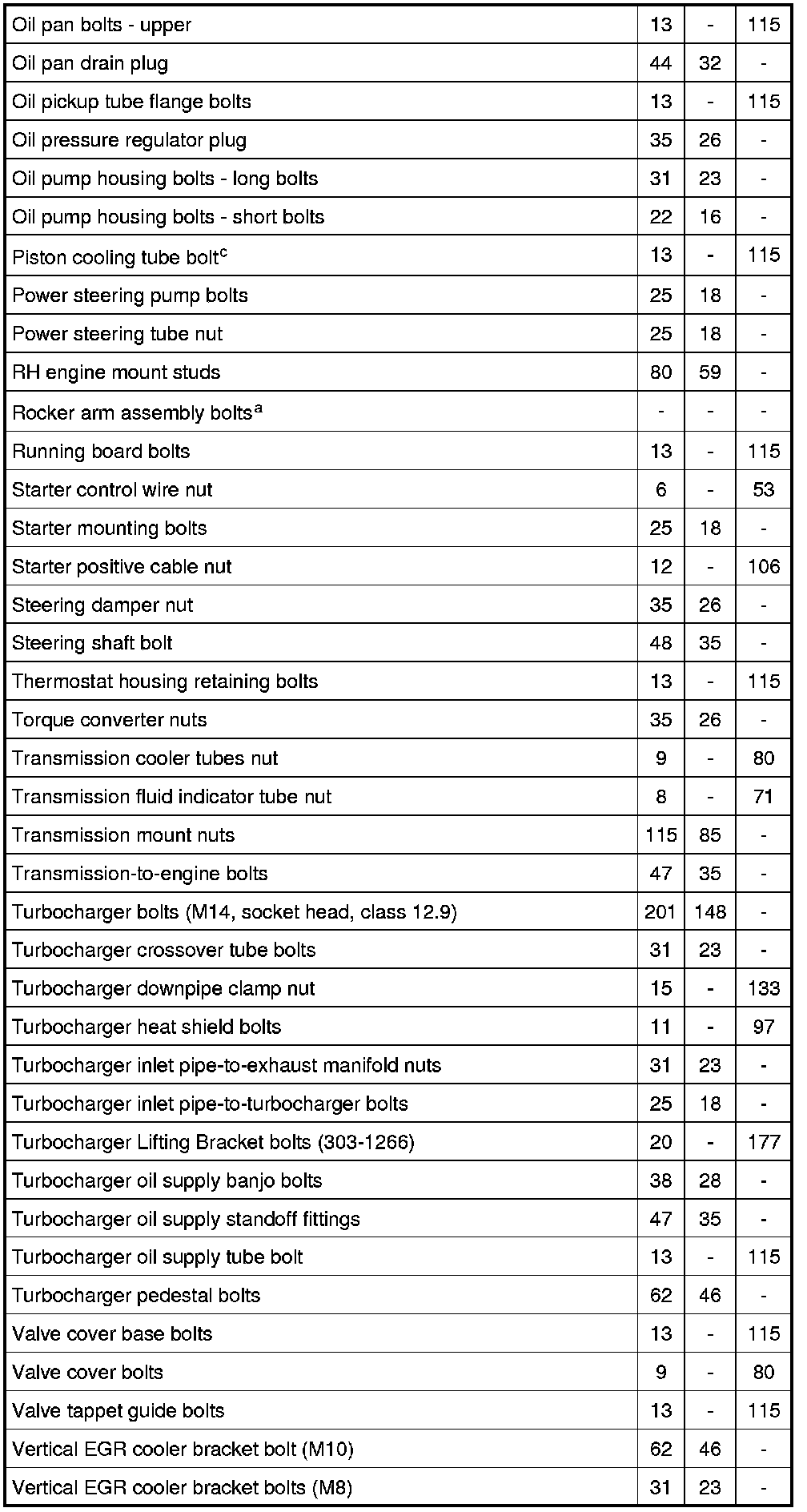

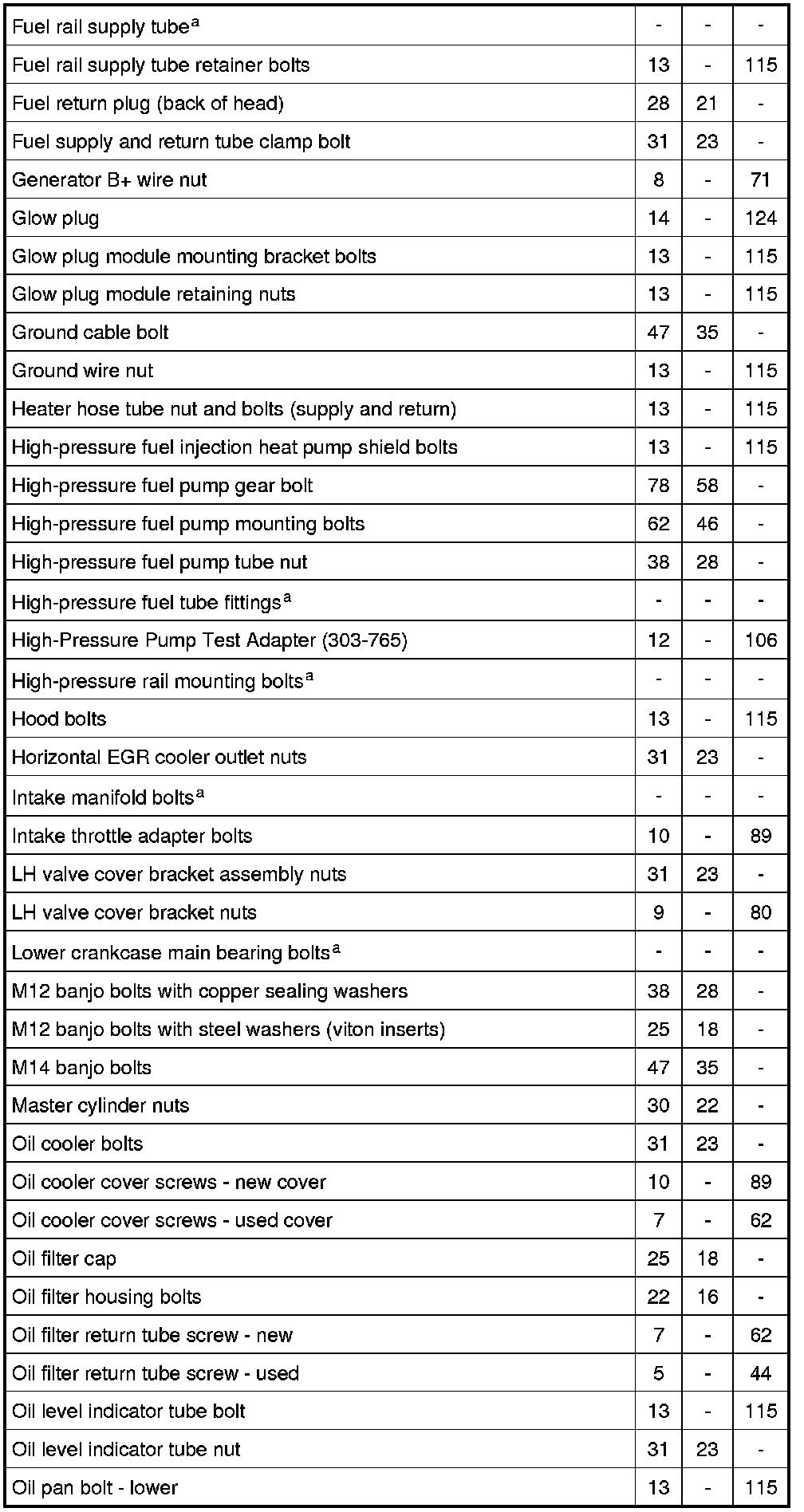

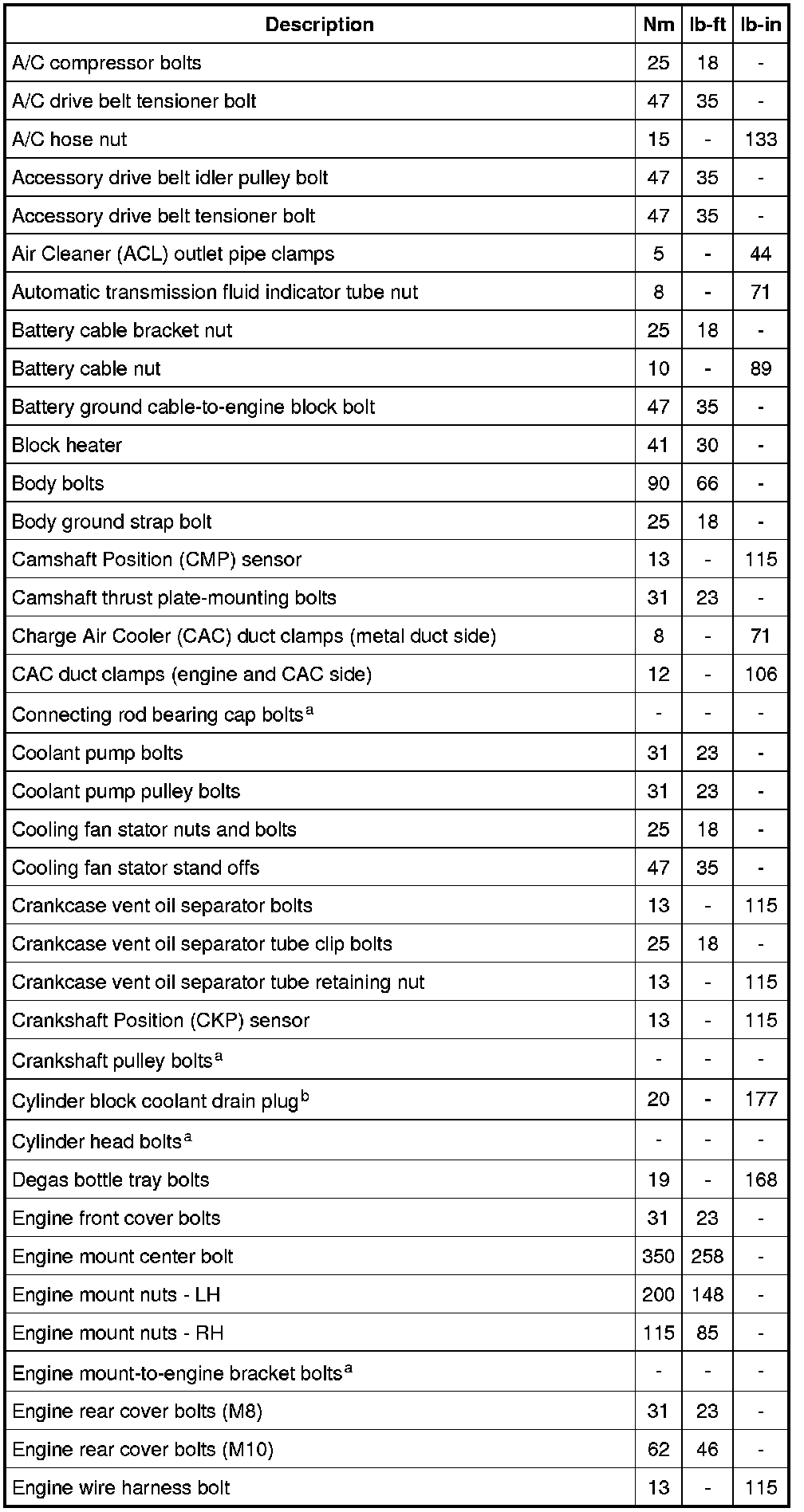

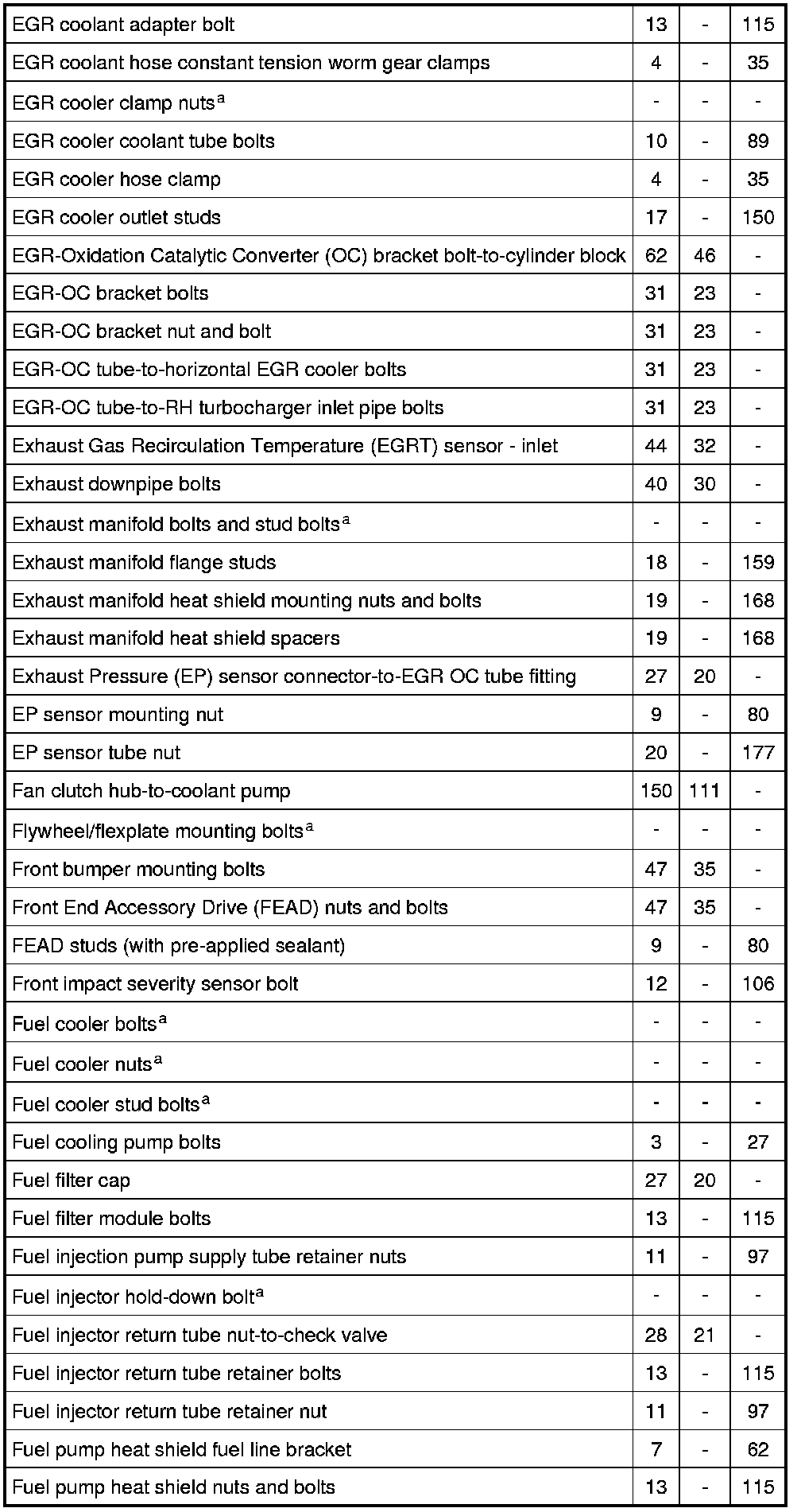

Torque Specificationsa Refer to the procedure.
b Apply clean engine oil before installing.
c Apply Threadlock 262 to the bolt threads prior to installing.

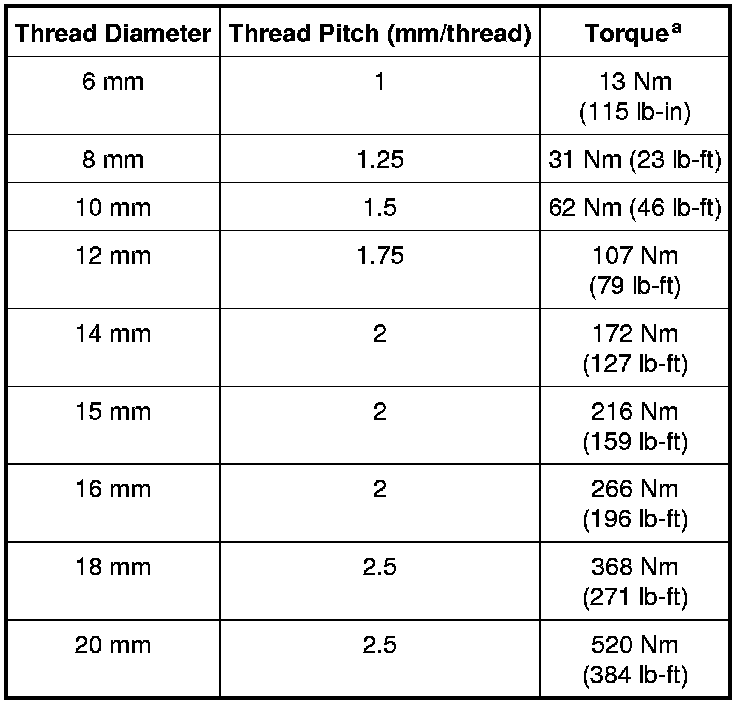

Standard Torques - Class 10.9 Metric Bolts and Studsa Tolerances are ± 10% of nominal value.
Standard Torques - Class 12.9 Metric Bolts and Studsa Tolerances are ± 10% of nominal value.
