Test AF: Glow Plug System

PINPOINT TEST AF: GLOW PLUG SYSTEM

Notice And Note:

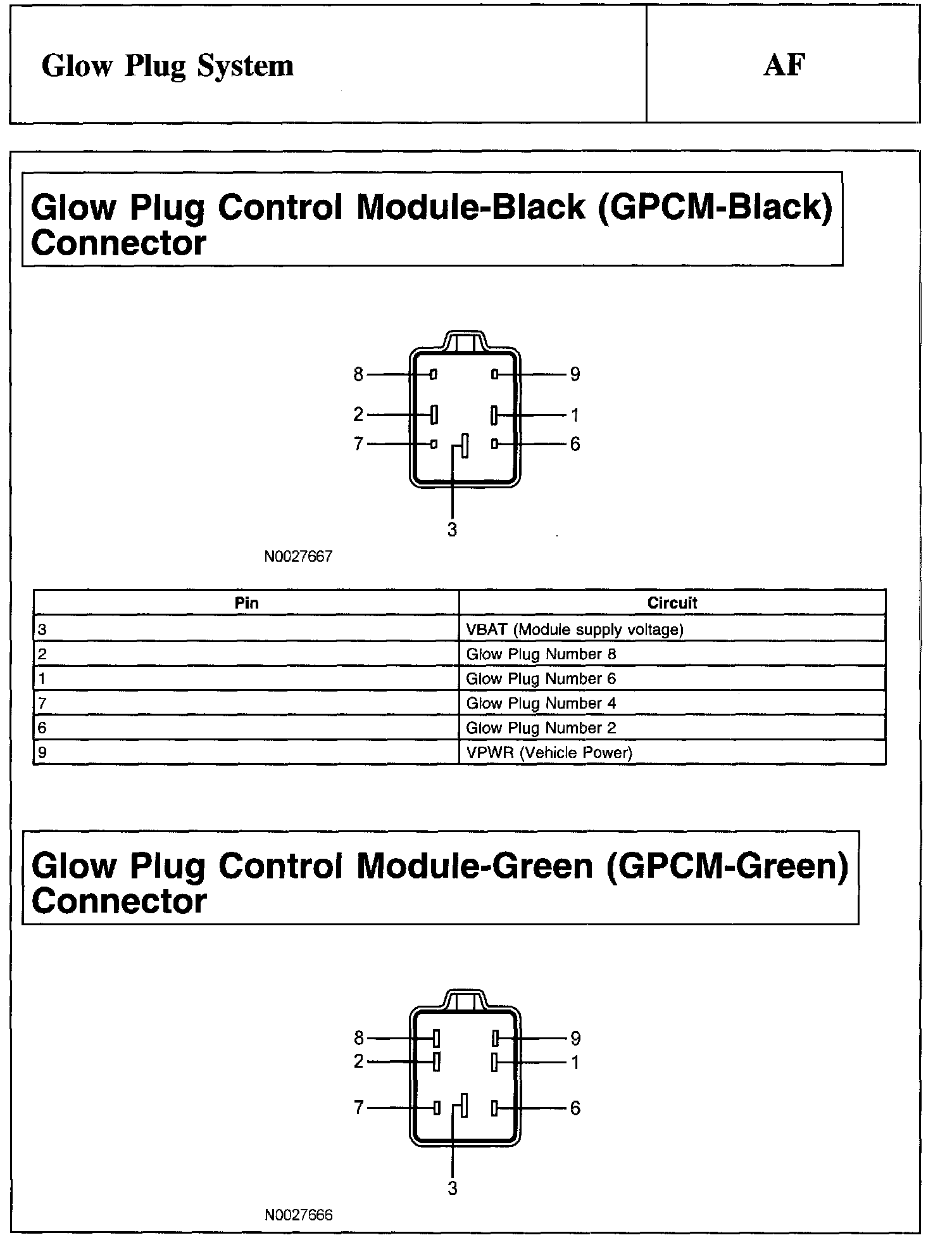

Glow Plug Control Module-Black (GPCM-Black) Connector And Glow Plug Control Module-Green (GPCM-Green) Connector:

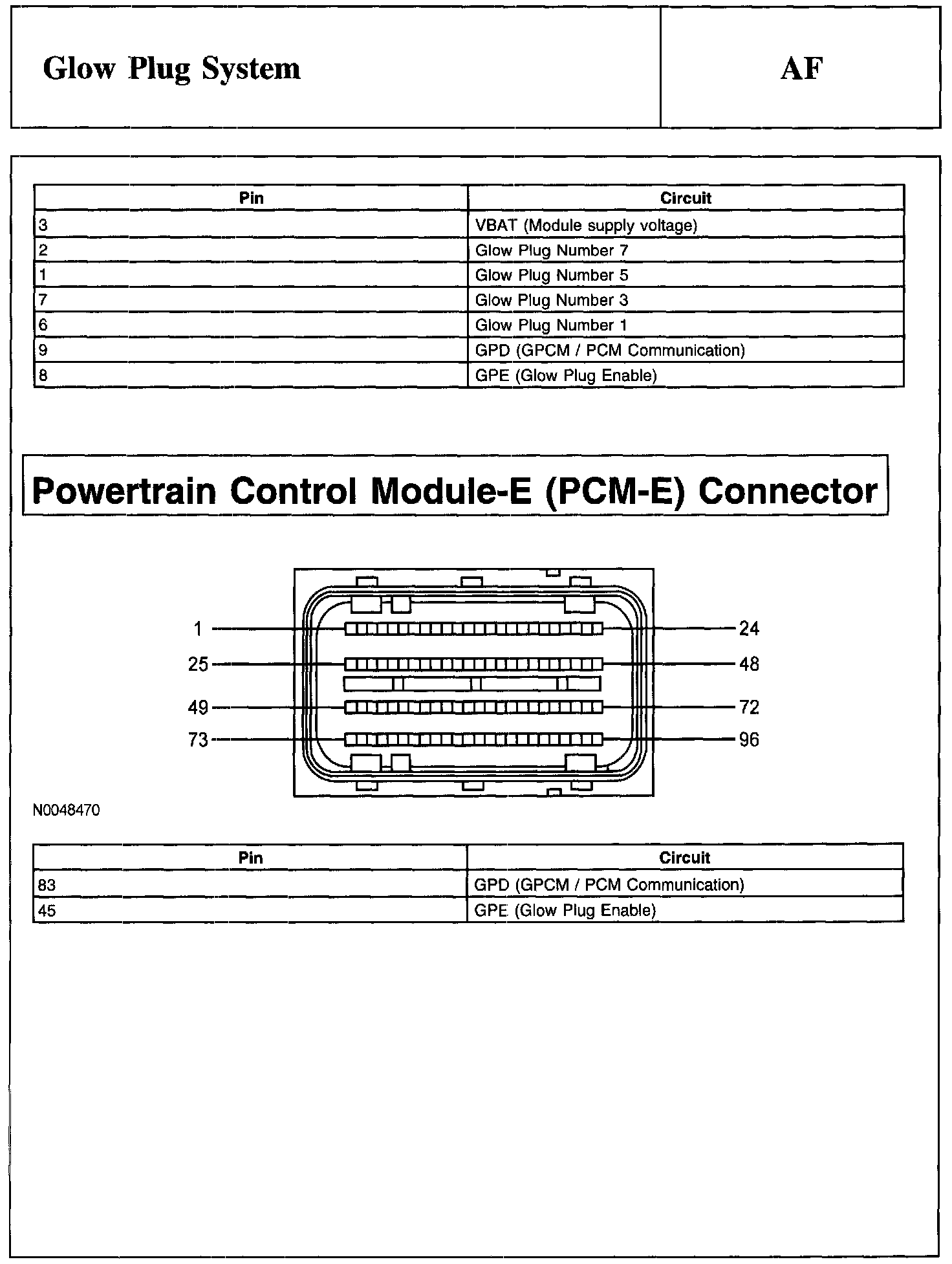

Glow Plug Control Module-Green (GPCM-Green) Connector And Powertrain Control Module-E (PCM-E) Connector:

Test AF: Glow Plug System

Notice And Note:

Glow Plug Control Module-Black (GPCM-Black) Connector And Glow Plug Control Module-Green (GPCM-Green) Connector:

Glow Plug Control Module-Green (GPCM-Green) Connector And Powertrain Control Module-E (PCM-E) Connector:

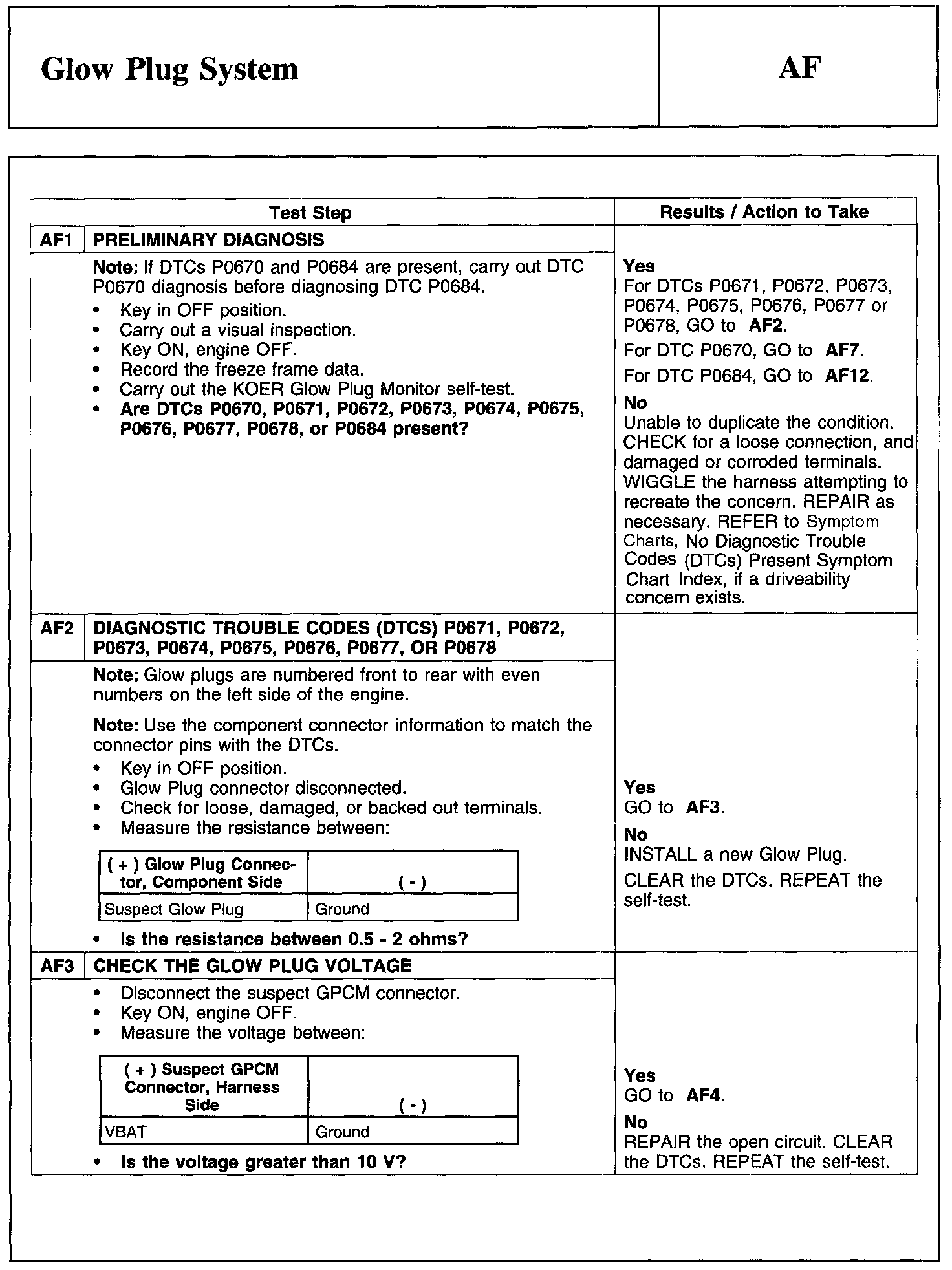

AF1-AF3:

AF4-AF7:

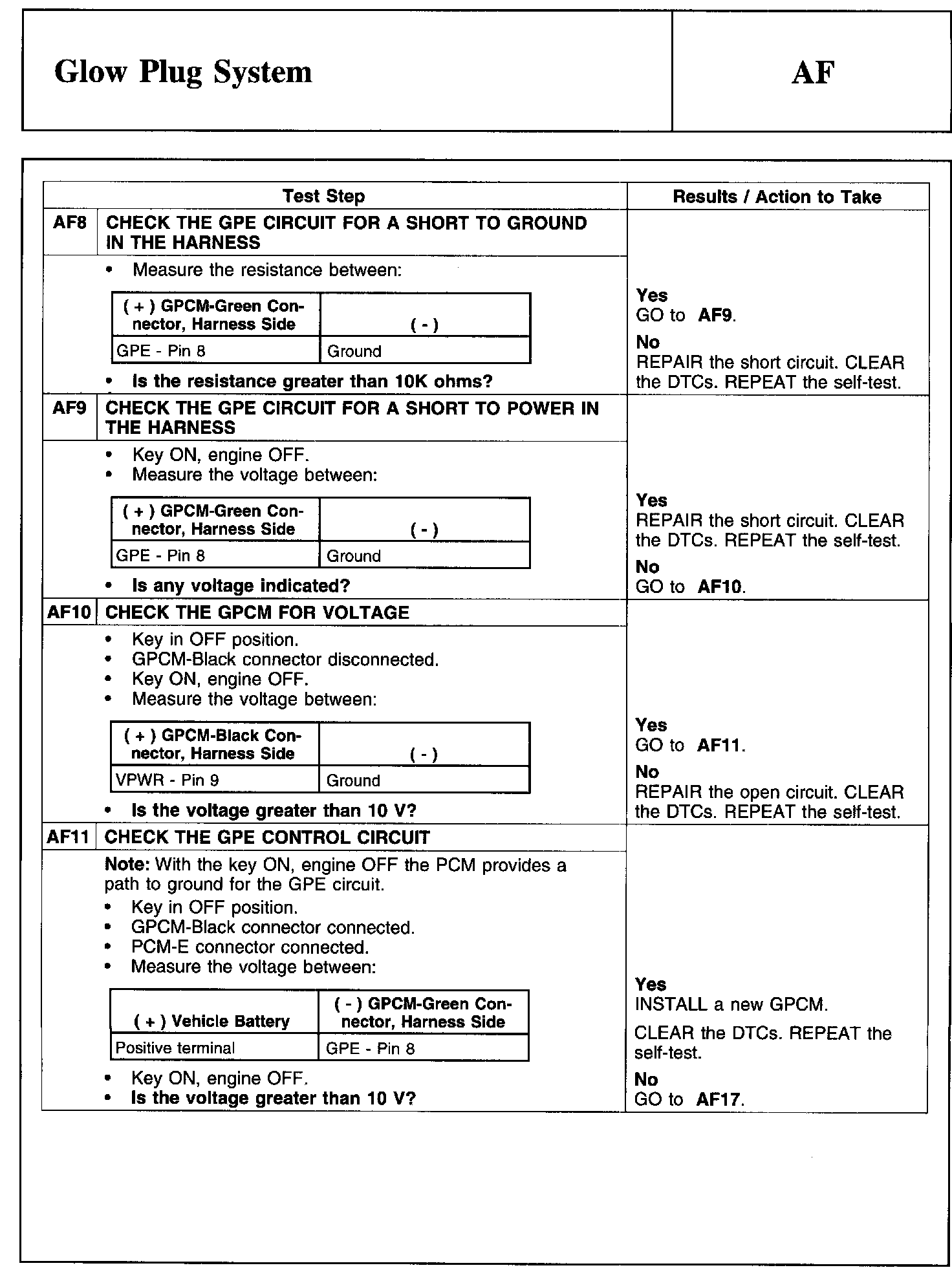

AF8-AF11:

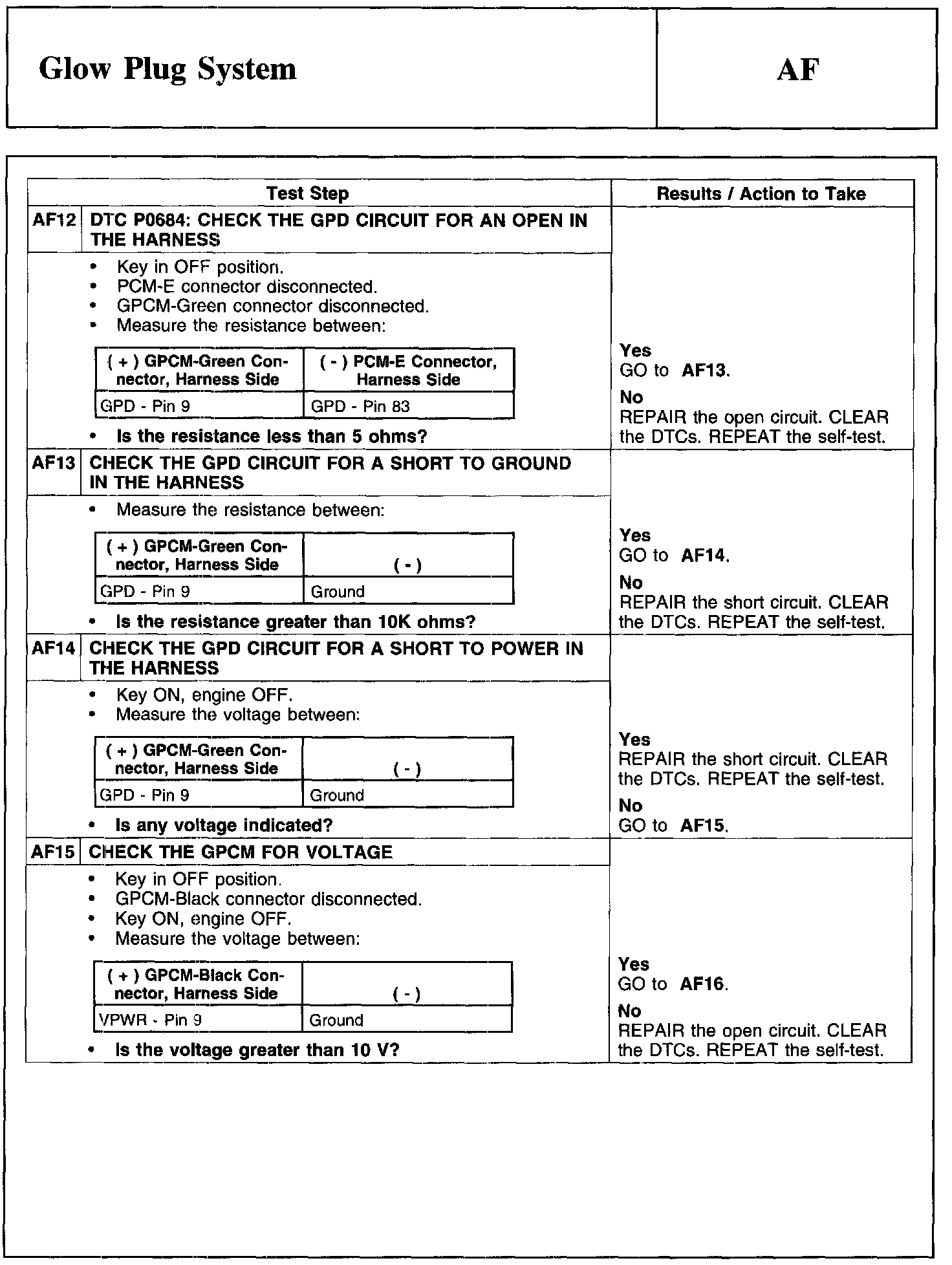

AF12-AF15:

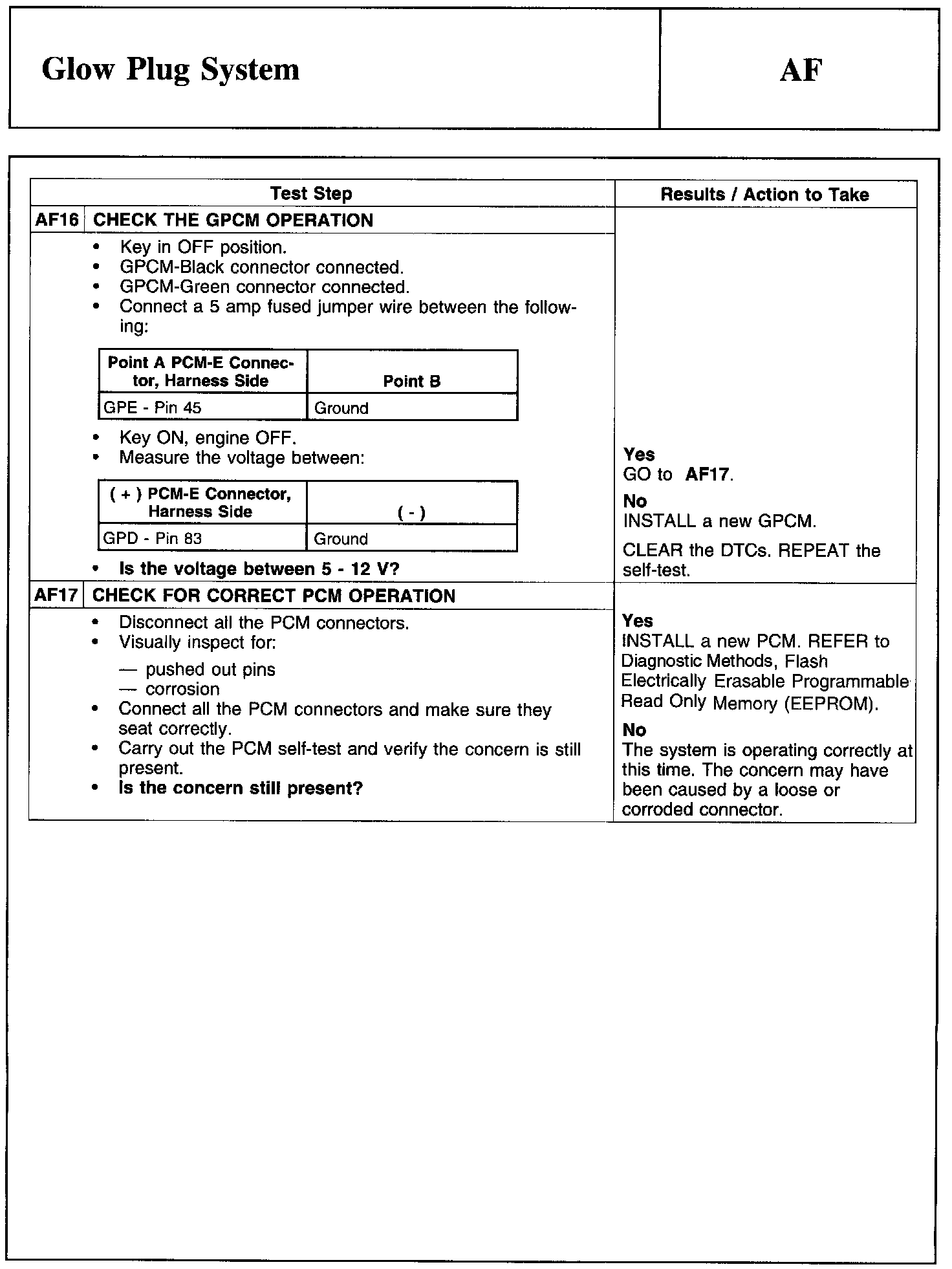

AF16-AF17:
