Glow Plug Control Module: Service and Repair

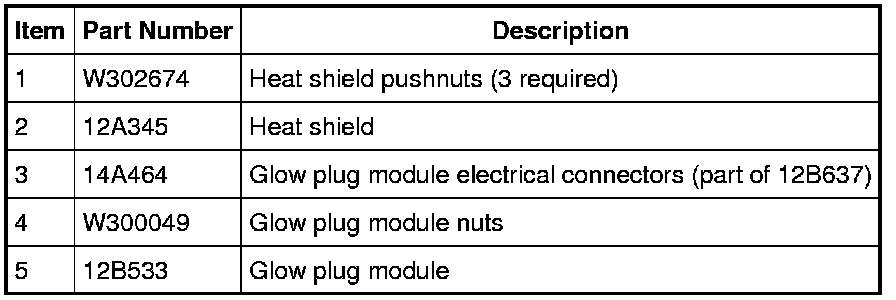

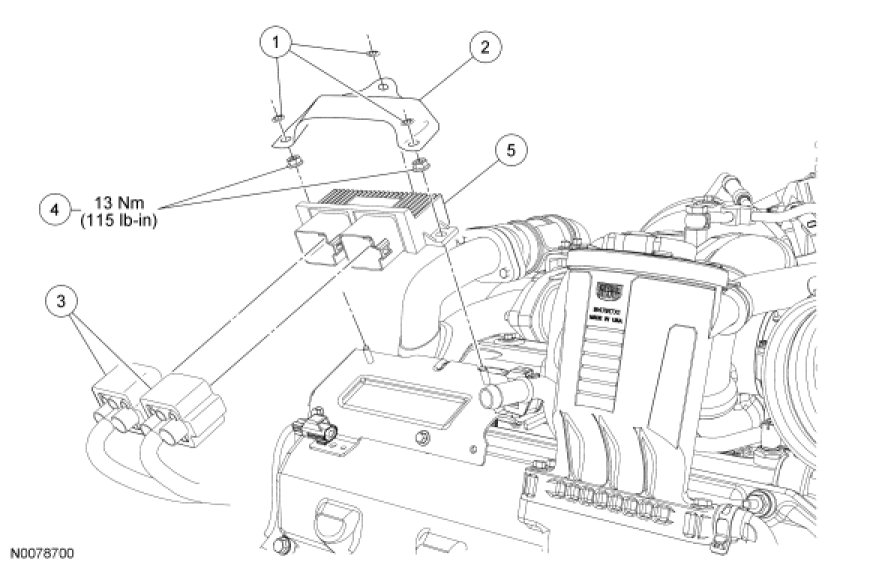

Glow Plug ModuleRemoval and Installation 1.
Remove the 3 pushnuts and the heat shield.
-
Discard the pushnuts.
2.
Disconnect the glow plug module electrical connectors.
3.
Remove the 2 nuts and the glow plug module.
-
To install, tighten to 13 Nm (115 lb-in).
4.
To install, reverse the removal procedure.
-
Use new heat shield pushnuts and install them using a small socket.
