Generator - Dual Generator

Generator - 6.4L Diesel, Dual Generator

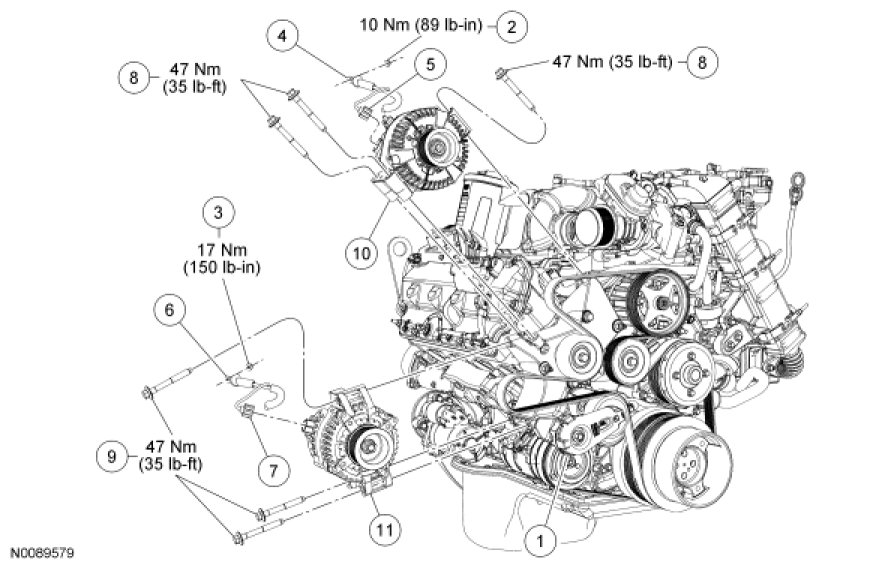

Removal and Installation

NOTE: This procedure applies to the primary (lower) and/or secondary (upper) generator of the dual generator system.

Both generators

1. Disconnect the batteries.

2. Remove the air cleaner assembly.

Primary generator

3. Remove the fender splash shield.

Secondary generator

4. Loosen the RH Charge Air Cooler (CAC) tube clamp at the intake throttle adapter and position the CAC tube aside.
- To install, tighten to 8 Nm (71 lb-in).

Both generators

5. Rotate the accessory drive belt tensioner clockwise and remove the drive belt from the generator pulley.

6. Remove the nut(s) and position the generator B+ terminal(s) aside.
- To install, tighten to 17 Nm (150 lb-in).

7. Disconnect the generator electrical connector.

8. Remove the 2 lower bolts to the generator.
- To install, tighten to 47 Nm (35 lb-ft).

9. Remove the upper bolt and the generator.
- To install, tighten to 47 Nm (35 lb-ft).

10. To install, reverse the removal procedure.
