Air Temperature Sensor ( Ambient / Intake ): Service and Repair




Intake Air Temperature 2 (IAT2) Sensor

Removal and Installation









1. NOTICE: Make sure the ignition switch is in the OFF position prior to working on the electronic engine control or the vehicle may be damaged.

Turn the ignition switch to the OFF position.

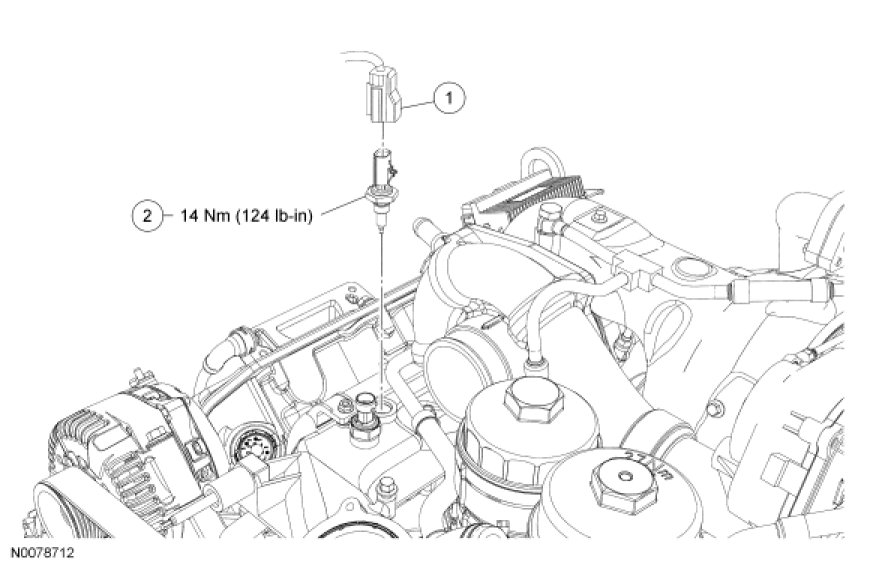

2. Disconnect the Intake Air Temperature 2 (IAT2) electrical connector.

3. Remove the IAT2 sensor.
- To install, tighten to 14 Nm (124 lb-in).

4. To install, reverse the removal procedure.
