Auxiliary Input / Output Jack: Service and Repair

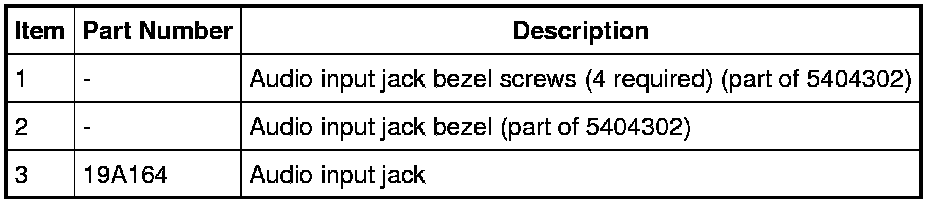

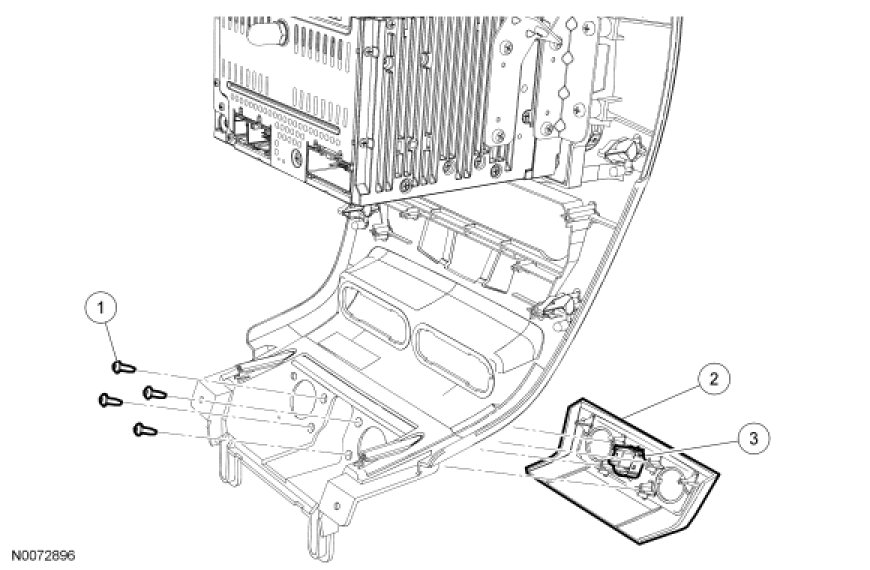

Audio Input JackRemoval and Installation 1.
Remove the instrument panel center finish panel.
2.
Remove the 4 screws and separate the audio input jack bezel from the instrument panel center finish panel.
3.
Release the tabs and remove the audio input jack.
4.
To install, reverse the removal procedure.
