Diagnostic Trouble Code Tests and Associated Procedures
Anti-Lock ControlDTC ChartNOTE: To clear DTCs C1095, C1096, C1148, C1158, C1229 and C1950 and turn off the yellow ABS/red brake warning indicator, cycle the ignition switch, clear the DTCs using the scan tool and then drive the vehicle at least 10 km/h (6 mph). This will allow the ABS module to confirm normal operation of the system.

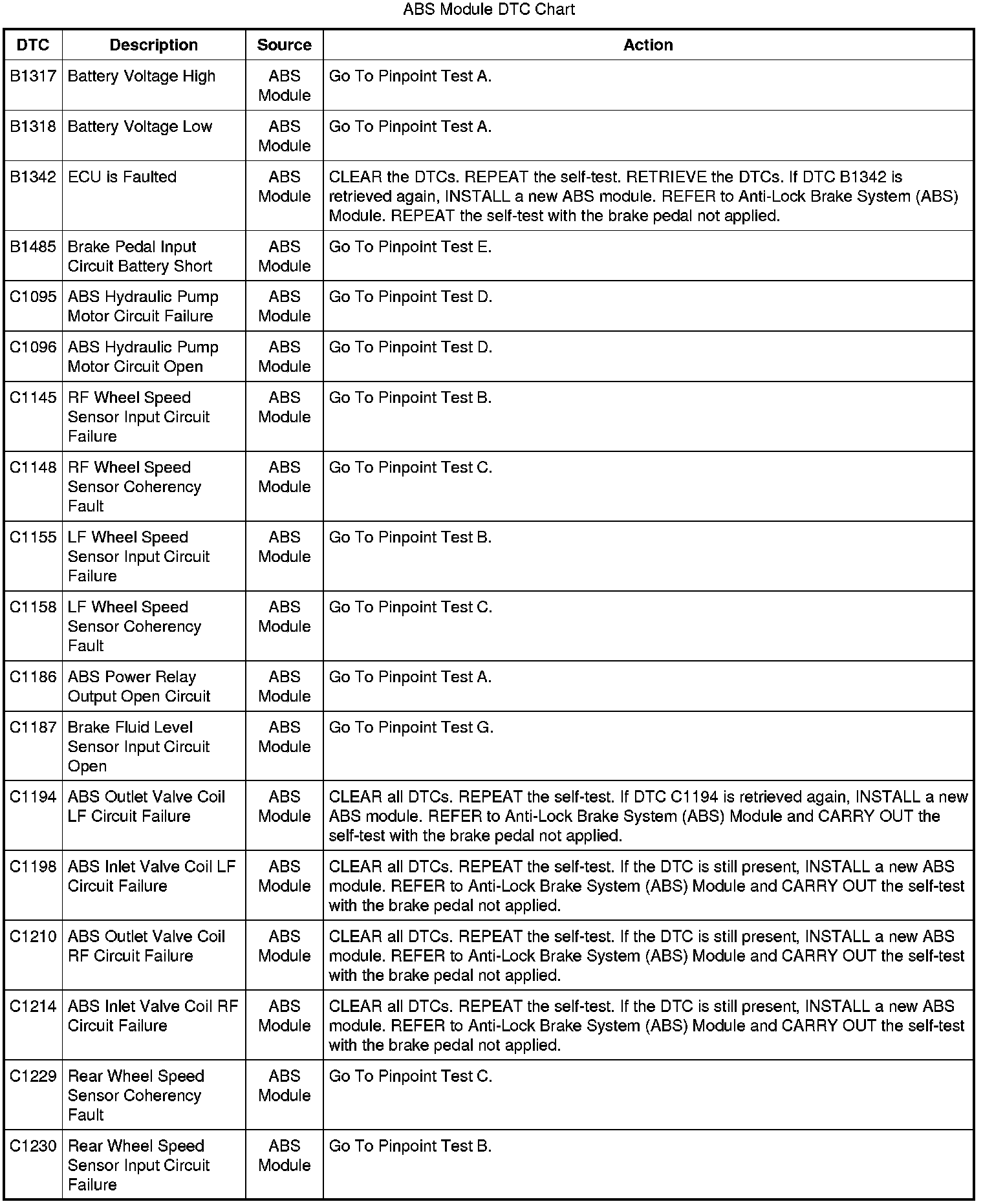

B1317-B1485 / C1095-C1230:

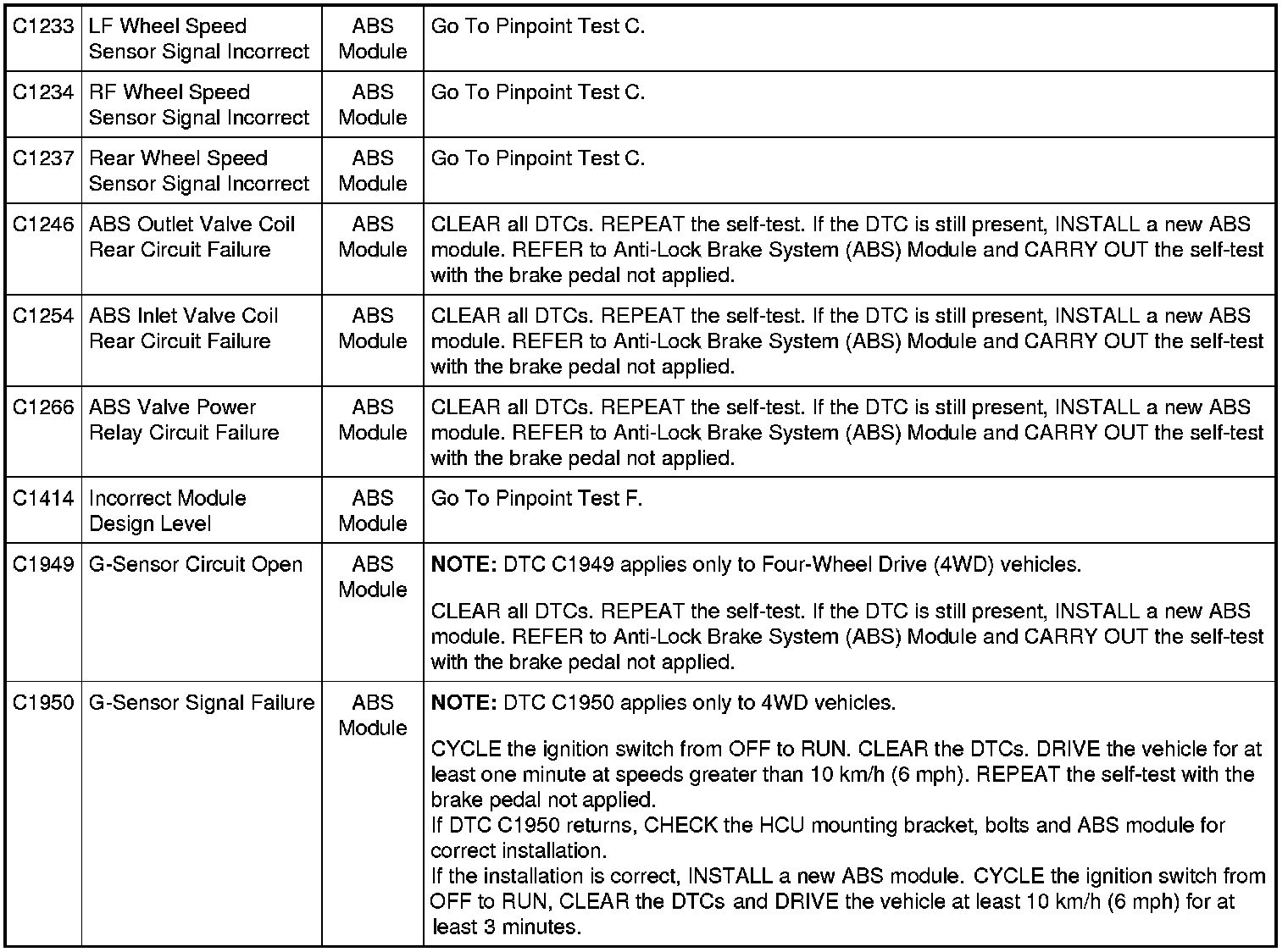

C1233-C1950:
