Cruise Control Servo: Service and Repair




Speed Control Actuator









Removal and Installation

1. Disconnect the speed control actuator electrical connector.

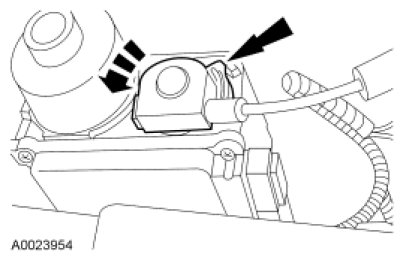

2. Remove the speed control cable cap from the speed control actuator.
- Push in the locking arm on the speed control cable cap and rotate the cap counterclockwise.





3. Remove the speed control cable.

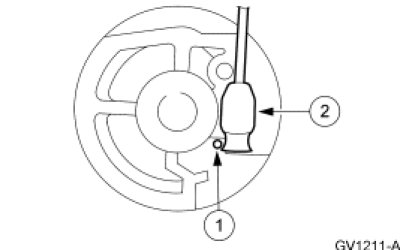

1. Press the spring retainer.

2. Slide the core wire end out of the speed control actuator pulley and remove the speed control cable.

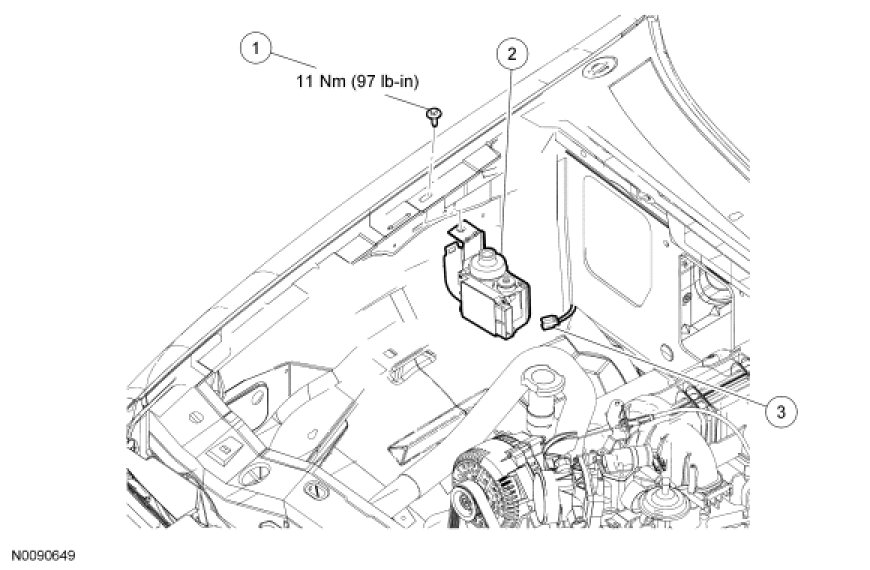

4. Remove the bolt and the speed control actuator and bracket assembly.
- To install, tighten to 11 Nm (97 lb-in).

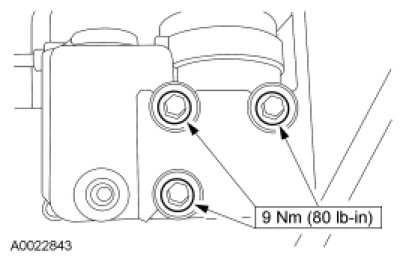

5. Remove the 3 bolts and separate the speed control actuator bracket from the speed control actuator.
- To install, tighten to 9 Nm (80 lb-in).





6. NOTE: Make sure the rubber seal is fully seated onto the speed control cable cap.

To install, reverse the removal procedure.
