Ignition Switch: Service and Repair




Ignition Switch

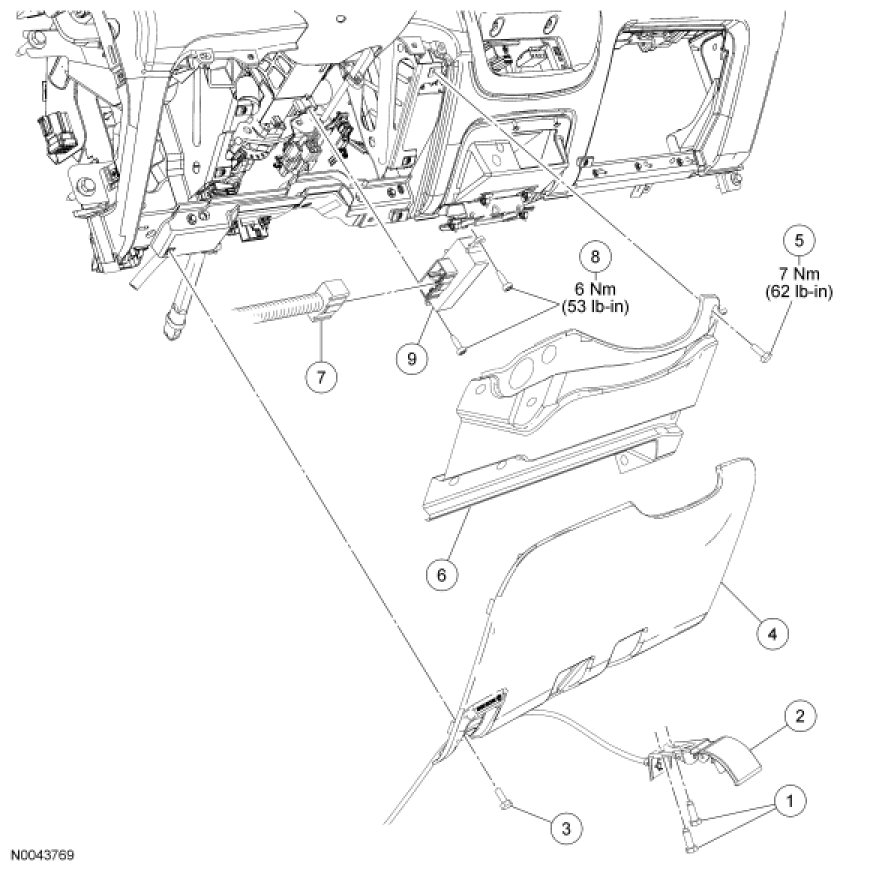

Removal and Installation

1. Depower the Supplemental Restraint System (SRS). For additional information, refer to Air Bag Systems.

2. Remove the 2 bolts and position the hood latch release handle aside.

3. Remove the 2 bolts and the steering column opening cover.

4. Remove the 5 steering column opening cover reinforcement bolts and the reinforcement.
- To install, tighten to 7 Nm (62 lb-in).

5. Disconnect the ignition switch electrical connector.

6. NOTE: The ignition switch should be in the OFF position.

Remove the 2 ignition switch screws and the ignition switch.

- To install, tighten to 6 Nm (53 lb-in).

7. To install, reverse the removal procedure.

8. Repower the SRS. For additional information, refer to Air Bag Systems.
