Diagnostic Trouble Code Tests and Associated Procedures

Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS)

DTC Charts

The DTCs can be retrieved from the Restraints Control Module (RCM) and the Occupant Classification System Module (OCSM) with a scan tool via the DLC.

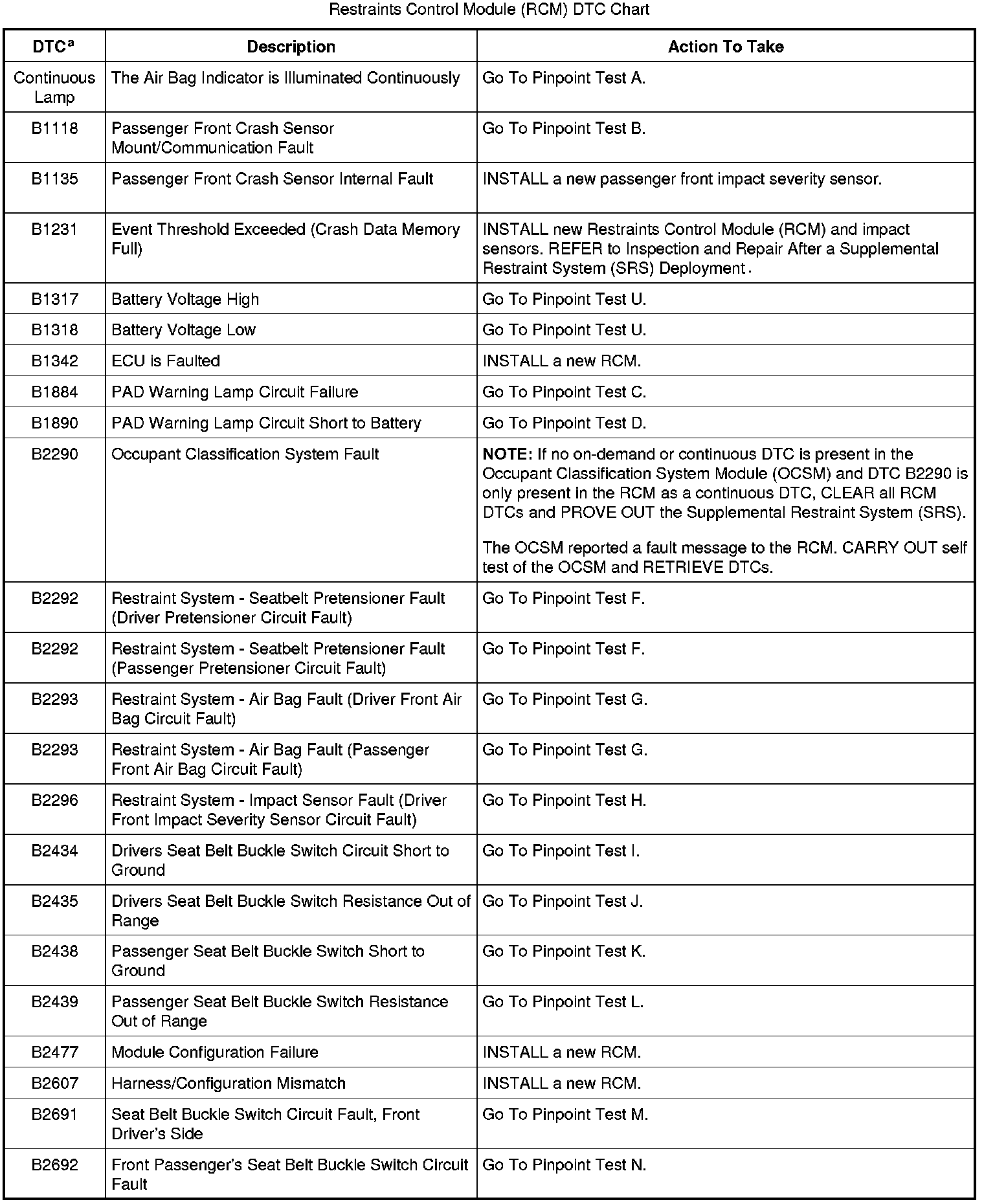

B1118-B2692:

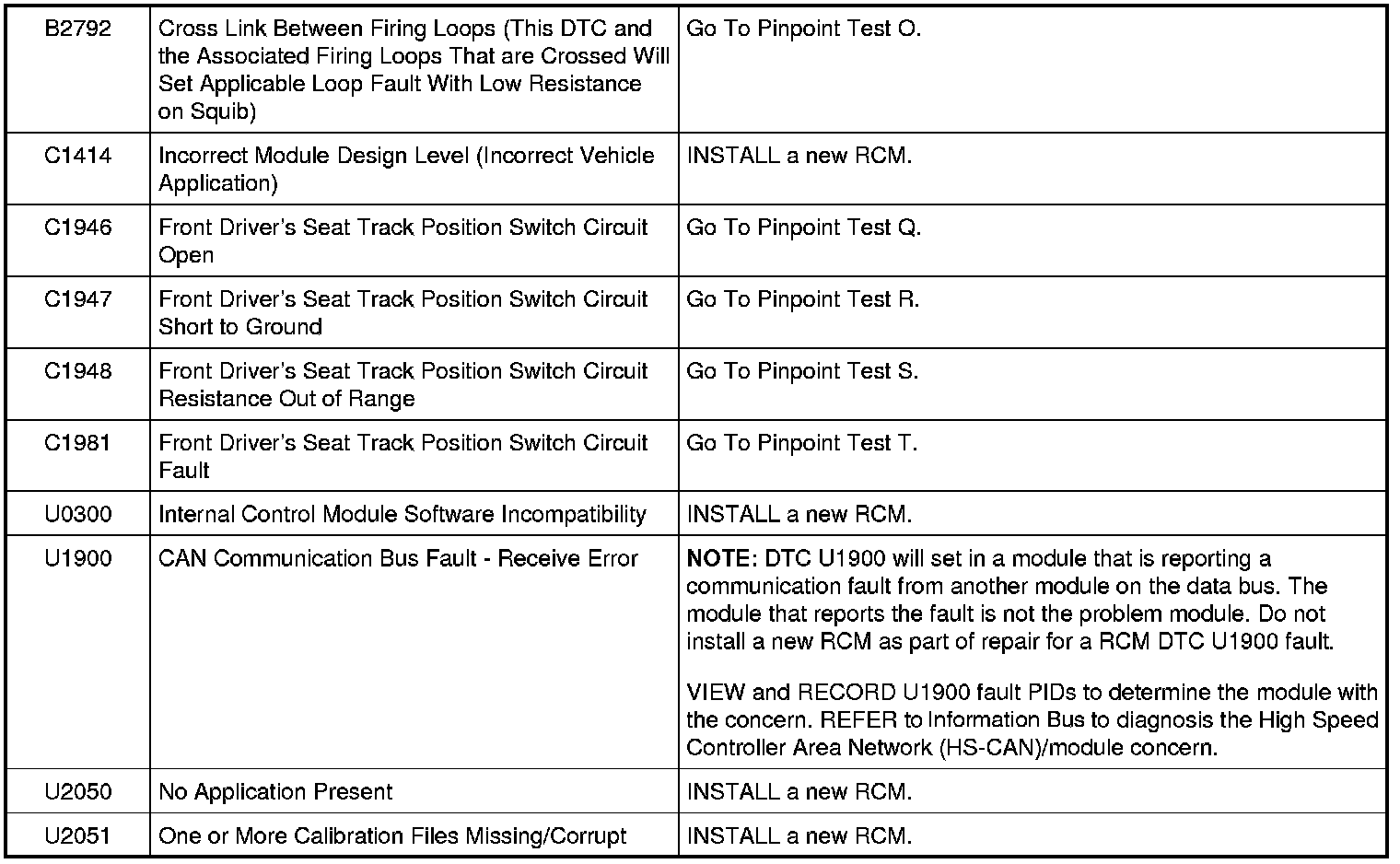

B2792 / C1414-C1981 / U0300-U2051:

a DTC: Retrieved using scan tool.

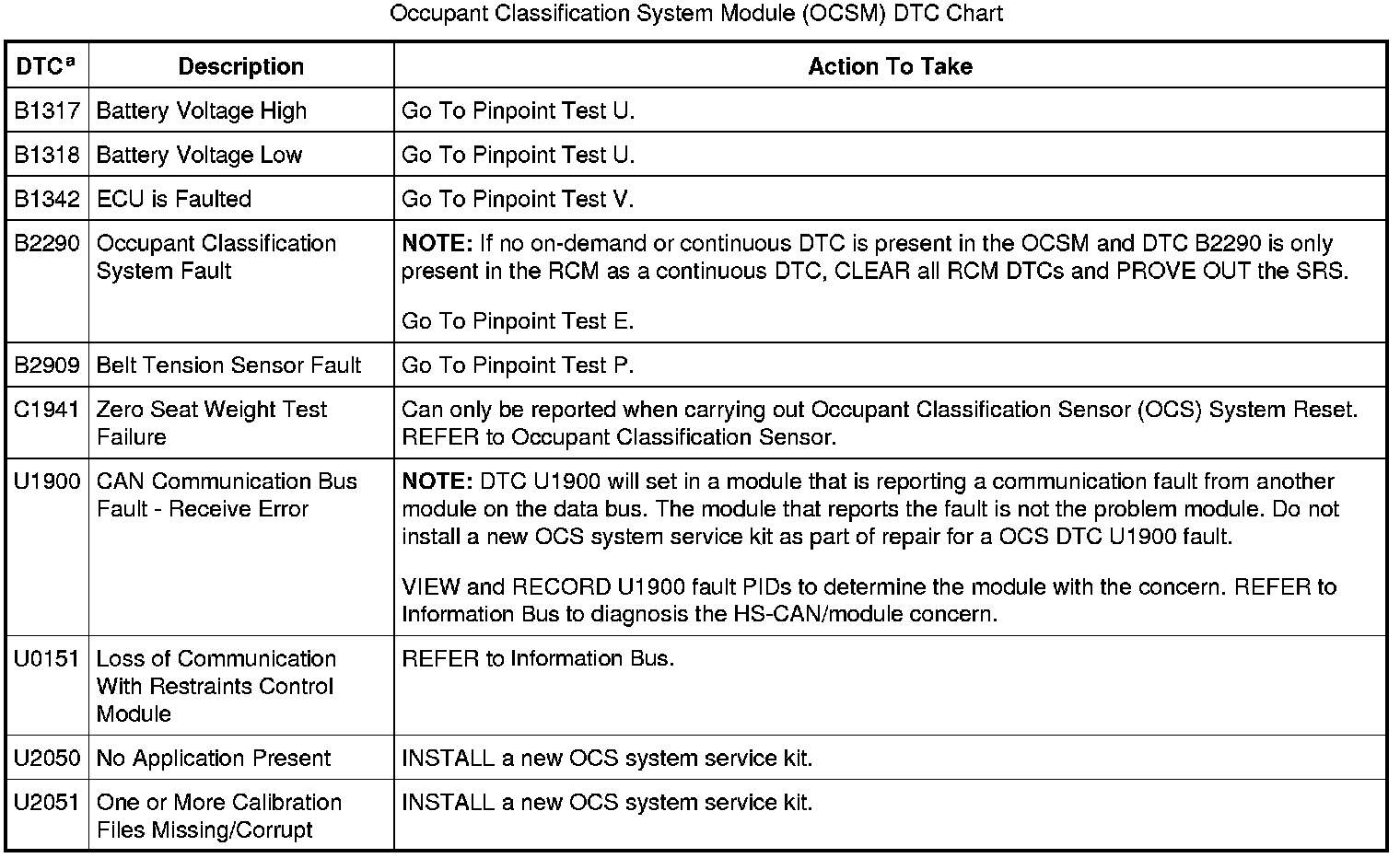

B1317-B2909 / C1941 / U1900-U2051:

a DTC: Retrieved using scan tool.
