Harmonic Balancer - Crankshaft Pulley

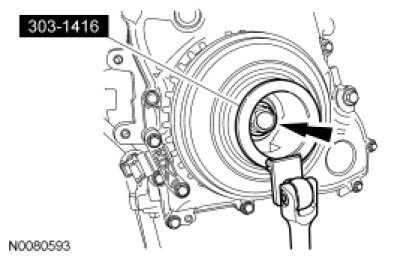

Install a new crankshaft pulley bolt. Using the Crankshaft Damper Holding Tool and a suitable 1/2-in drive hand tool to hold the crankshaft pulley in place, tighten the crankshaft pulley bolt in 2 stages:
Stage 1: Tighten to
100 Nm (74 lb-ft).
Stage 2: Rotate an additional
90 degrees.
