Automatic Transmission/Transaxle: Application and ID

5R44E and 5R55E

Identification Tags

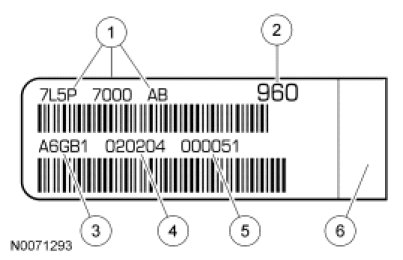

Identification Tag Located on Transmission Case

All vehicles are equipped with a Vehicle Certification (VC) label, located on the driver side door lock post. Refer to the code in the space marked TR. For service identification level or build date information, refer to the transmission service identification tag located on the transmission case.
