Transmission Fluid Drain and Refill




5R44E and 5R55E

Transmission Fluid Drain and Refill






Drain

NOTICE: Use only transmission fluid. Do not use any supplemental transmission fluid additives, treatments or cleaning agents. The use of these materials may affect the operation of the transmission, resulting in internal component failure.

1. With the vehicle in PARK, position it on a hoist.

2. NOTE: If equipped, the transmission servo heat shield must be unclipped from the transmission fluid pan rail and positioned aside for transmission fluid pan removal.

If equipped, loosen the nut and position the heat shield aside.





3. Place a drain pan under the transmission fluid pan.

4. Drain transmission fluid.
- Remove all the transmission fluid pan screws except for 2 in the front. Loosen the 2 front transmission fluid pan screws. Pry the rear of the transmission fluid pan down and allow fluid to drain. After fluid is drained, remove the front 2 transmission fluid pan screws.





5. NOTE: The transmission fluid pan gasket is reusable. Clean and inspect for damage, if not damaged, the gasket should be reused.

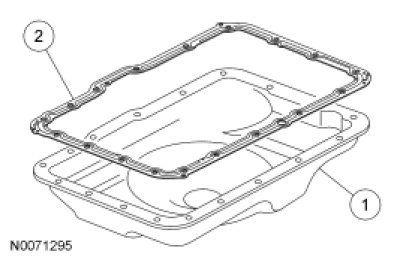

Remove the transmission fluid pan.

1. Remove the transmission fluid pan.

2. Remove the transmission fluid pan gasket.





6. Clean and inspect the transmission fluid pan and magnet. Clean all mating surfaces.






Refill

1. NOTE: The transmission fluid pan gasket is reusable. Clean and inspect for damage, if not damaged, the gasket should be reused.

Install the transmission fluid pan.

1. Position the transmission fluid pan gasket on the transmission fluid pan.

2. Install and align the transmission fluid pan.





2. Loosely install the transmission fluid pan screws.





3. Tighten the transmission fluid pan screws in a crisscross sequence.
- Tighten to 10 Nm (89 lb-in).





4. If equipped, position the servo heat shield over the servos and clip it to the pan rail.
- Tighten to 10 Nm (89 lb-in).





5. Lower the vehicle.

6. NOTE: When filling a dry transmission and converter, start with a minimum of 3.7L (4 qt).

With the engine running and the transmission at normal operating temperature 66-77°C (150-170°F), check and adjust the transmission fluid level and check for any leaks. If transmission fluid is needed, add transmission fluid in increments of 0.24L (0.5 pt) until the correct level is achieved (fluid should be in the cross-hatched area of the transmission fluid level indicator).

7. Apply the park brake and start the engine.

8. Move the selector lever through all the gears.

9. Check the transmission fluid level.
