Heat Shield




5R44E and 5R55E

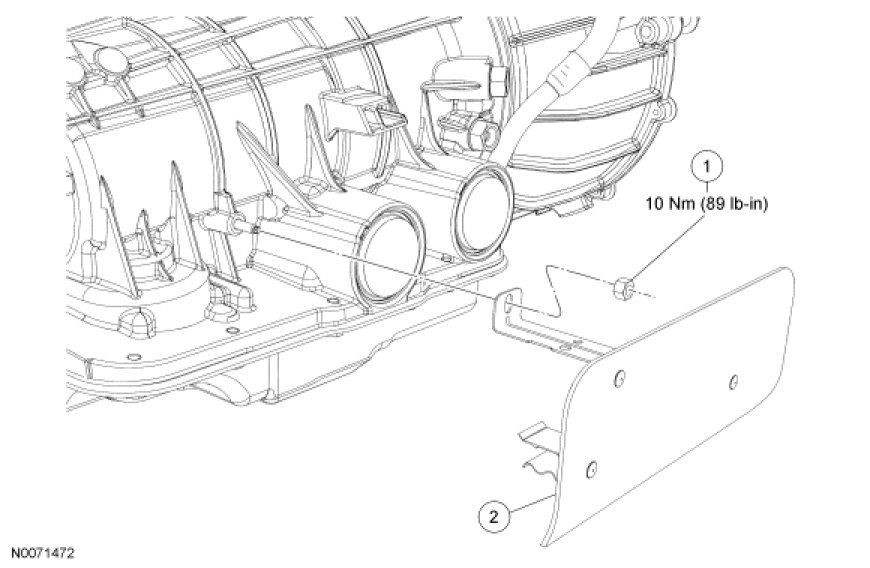

Heat Shield

Heat Shield









Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

2. NOTE: If equipped, the transmission servo heat shield needs to be unclipped from the transmission fluid pan rail and positioned aside for transmission fluid pan removal.

If equipped, loosen the nut and position the heat shield aside.

3. If equipped, position the servo heat shield over the servos and clip it to the pan rail.
- Tighten to 10 Nm (89 lb-in).
