Output Shaft Speed (OSS) Sensor




5R44E and 5R55E

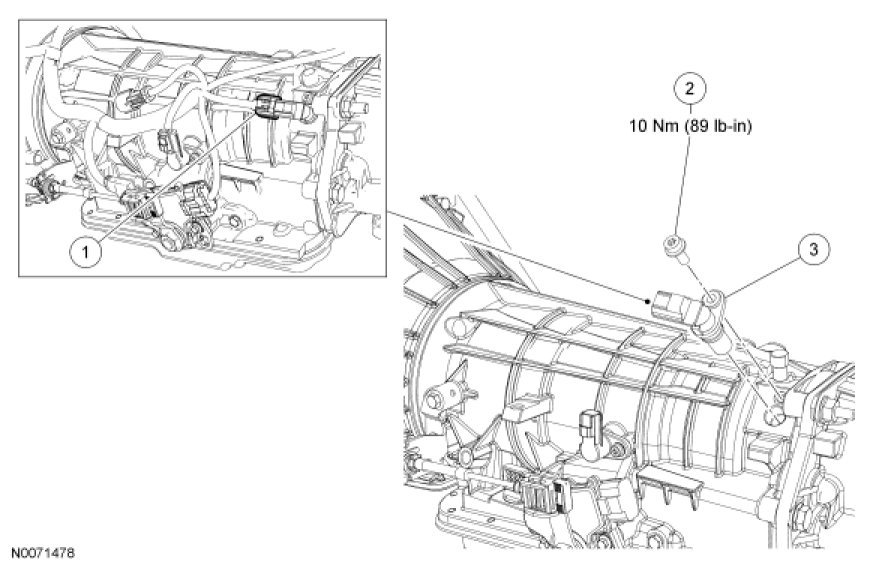

Output Shaft Speed (OSS) Sensor

Output Shaft Speed (OSS) Sensor









Removal

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Disconnect the Output Shaft Speed (OSS) sensor electrical connector.

3. Remove the OSS sensor screw.

4. Remove the OSS sensor from the transmission.

Installation

1. NOTE: Inspect the OSS sensor O-ring for damage. If damaged, install a new O-ring.

Inspect and lubricate the O-ring with petroleum jelly.

Install the OSS sensor into the transmission.

2. Install the OSS sensor screw.
- Tighten to 10 Nm (89 lb-in).

3. Connect the OSS sensor electrical connector.
