Test AF: Glow Plug System

PINPOINT TEST AF: GLOW PLUG SYSTEM

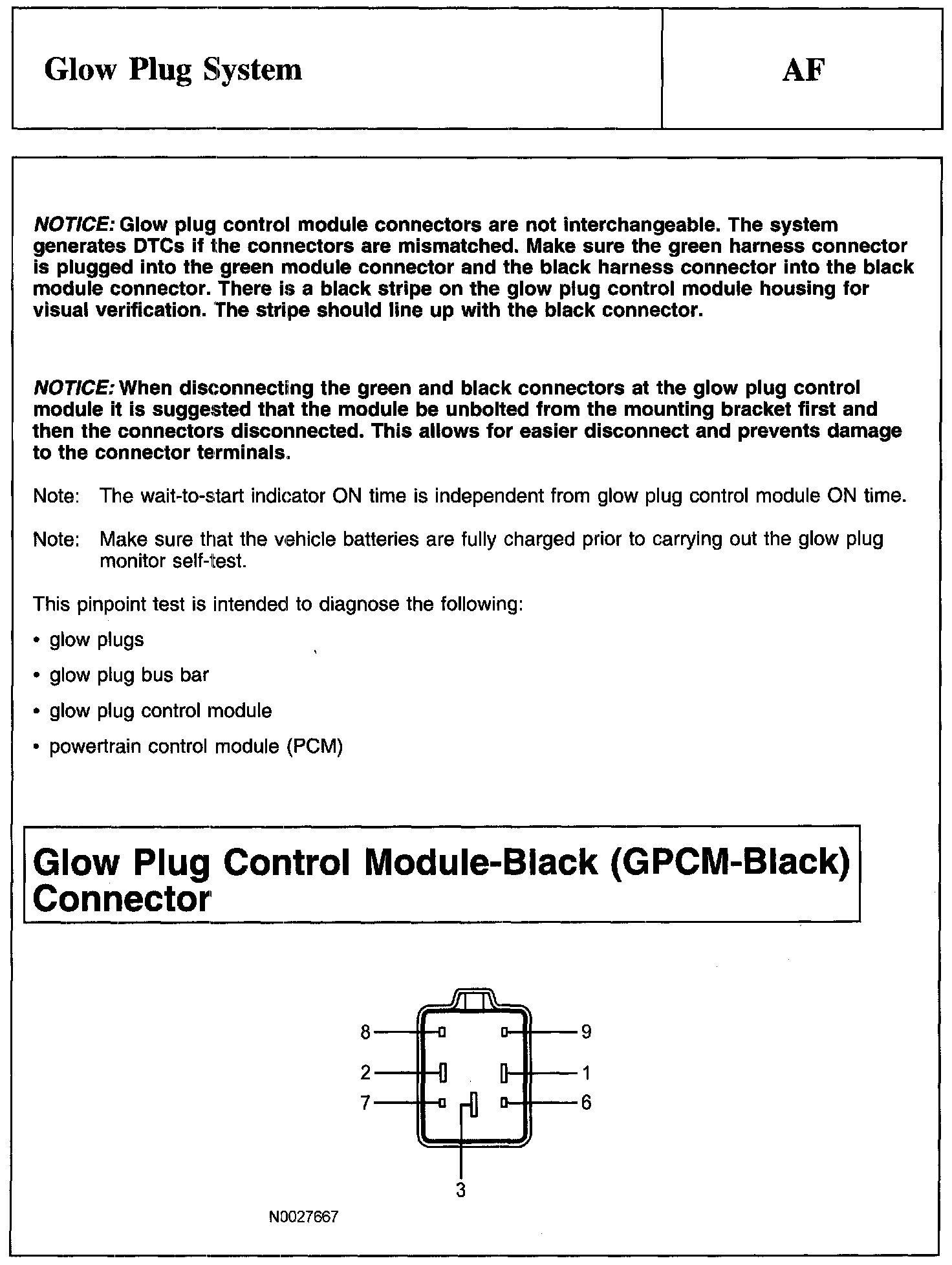

Notice, Note And Glow Plug Control Module-Black (GPCM-Black) Connector:

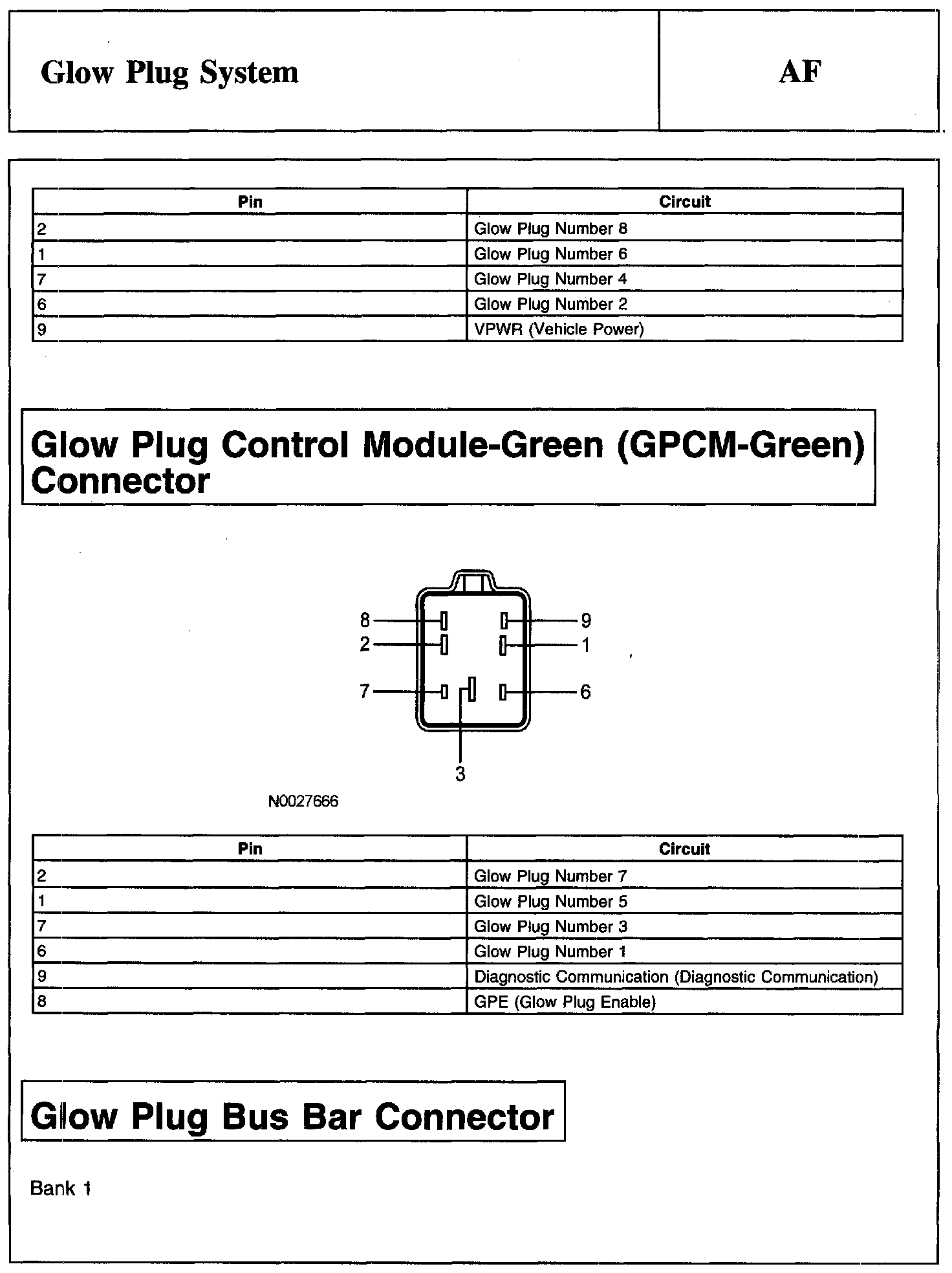

Glow Plug Control Module-Black (GPCM-Black) Connector, Glow Plug Control Module-Green (GPCM-Green) Connector, Glow Plug Bus Bar Connector:

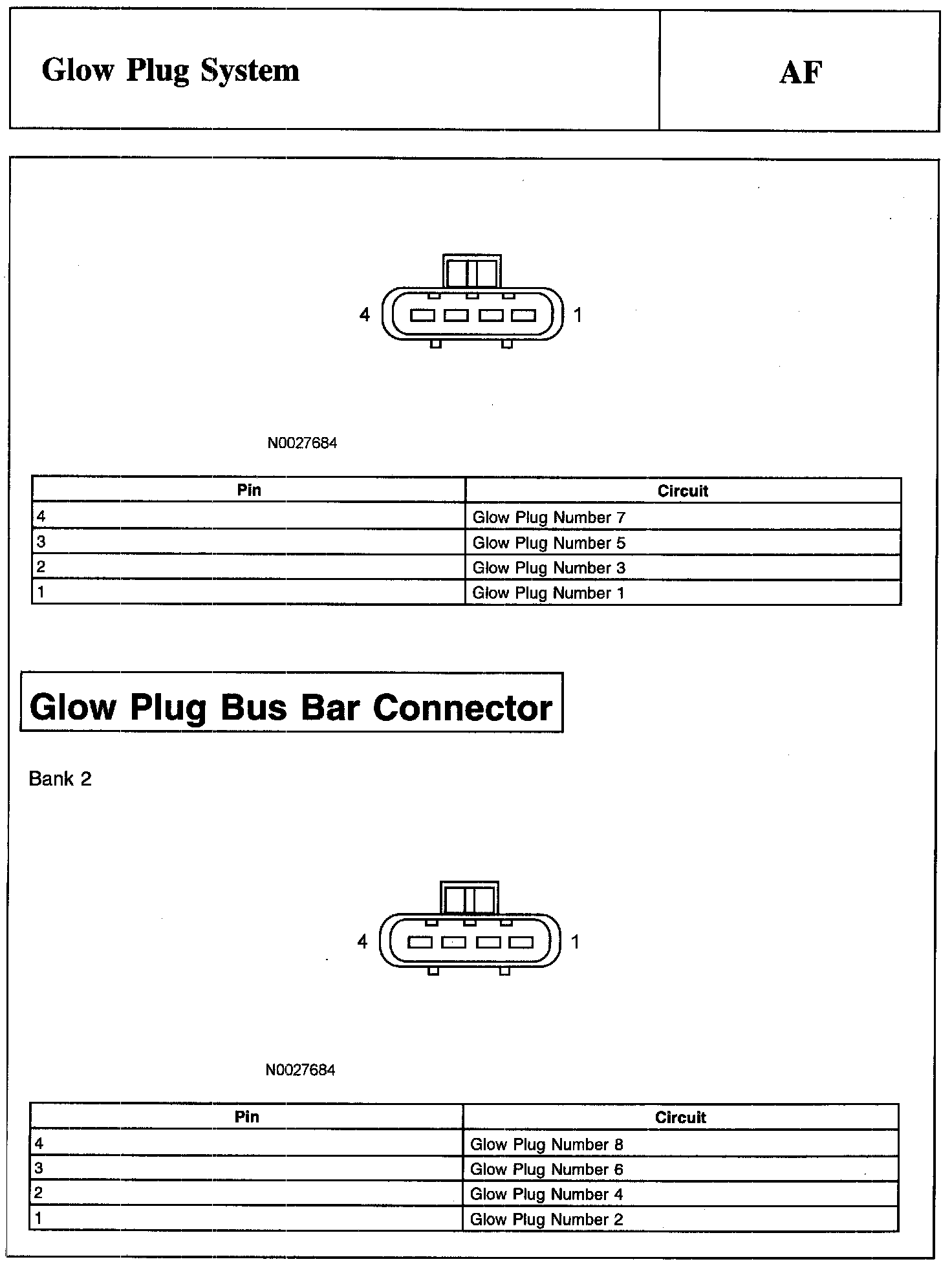

Glow Plug Bus Bar Connector:

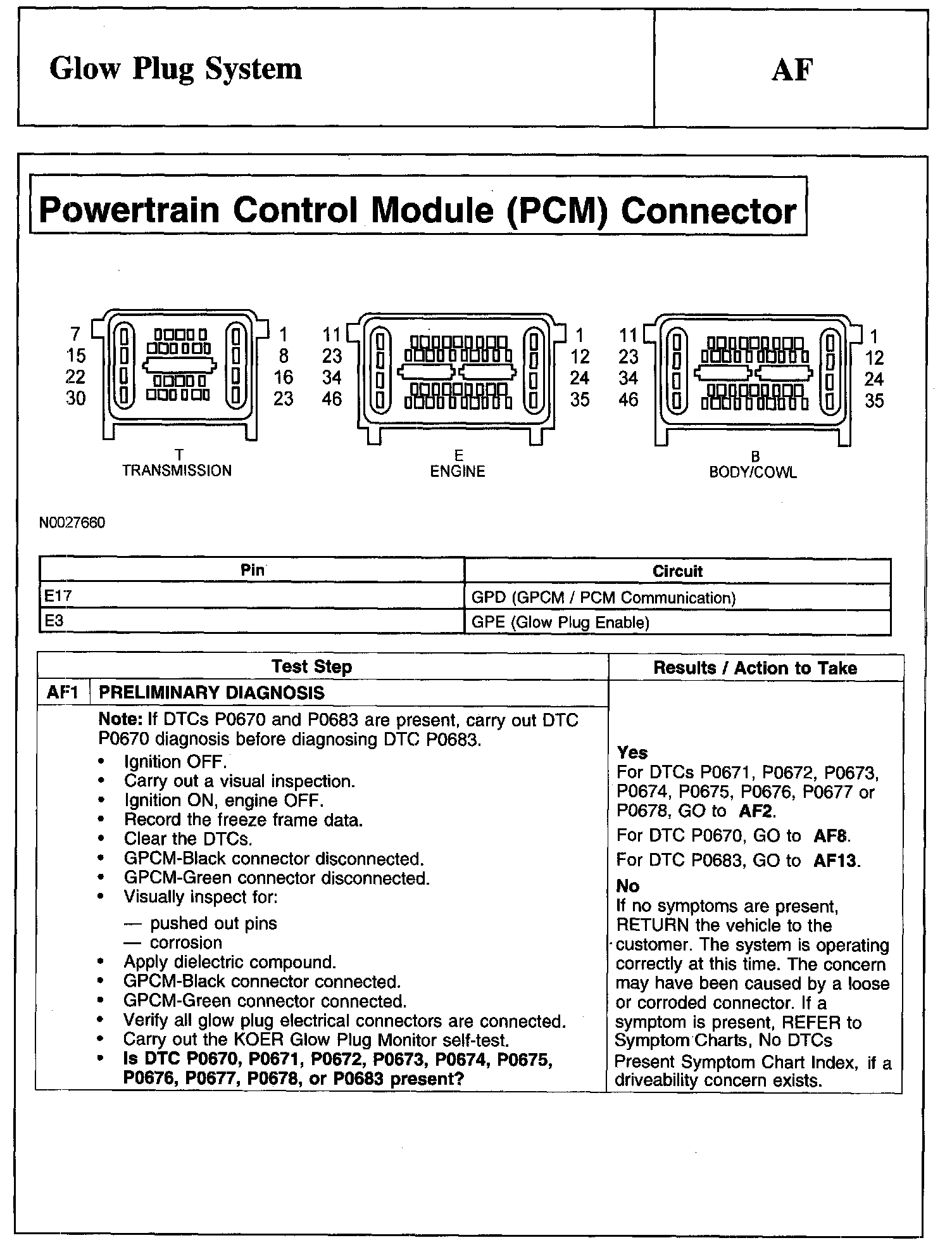

AF1:

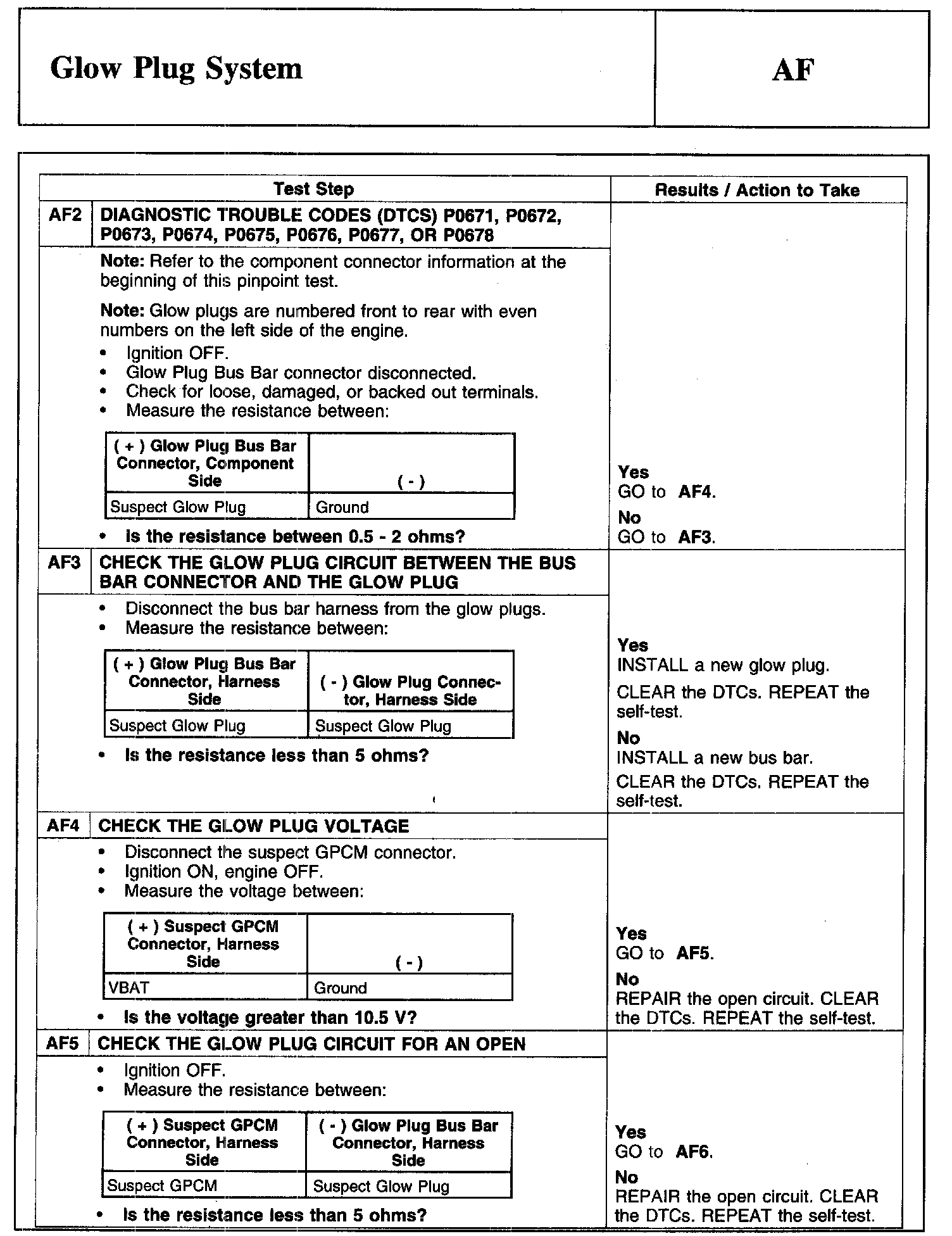

AF2-AF5:

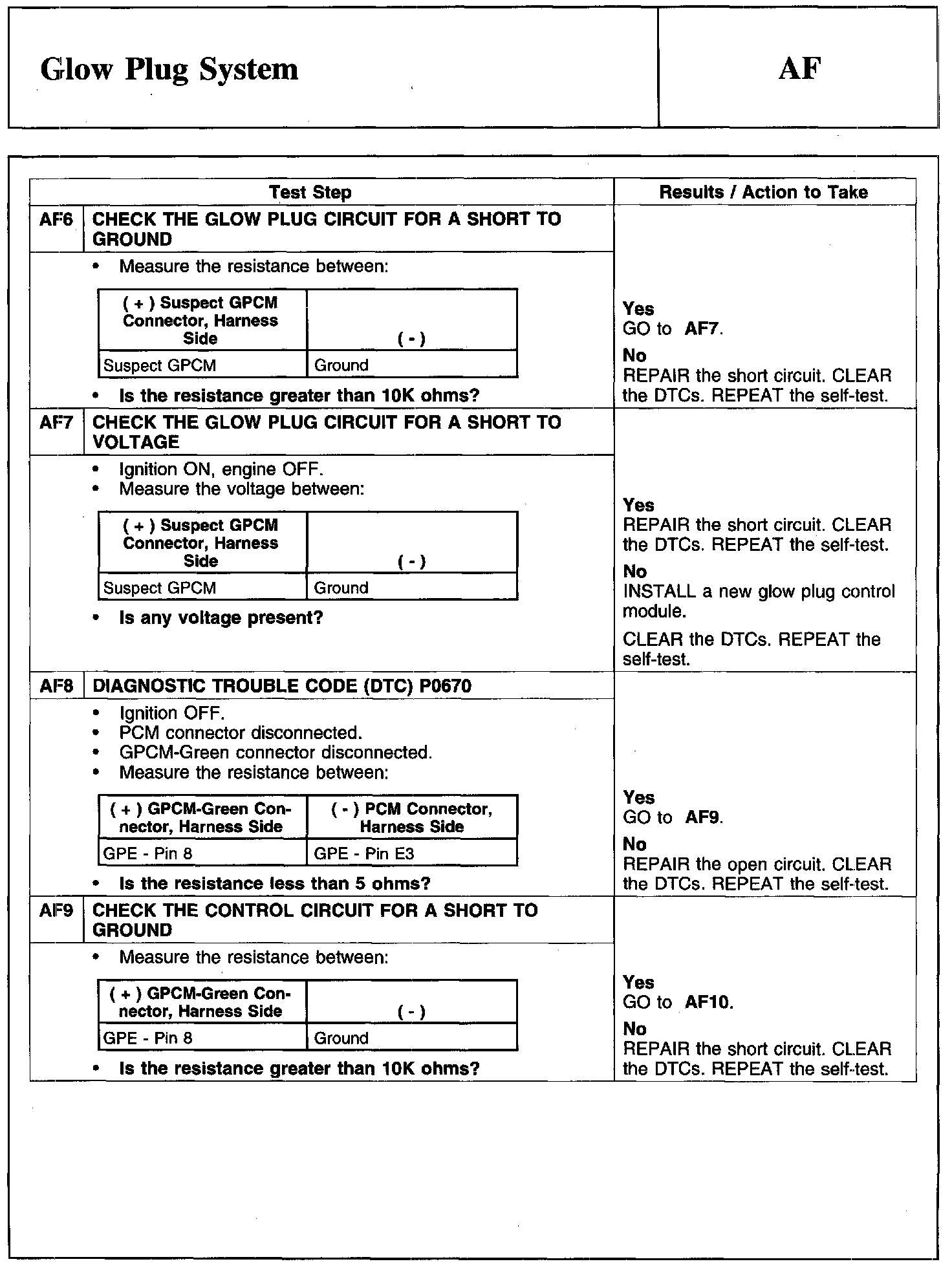

AF6-AF9:






AF10-AF13:

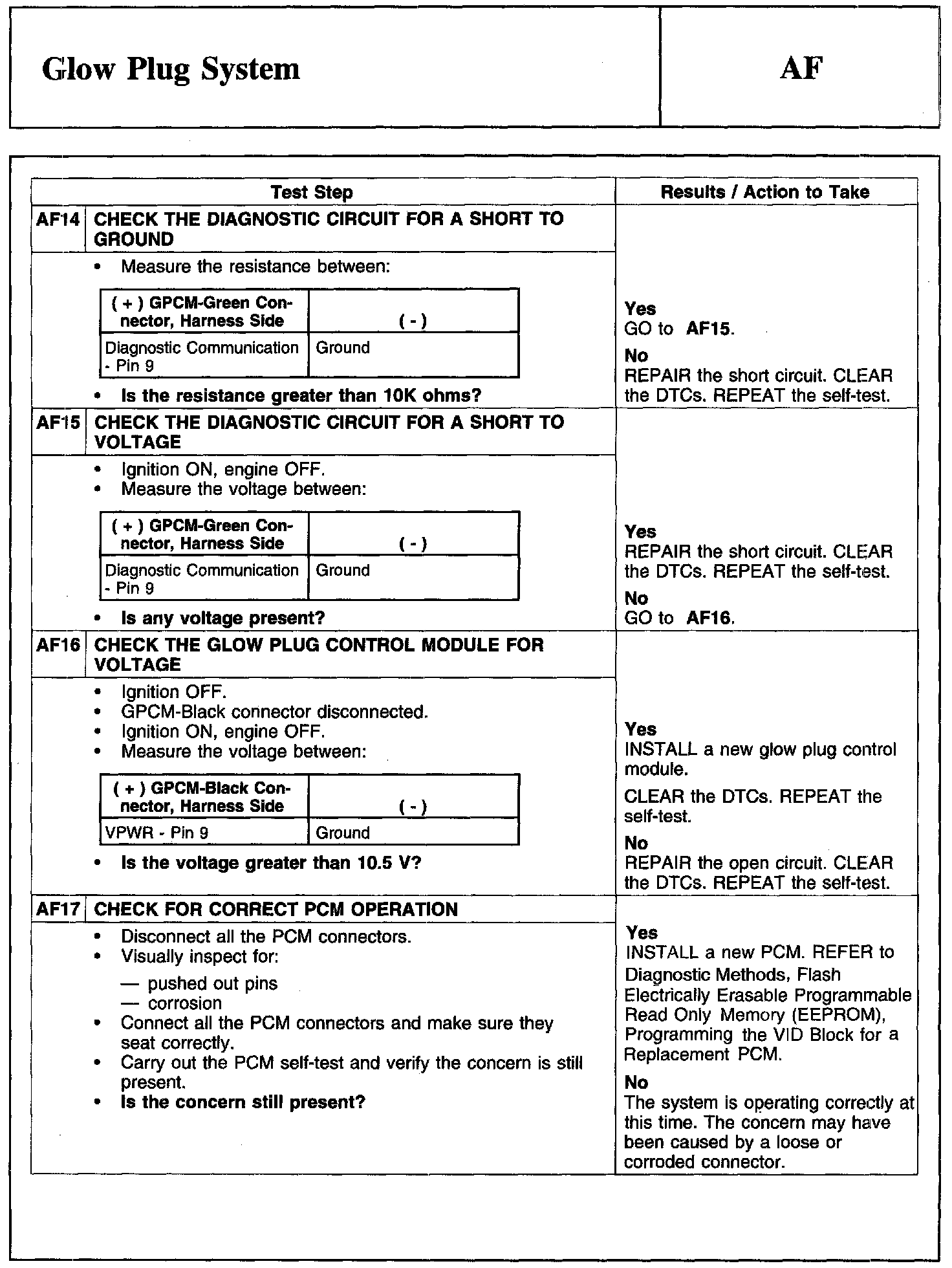

AF14-AF17:
